Rear Seat Heater Control Module Replacement

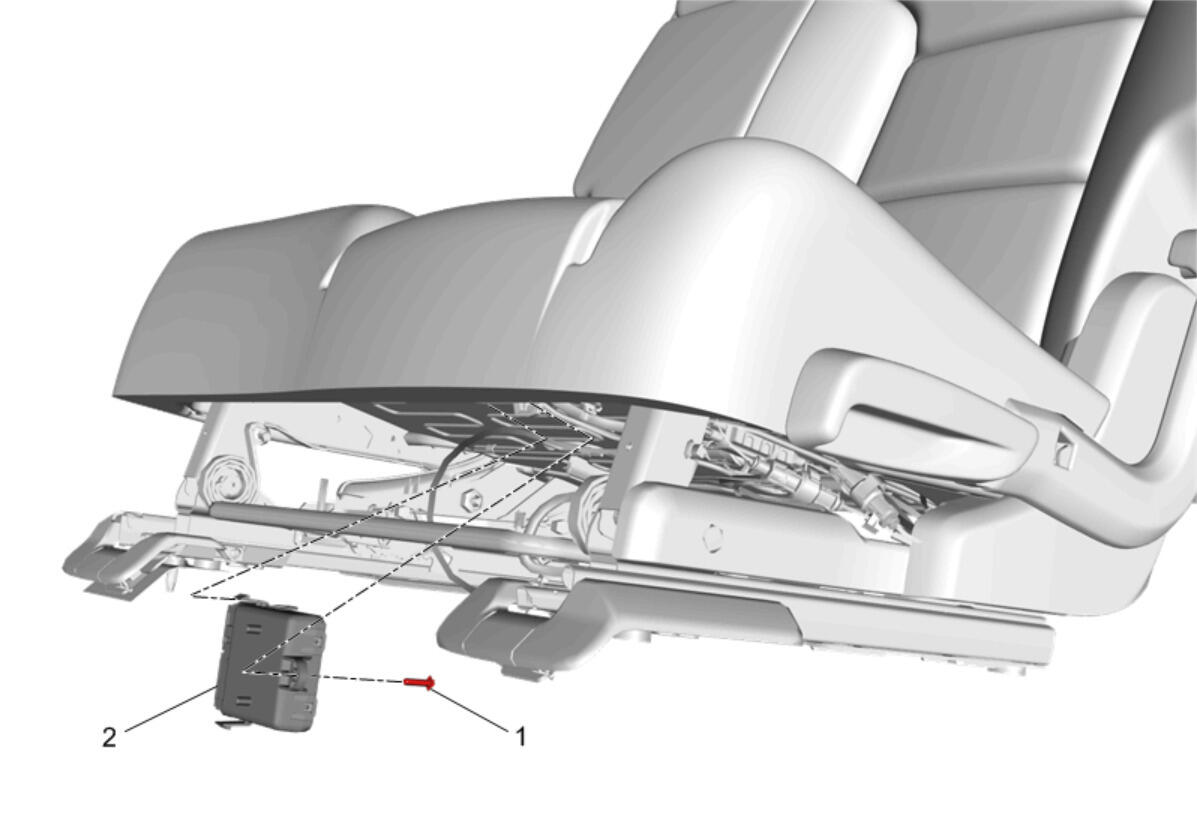

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Seat Removal and Installation (40%)Rear Seat Removal and Installation (60%)Rear Seat Removal and Installation (Bucket) |
|
| 1 | Rear Seat Heater Control Module Fastener
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Seat Heater Control Module Procedure
|
