Body Control Module Replacement

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

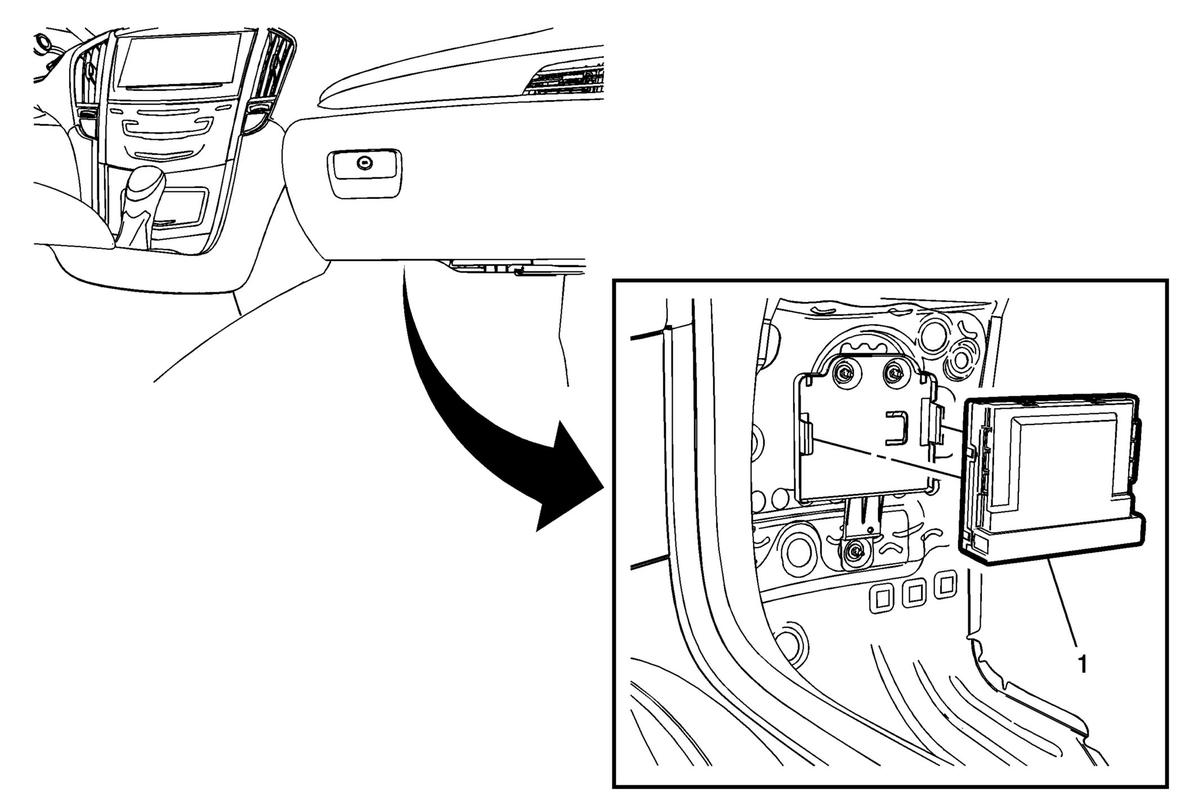

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim panel insulator - right side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement (Left Side)Instrument Panel Lower Trim Panel Insulator Replacement (Right Side) .
1	Body Control Module Procedure Disconnect the electrical connectors. Push tabs to release the body control module from the bracket. Reprogram the module if replaced. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the instrument panel lower trim panel insulator - right side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement (Left Side)Instrument Panel Lower Trim Panel Insulator Replacement (Right Side) .

Body Control Module

Procedure

Disconnect the electrical connectors.
Push tabs to release the body control module from the bracket.
Reprogram the module if replaced. Refer to Control Module References .
