Outside Rearview Mirror Folding Control Module Replacement
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

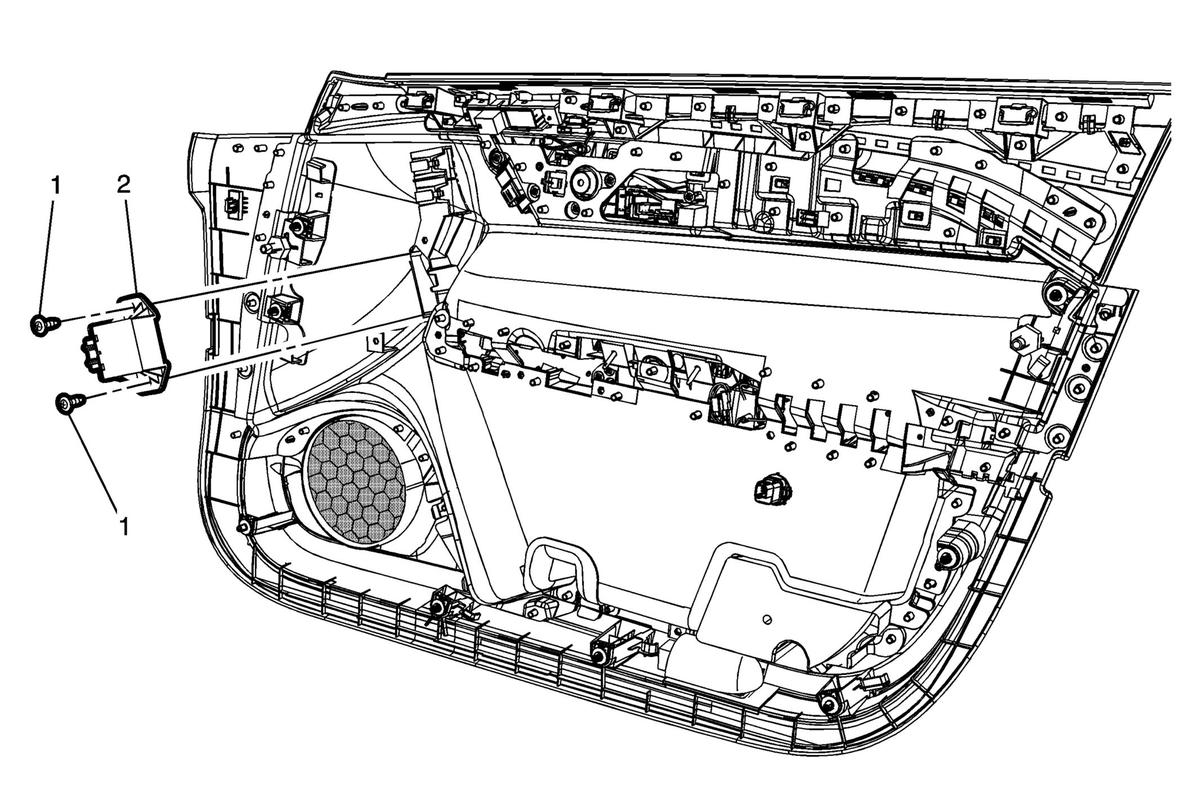

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Replacement (Sedan)Front Side Door Trim Replacement (Coupe) . |
|
| 1 | Outside Rearview Mirror Folding Control Module Bolts (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Outside Rearview Mirror Folding Control Module Procedure Disconnect electrical connector. |
