Forward Range Radar Bracket Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

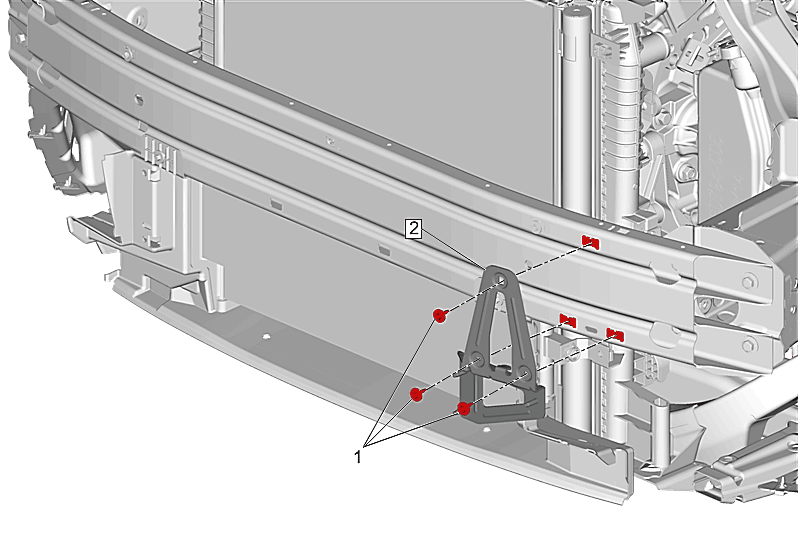

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement |
|
| 1 | Forward Range Radar Bracket Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution Tighten 2.5 N.m (22 lb in) |
| 2 | Forward Range Radar Bracket |
