Forward Range Radar Sensor Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

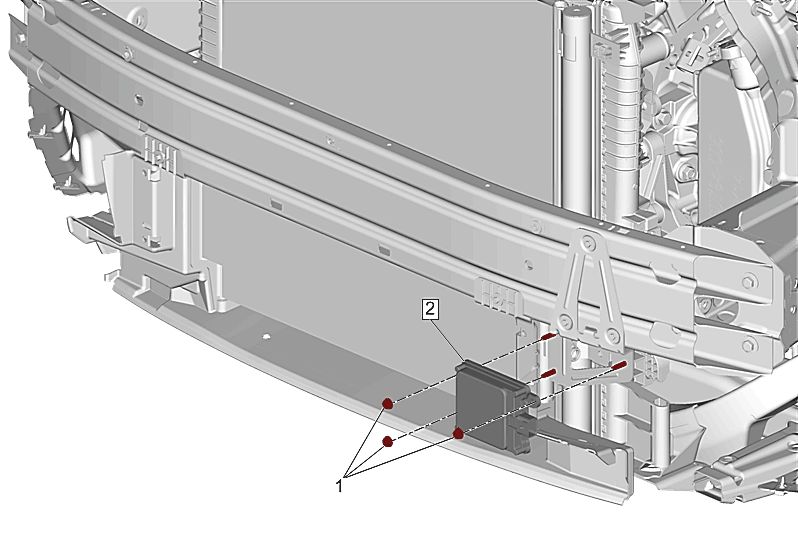

Fig 1: Forward Range Radar Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement
1	Forward Range Radar Sensor Fastener (Qty: 3) CAUTION: Refer to Fastener Caution Tighten 9 N.m (80 lb in)
2	Forward Range Radar Sensor Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement

Forward Range Radar Sensor Fastener (Qty: 3)

CAUTION:

Refer to Fastener Caution

Tighten
9 N.m (80 lb in)

Forward Range Radar Sensor

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure: Control Module References
