Rearview Driver Information Camera Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

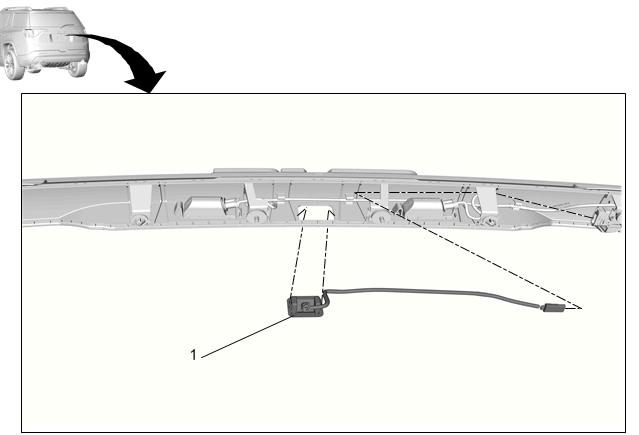

Fig 1: Rearview Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Closure Center with License Plate Applique. Refer to Rear Closure Center with License Plate Applique Replacement
1	Rearview Camera Procedure Disconnect the electrical connector. Depress the clip tabs and push outward to remove the rearview camera from the applique.

Callout

Component Name

Preliminary Procedure
Remove Rear Closure Center with License Plate Applique. Refer to Rear Closure Center with License Plate Applique Replacement

Rearview Camera

Procedure

Disconnect the electrical connector.
Depress the clip tabs and push outward to remove the rearview camera from the applique.
