Human Machine Interface Control Module Replacement

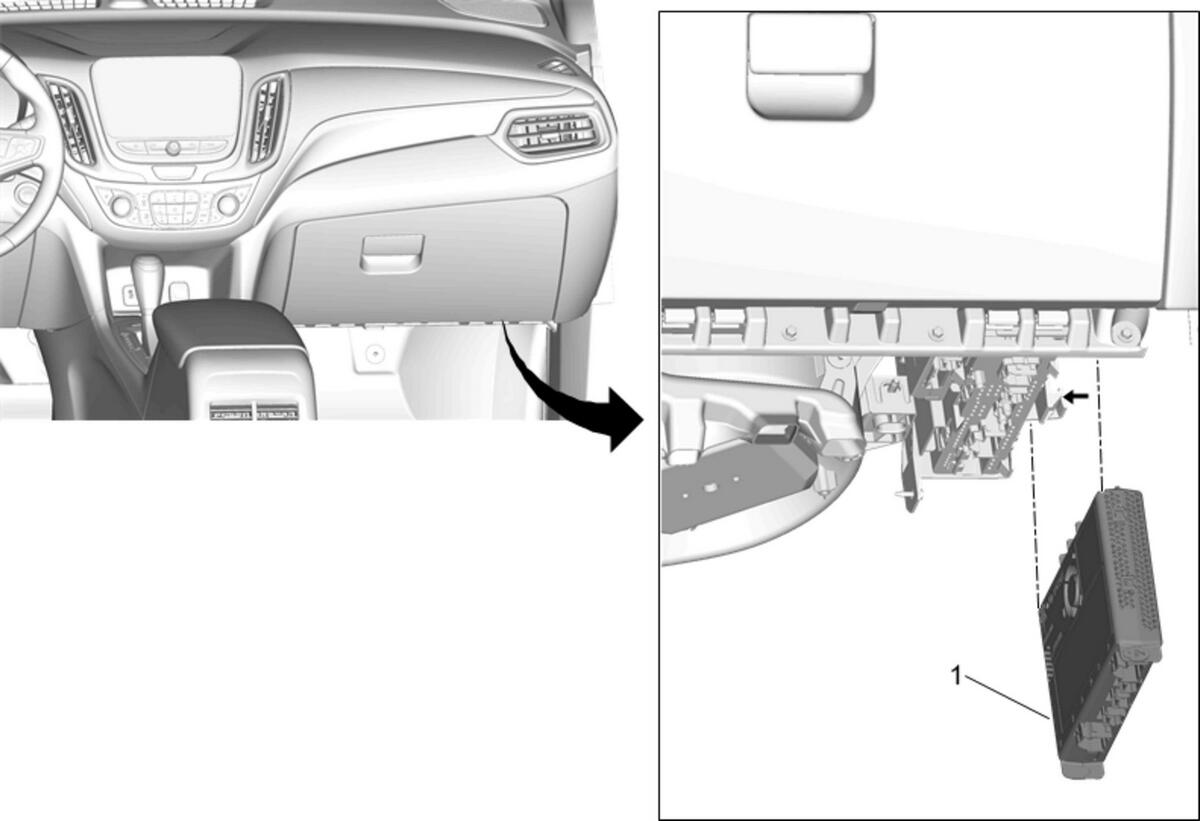

Fig 1: Human Machine Interface Control Module

GM4578459

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the front side door sill garnish molding - right side. Front Side Door Sill Garnish Molding Replacement (Equinox)Front Side Door Sill Garnish Molding Replacement (Terrain)
Reposition the front floor panel carpet as necessary.

1

Human Machine Interface Control Module

Procedure

Disconnect the electrical connectors.
Release the retaining tab.
Perform the necessary programming and setup procedure:Control Module References
