Ignition Lock Key Transmitter Antenna Bracket Replacement

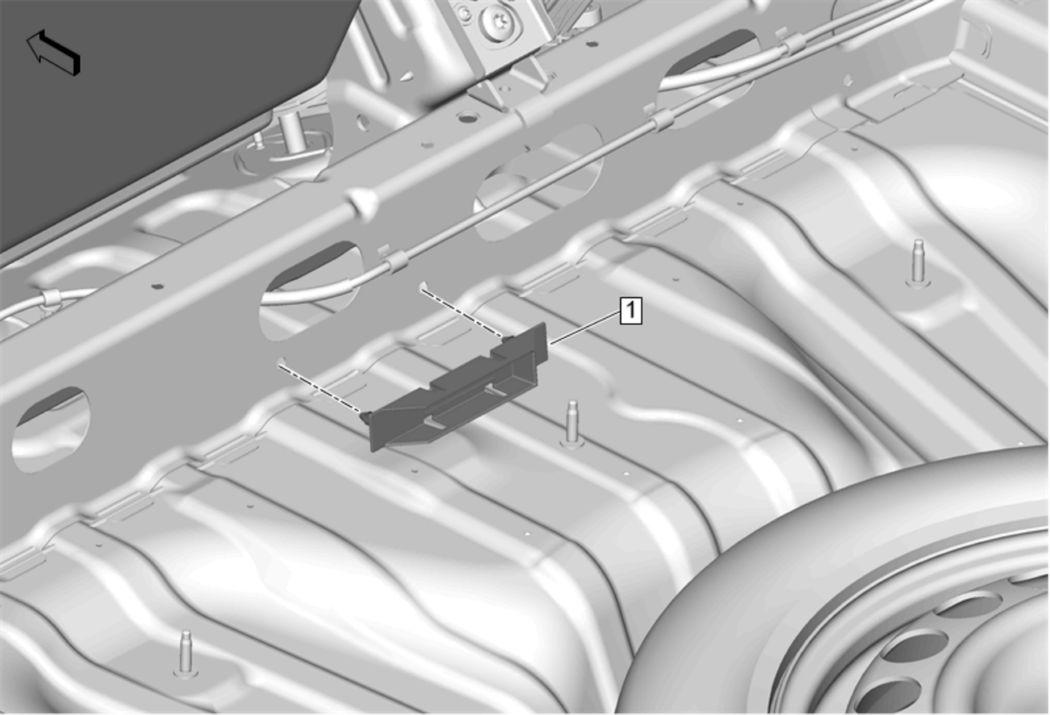

Fig 1: Ignition Lock Key Transmitter Antenna Bracket
GM4596675Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Low Frequency Rear Compartment Antenna. Refer to Low Frequency Rear Compartment Antenna Replacement
1 Ignition Lock Key Transmitter Antenna Bracket
