Accessory AC And DC Power Control Module Replacement (Equinox)

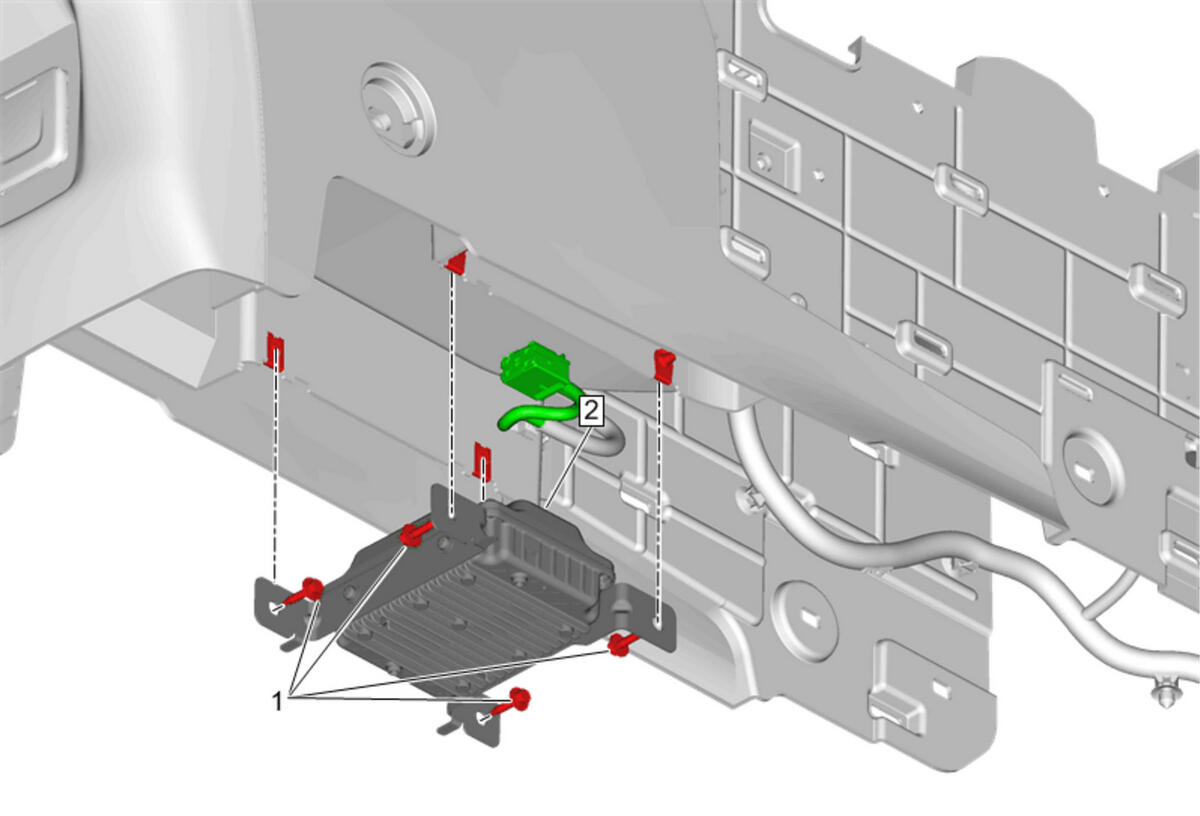

Fig 1: Accessory AC and DC Power Control Module And Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Floor Console Replacement (Equinox)
1	Accessory AC and DC Power Control Module Bolt [4x] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Accessory AC and DC Power Control Module Procedure  Disconnect the electrical connector.
