Removal Procedure

    Fig 1: Front Floor Console
    GM4741732Courtesy of GENERAL MOTORS COMPANY
  1. Remove Front Floor Console (1) - Front Floor Console Replacement (Terrain)
    2. Fig 2: Front Floor Console Rear Trim Panel
    GM4570315Courtesy of GENERAL MOTORS COMPANY
  2. Remove Front Floor Console Rear Trim Panel (2) - Front Floor Console Rear Trim Panel Replacement (Terrain)
    3. Fig 3: Front Floor Console Rear Trim Panel
    GM4743952Courtesy of GENERAL MOTORS COMPANY
  3. Remove Front Floor Console Rear Trim Panel - Left Side (1).
    4. Fig 4: Front Floor Console Rear Trim Panel
    GM4743953Courtesy of GENERAL MOTORS COMPANY
  4. Remove Front Floor Console Rear Trim Panel - Right Side (1).

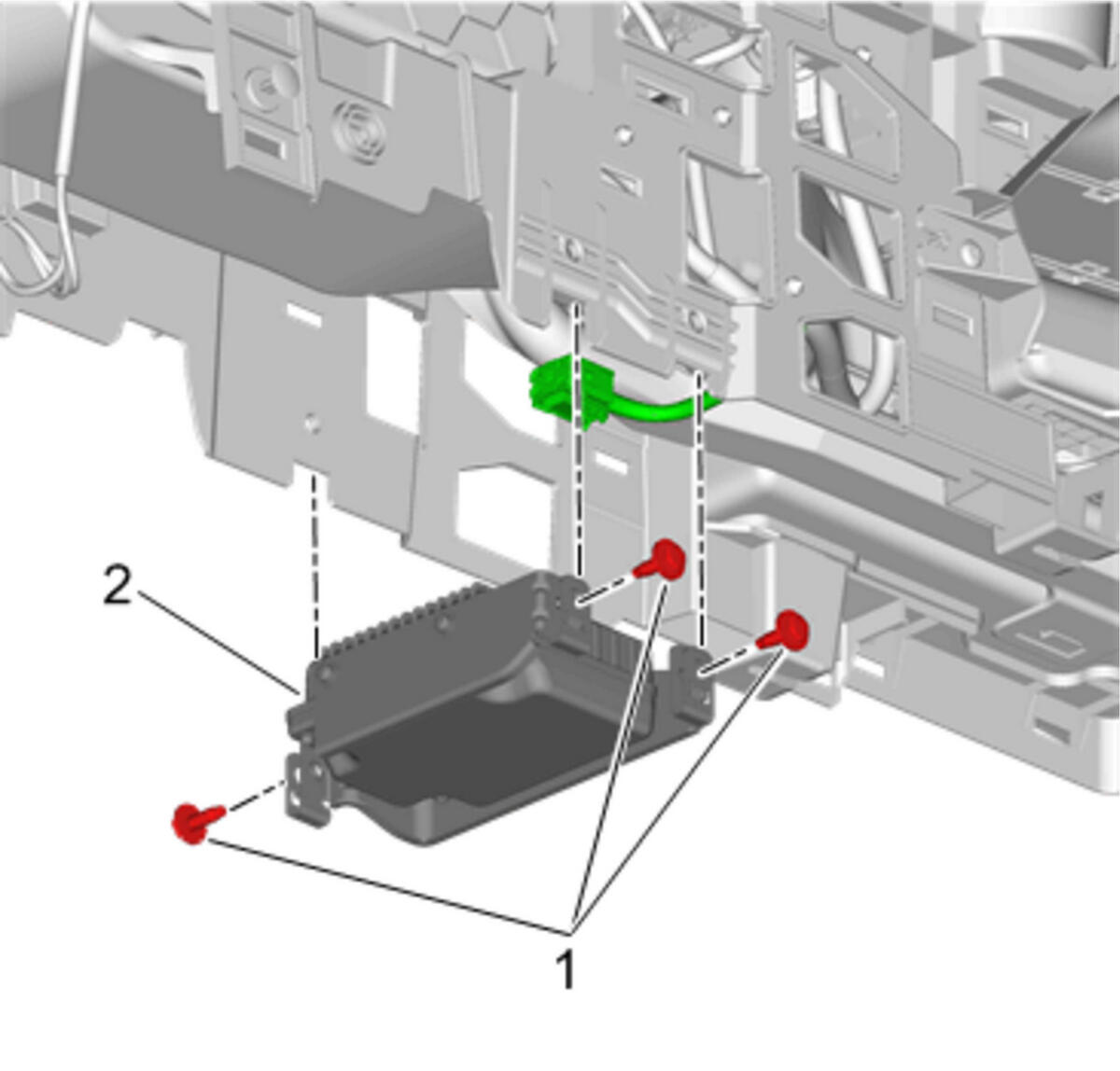

    5. Fig 5: Accessory AC and DC Power Control Module Bolt
    GM4738599Courtesy of GENERAL MOTORS COMPANY
  5. Remove Accessory AC and DC Power Control Module Bolt (1) - [3x]
  6. Disconnect the electrical connector.
  7. Remove Accessory AC and DC Power Control Module (2).
