Wireless Charging System Module Bracket Replacement (Equinox)

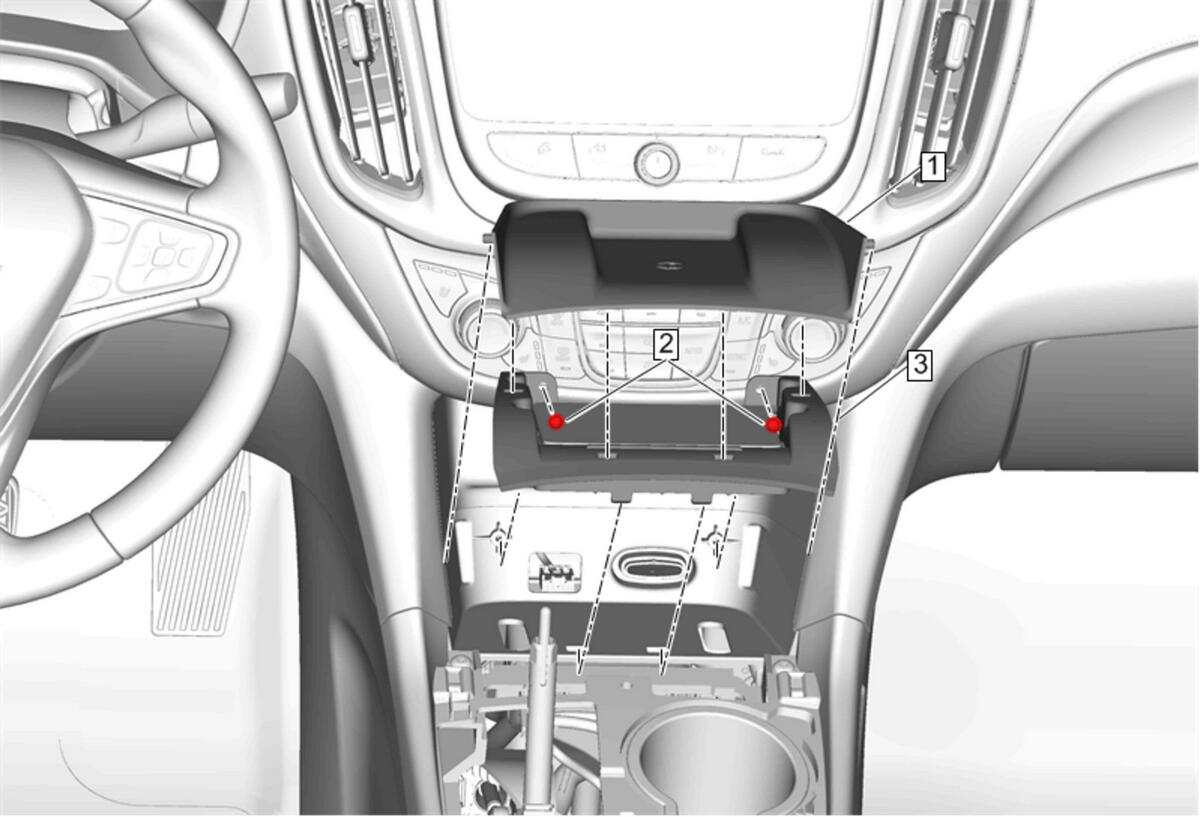

Fig 1: Wireless Charging System Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Trim Plate Replacement (Equinox)
1	Instrument Panel Compartment Tray Liner
2	Wireless Charging System Module Bracket Bolt [2x] CAUTION: Fastener Caution 1 N.m (9 lb in)
3	Wireless Charging System Module Bracket Procedure Disconnect the electrical connector. Transfer components as necessary.
