Installation Procedure

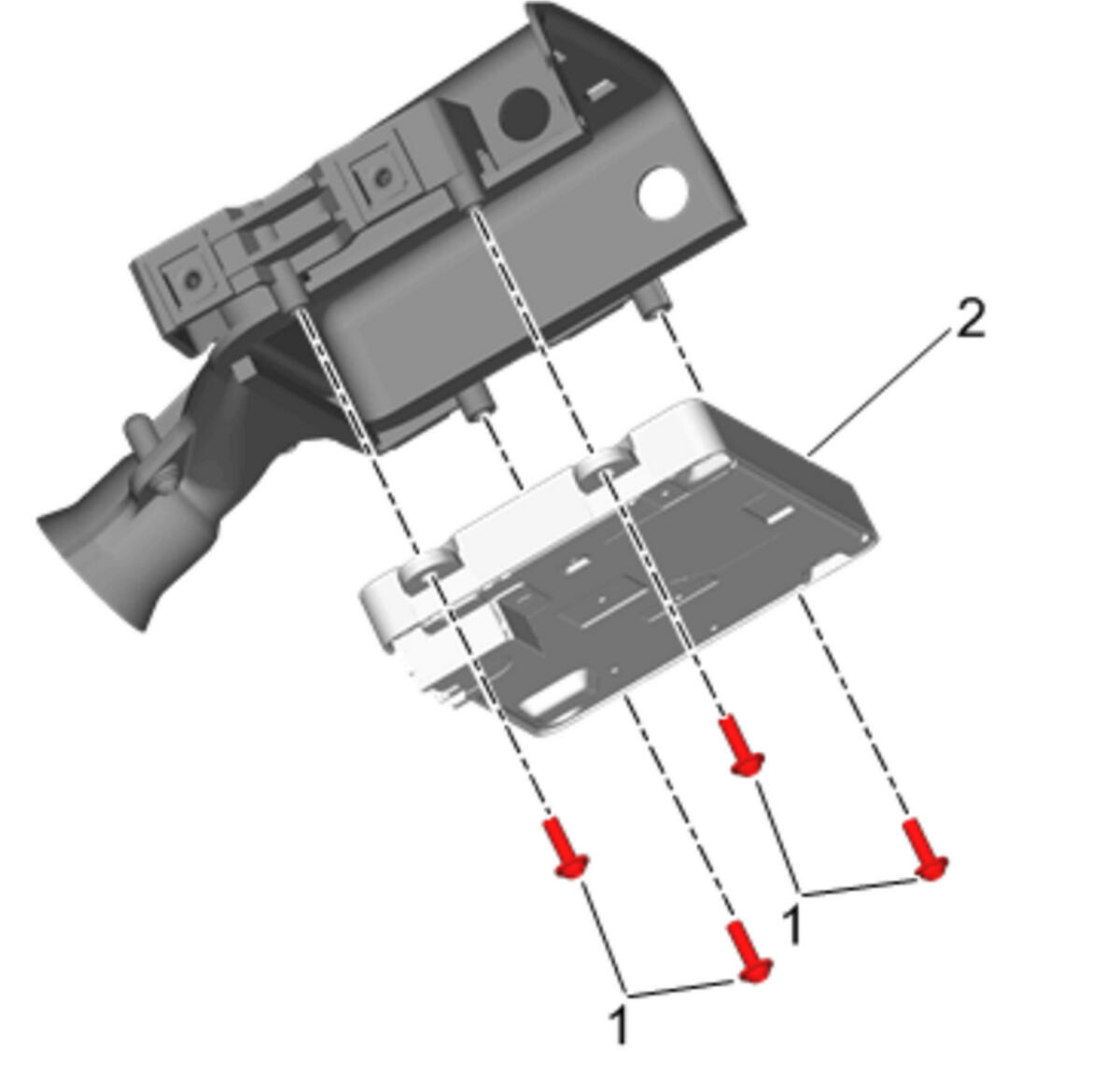

    Fig 1: Wireless Charging System Module Bracket And Bolt
    GM4728244Courtesy of GENERAL MOTORS COMPANY
  1. Install Wireless Charging System Module Bracket
  2. Install Wireless Charging System Module Bracket Bolt (1) and tighten [4x] 1 N.m (9 lb in)
    CAUTION: Fastener Caution

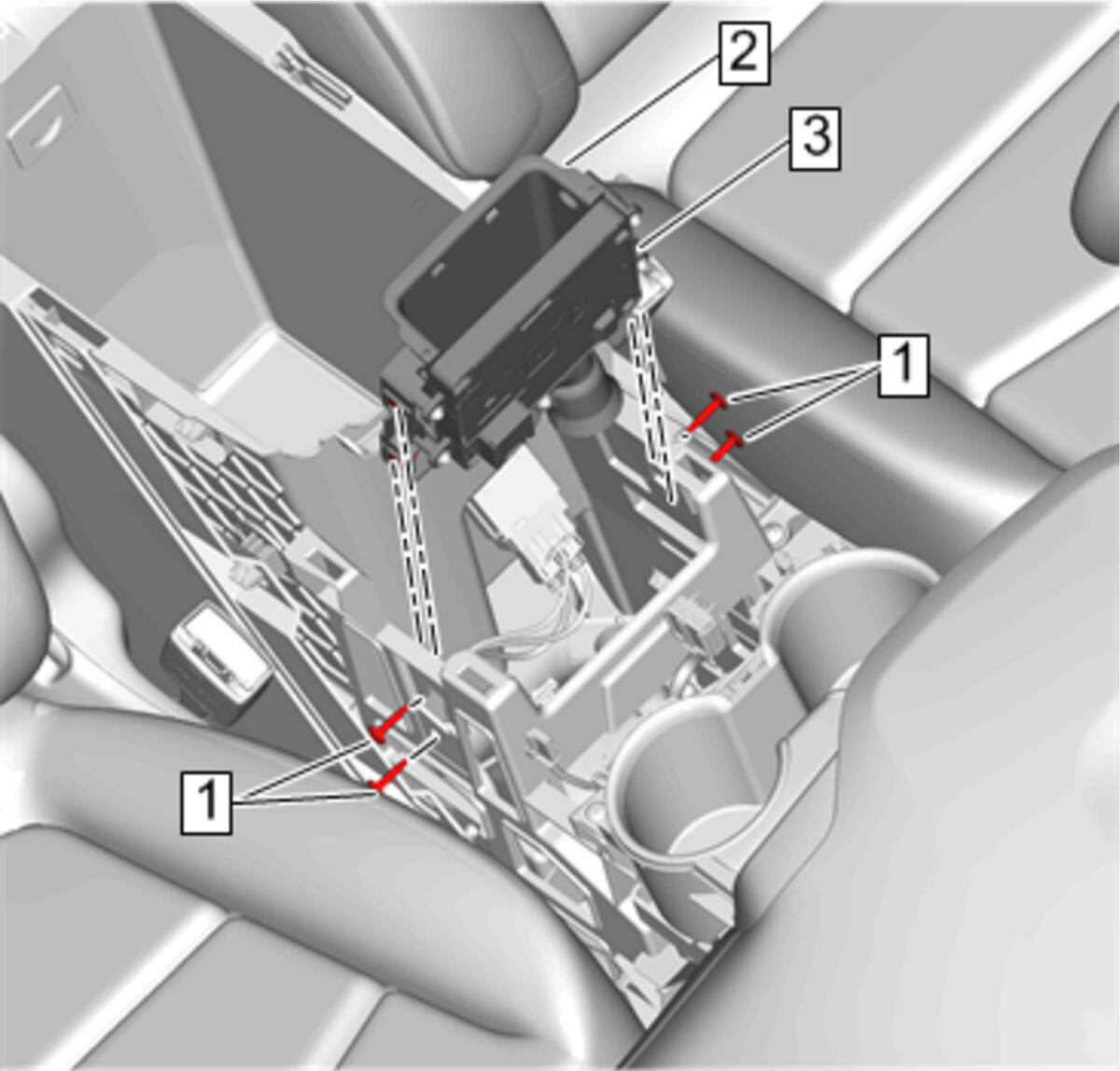

    3. Fig 2: Front Floor Lower Console Bolt And Bolt Wireless Charging System Module
    GM4728235Courtesy of GENERAL MOTORS COMPANY
  3. Connect the electrical connector.
  4. Install Wireless Charging System Module Bracket (2) and Wireless Charging System Module (3).
  5. Install Front Floor Lower Console Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

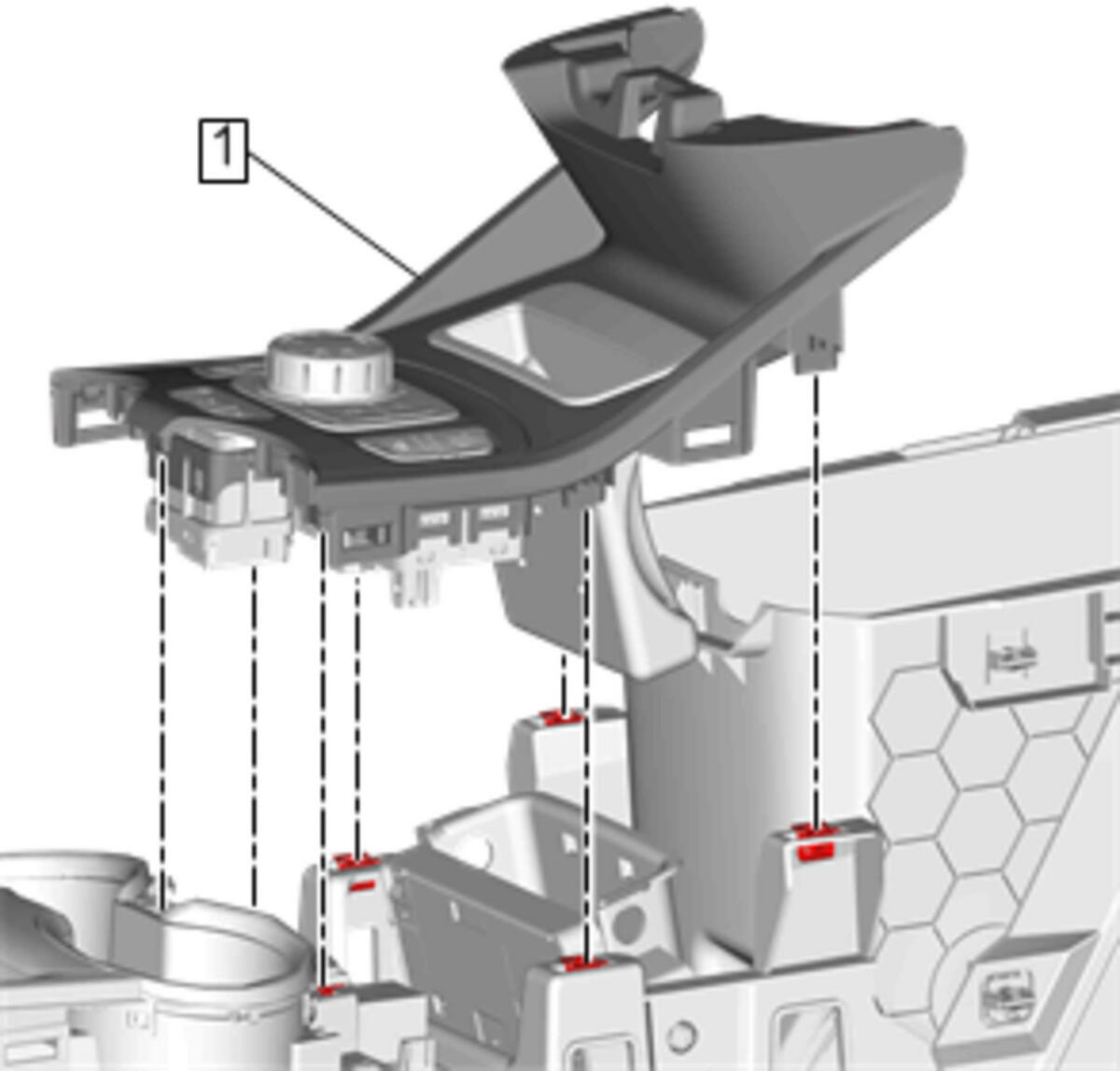

    6. Fig 3: Front Floor Console Trim Plate
    GM4742076Courtesy of GENERAL MOTORS COMPANY
  6. Install Front Floor Console Trim Plate (1) - Front Floor Console Trim Plate Replacement (Terrain)
