Parking Assist Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

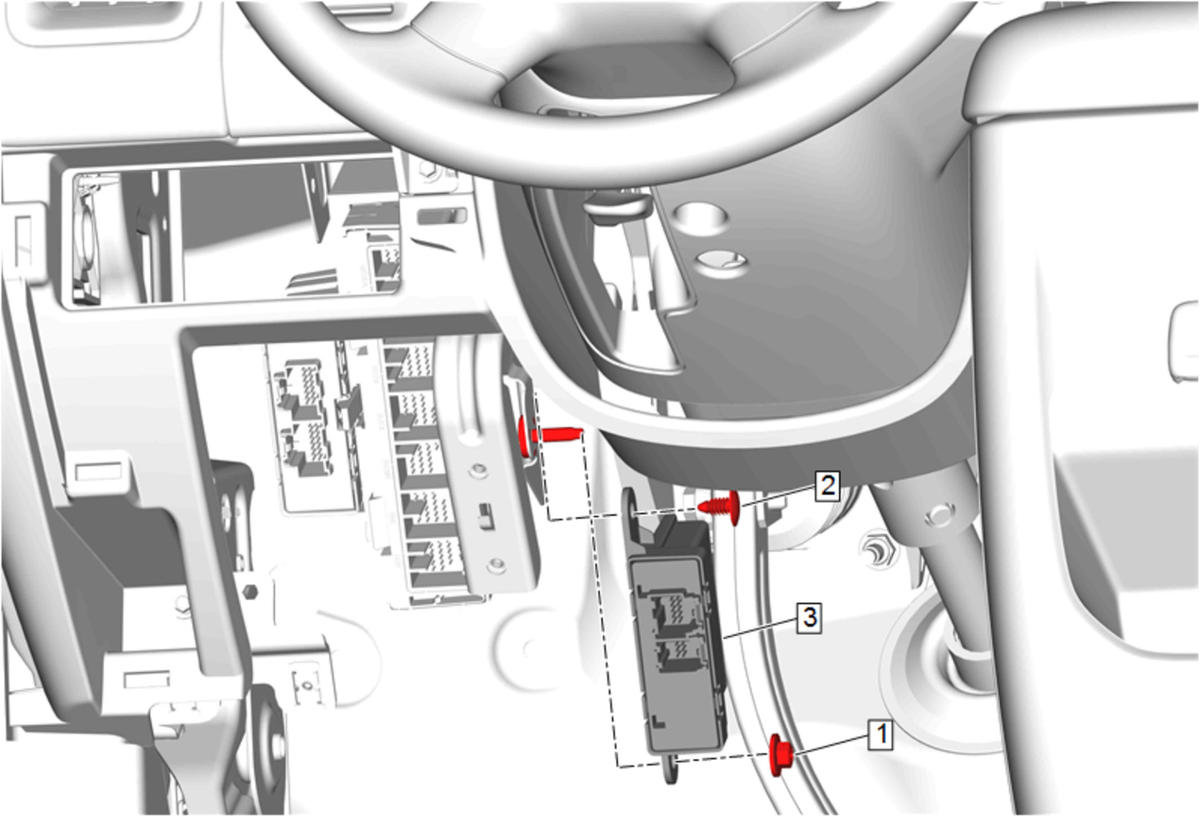

Callout	Component Name
Preliminary Procedure Instrument Panel Knee Bolster Deflector Replacement
1	Parking Assist Alarm Control Module Nut CAUTION: Fastener Caution Tighten 4.5 N.m (40 lb in)
2	Parking Assist Control Module Push-In Retainer
3	Parking Assist Control Module Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure:Control Module References
