Rear Seat Heater Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

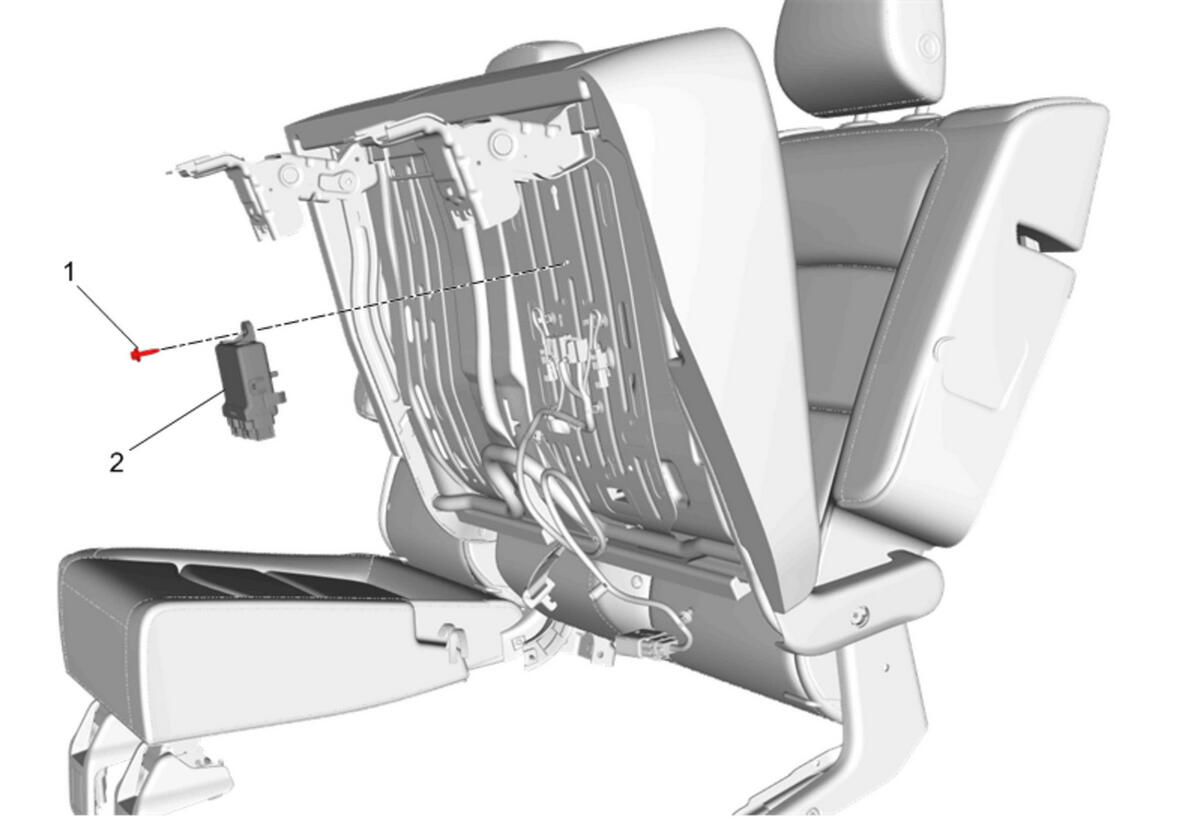

Callout	Component Name
Preliminary Procedure Remove the front bolts and fold the seat up. Rear Seat Removal and Installation
1	Rear Seat Heater Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Seat Heater Control Module Procedure Disconnect the electrical connectors. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Remove the front bolts and fold the seat up. Rear Seat Removal and Installation

Rear Seat Heater Control Module Fastener

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rear Seat Heater Control Module

Procedure
