Keyless Entry Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

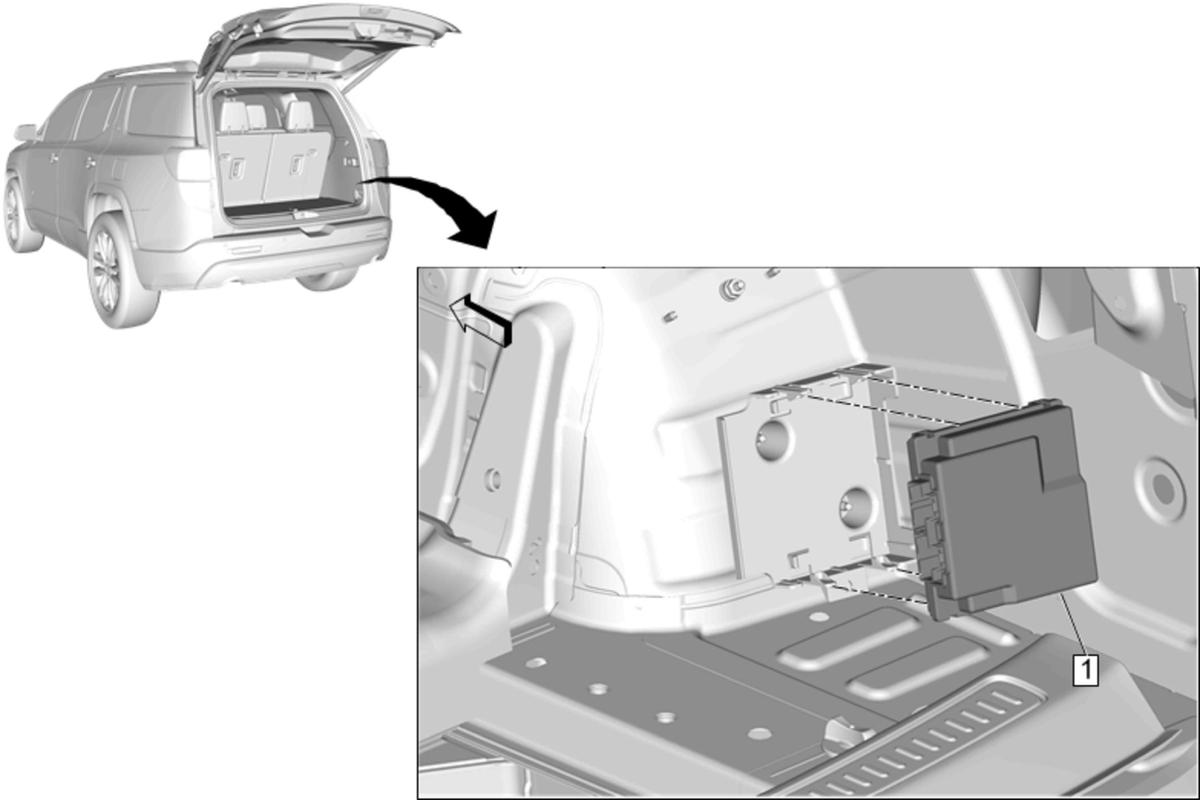

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement (Left Side with 5 Passenger Seat) , or Quarter Lower Rear Trim Panel Replacement (Right Side with 5 Passenger Seat) , or Quarter Lower Rear Trim Panel Replacement (Left Side with 7 Passenger Seat) , or Quarter Lower Rear Trim Panel Replacement (Right Side with 7 Passenger Seat)
1	Keyless Entry Control Module Procedure Disconnect the electrical connector. Release the retaining tabs. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Keyless Entry Control Module

Procedure
