Installation Procedure
- Electrical Connector@Electronic Suspension Control Module - Connect
Install the electronic suspension control module (1) until it is fully seated into the electronic suspension control module bracket (2) and secured by the tab as indicated.
Electronic Suspension Control Module (2) - Install
- Electronic Suspension Control Module Bracket Nut (1) [3x] - Install and tighten 9 N.m (80 lb in)
- Install the acoustic treatment.
- Install the spare tire.

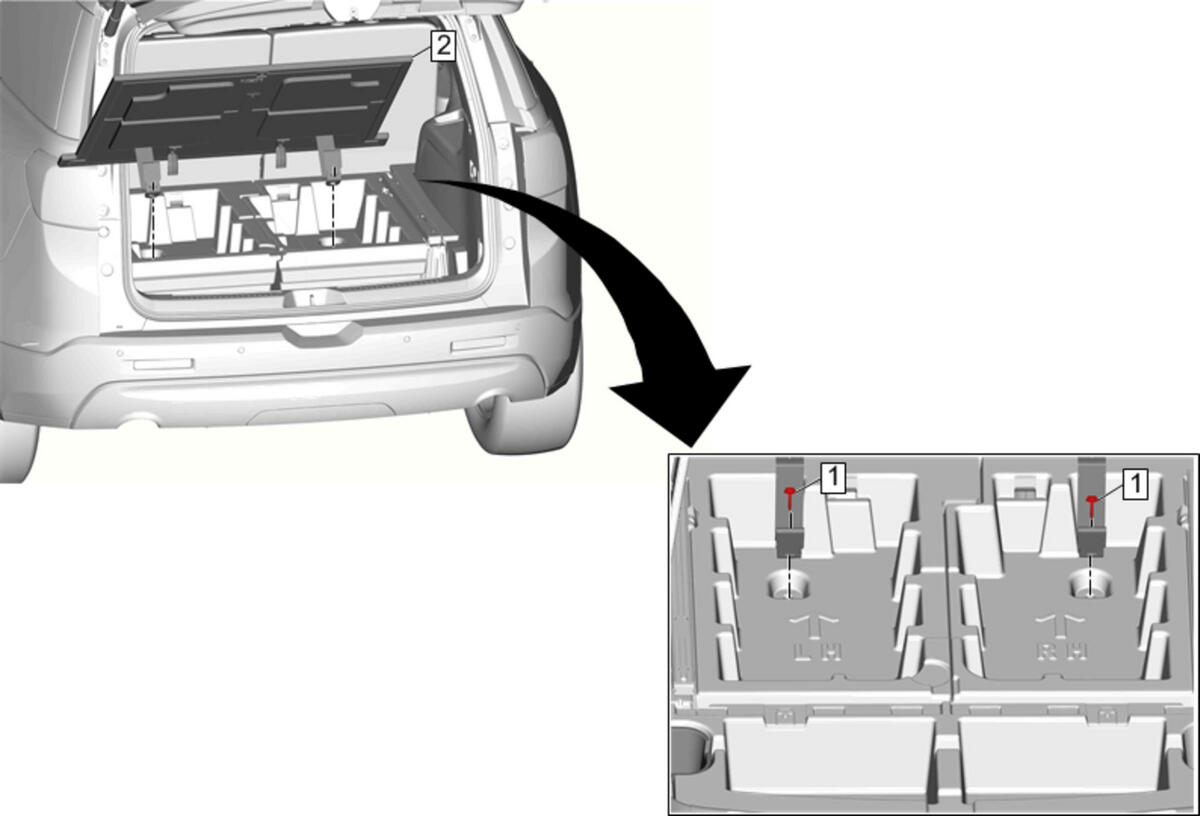

Load Floor Trim Panel (2) - Install - Load Floor Trim Panel Replacement (All Terrain)
- Program the electronic suspension control module. Control Module References
CAUTION:
Refer to Fastener Caution .
