Electrical Center Identification Views
>>
Visual Identification
>>
Electrical Center Identification Views
>>

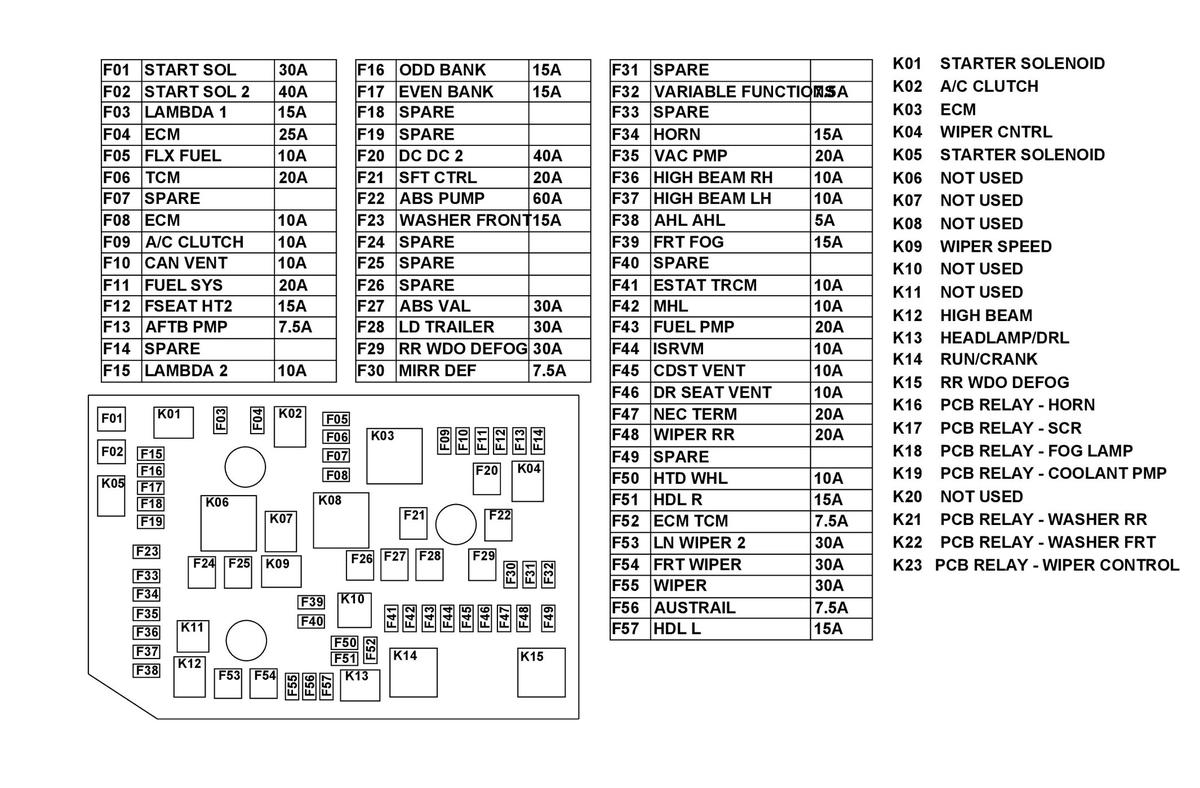

X50A Fuse Block - Underhood Label
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
X50A Fuse Block - Underhood Label
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
