Low Frequency Instrument Panel Antenna Replacement

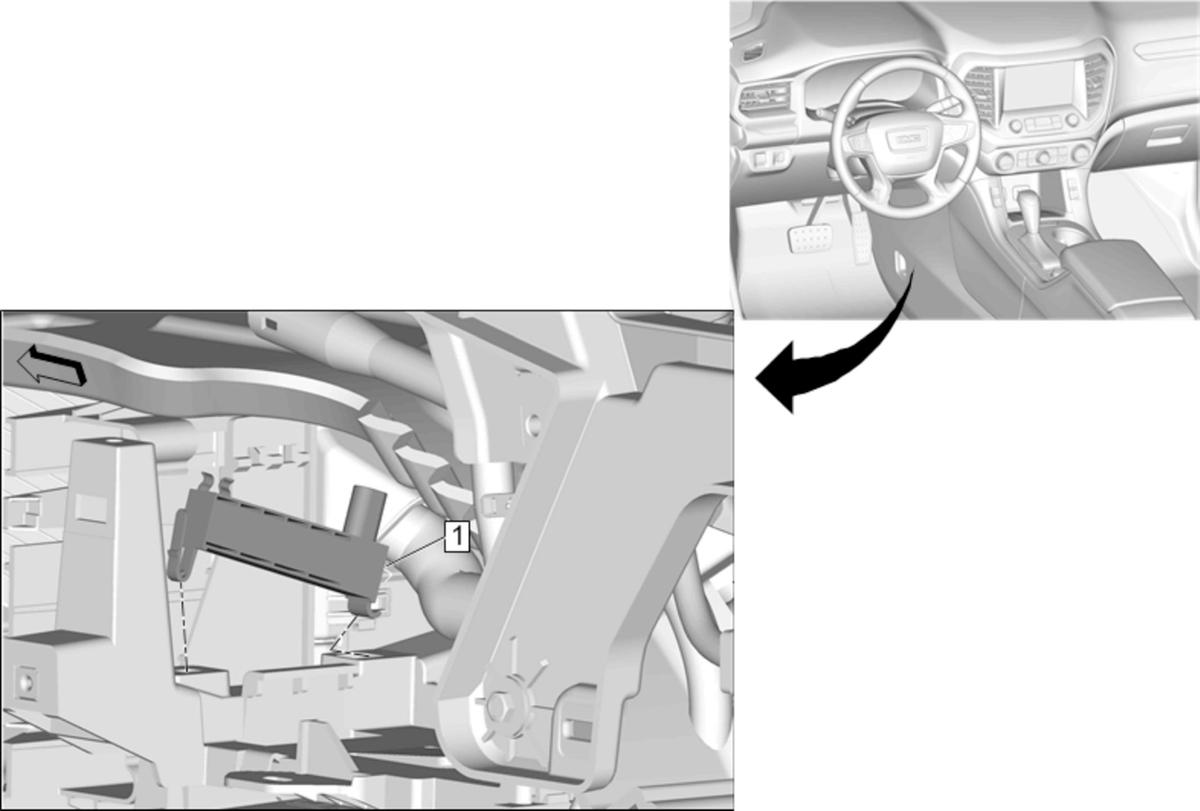

GM4399518Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name
Preliminary Procedure
Front Floor Console Extension Panel Replacement - Left Side
1 Low Frequency Instrument Panel Antenna

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tab.
