Keyless Entry - Active
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

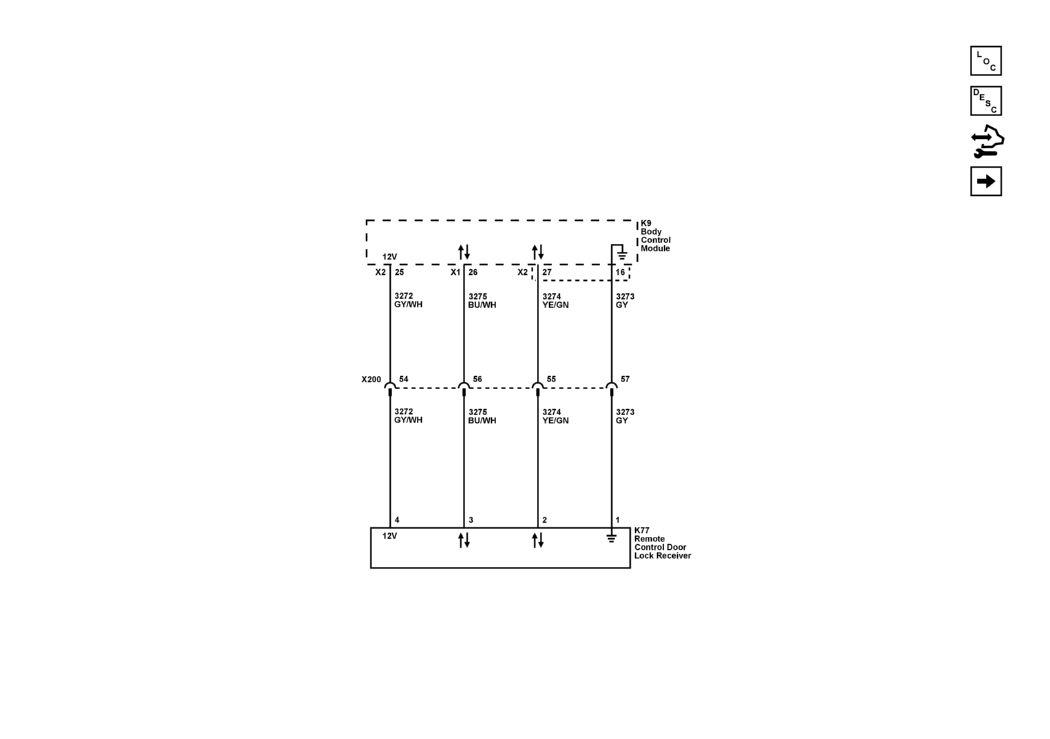

Keyless Entry - Active
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
