Human-Machine Interface Control Module Bypass Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

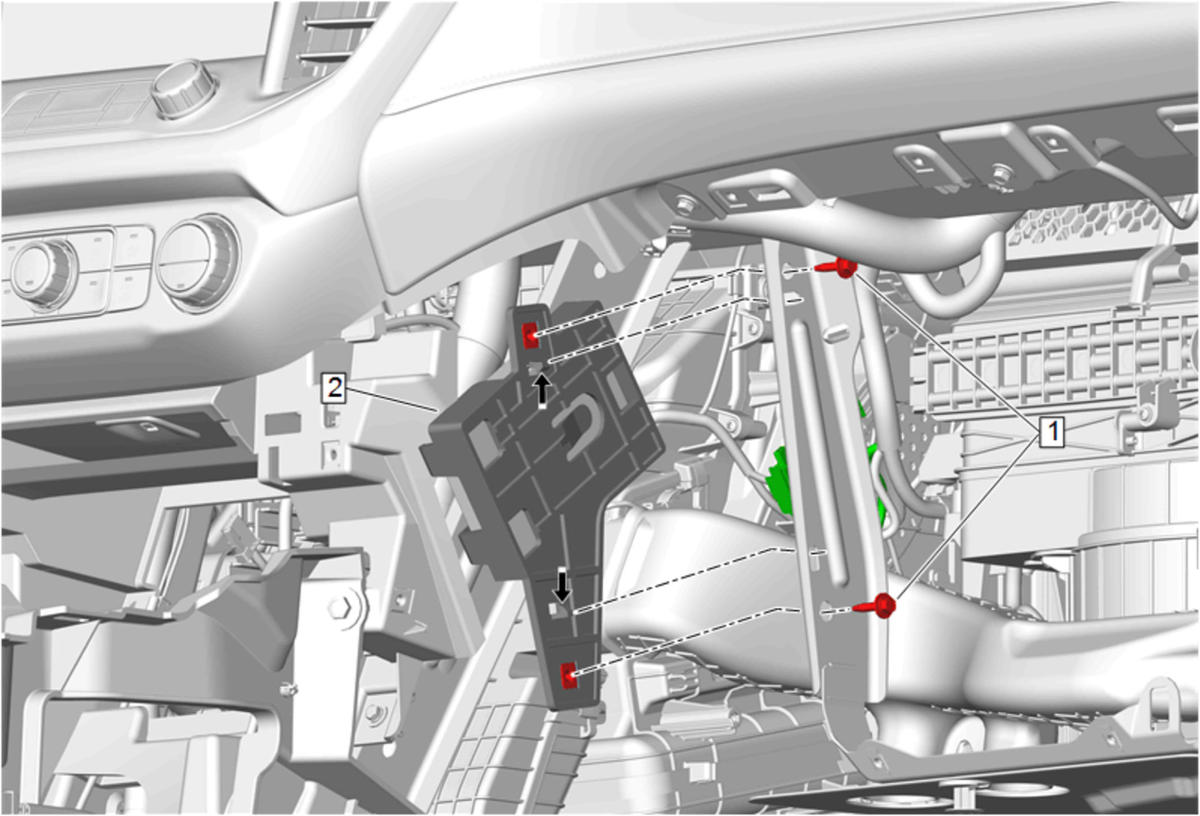

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Instrument Panel Compartment Replacement
1	Human Machine Interface Control Module Bypass Module Bracket Bolt [2x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Human Machine Interface Control Module Bypass Module Bracket Procedure Release the retaining tabs. Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Human Machine Interface Control Module Bypass Module Bracket Bolt [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Human Machine Interface Control Module Bypass Module Bracket

Procedure
