Engine Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

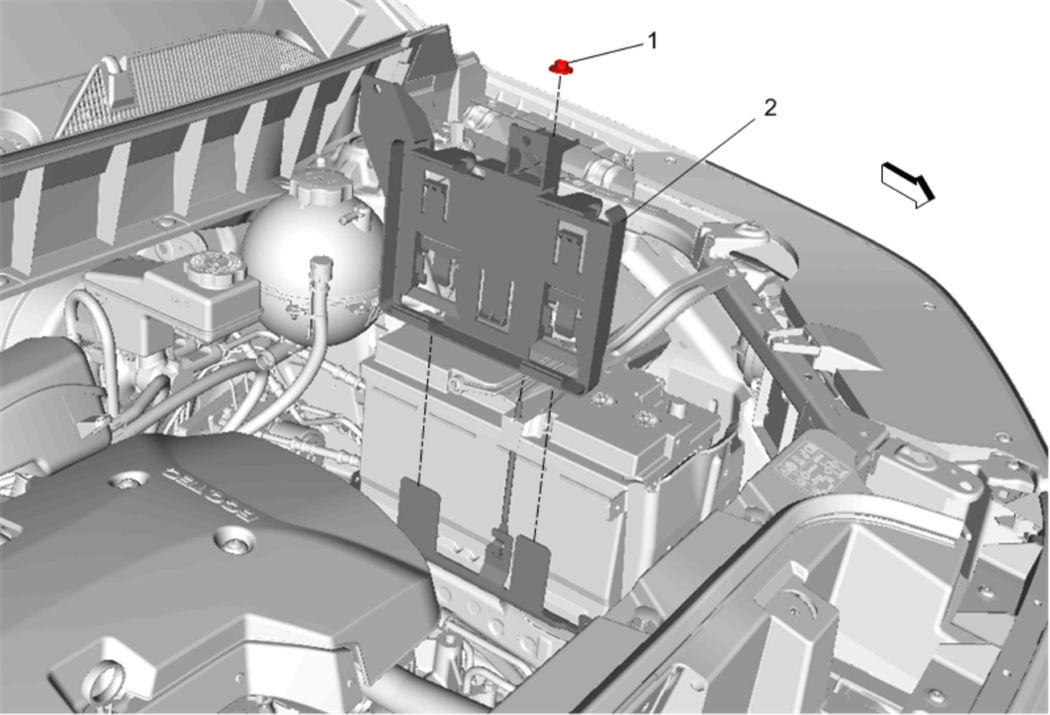

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Radiator Surge Tank Inlet Hose @ Engine Control Module Bracket - Reposition away - Radiator Surge Tank Inlet Hose Replacement (LCV From Radiator Surge Tank to Radiator and Radiator Surge Tank Outlet Pipe) Engine Control Module Replacement
1	Engine Control Module Bracket Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Engine Control Module Bracket

Callout

Component Name

Preliminary Procedures

Engine Control Module Bracket Nut

CAUTION:

Tighten
9 N.m (80 lb in)

Engine Control Module Bracket
