Garage Door Opener Transmitter Replacement

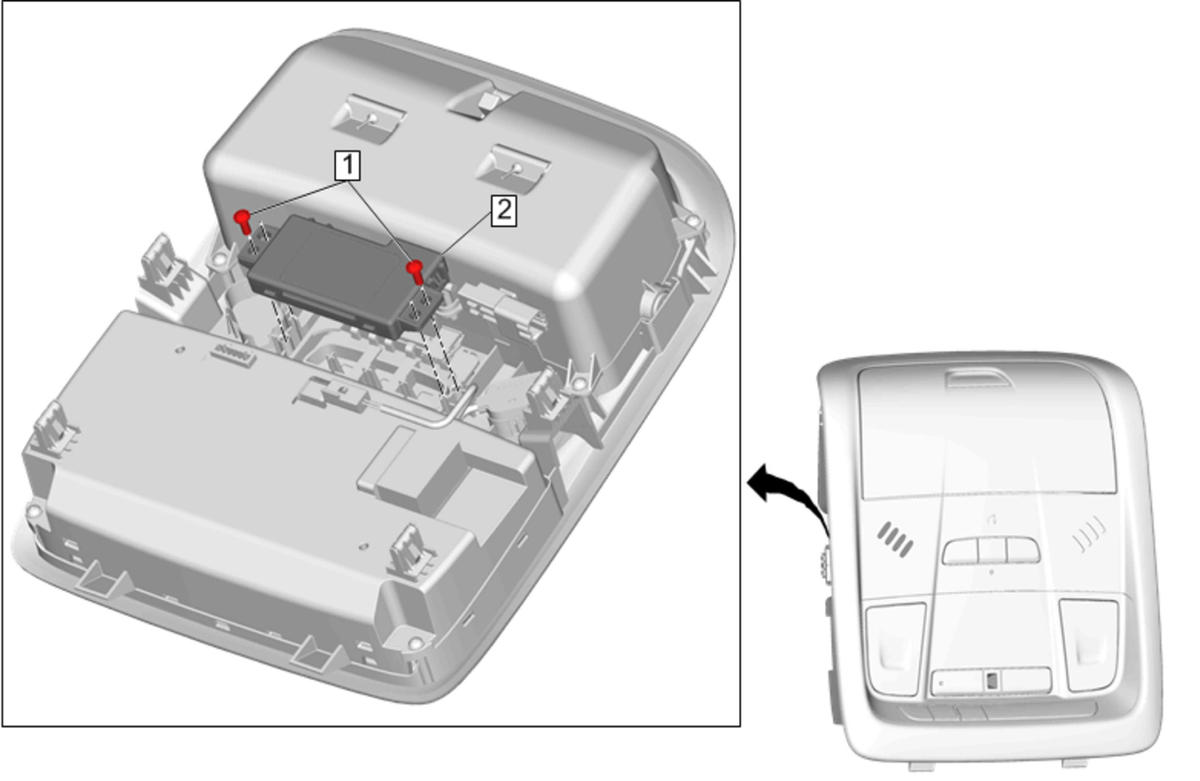

GM4375274Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name
Preliminary Procedure
Roof Console Replacement
1 Roof Console Bolt [2x]
CAUTION:

Fastener Caution


Tighten
1.5 N.m (13 lb in)
2 Garage Door Opener Transmitter
Procedure
Disconnect the electrical connector.
