Installation Procedure

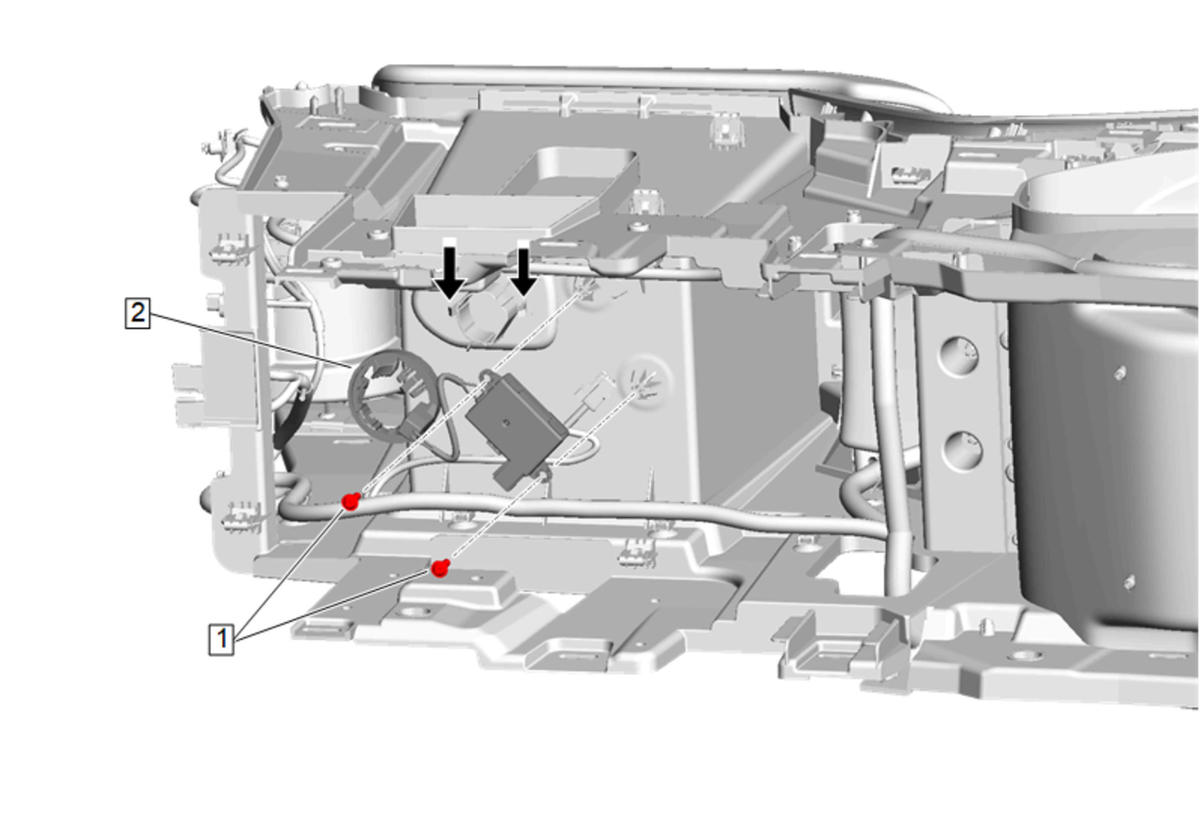

- Theft Deterrent Module (2) - Install
- Connect the electrical connector.
- Theft Deterrent Module Bolt (1) - Install and tighten [2x] 0.75 N.m (7 lb in)

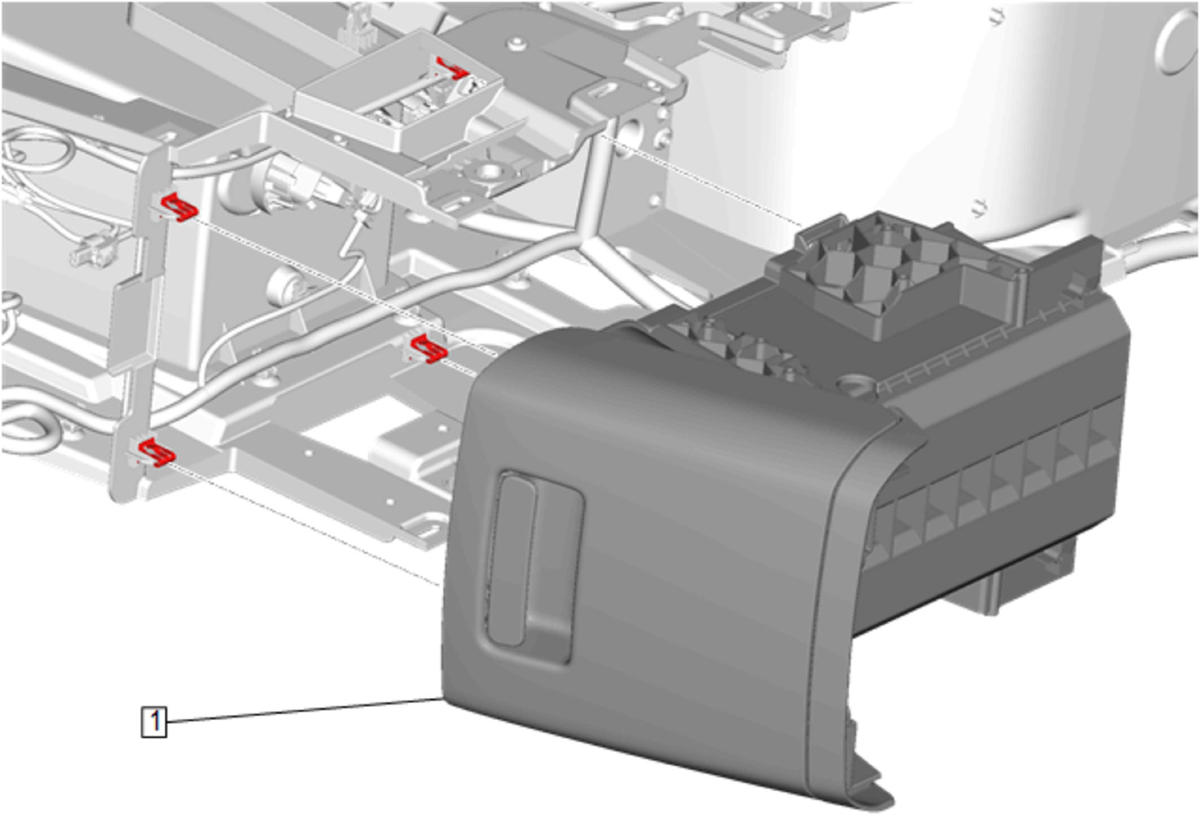

- Front Floor Console Rear Compartment (1) - Install - Front Floor Console Rear Compartment Replacement

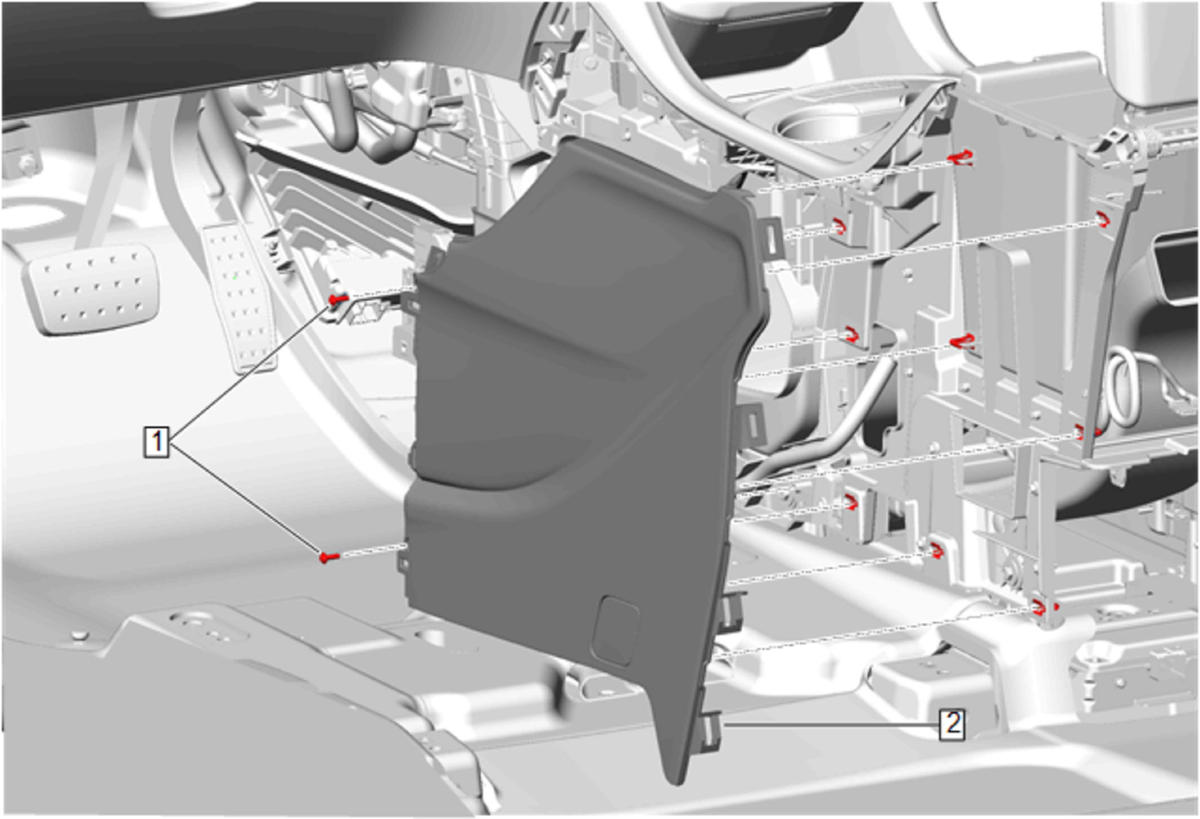

- Front Floor Rear Console Side Trim Panel - Left Side (2) - Install - Front Floor Rear Console Side Trim Panel Replacement - Left Side

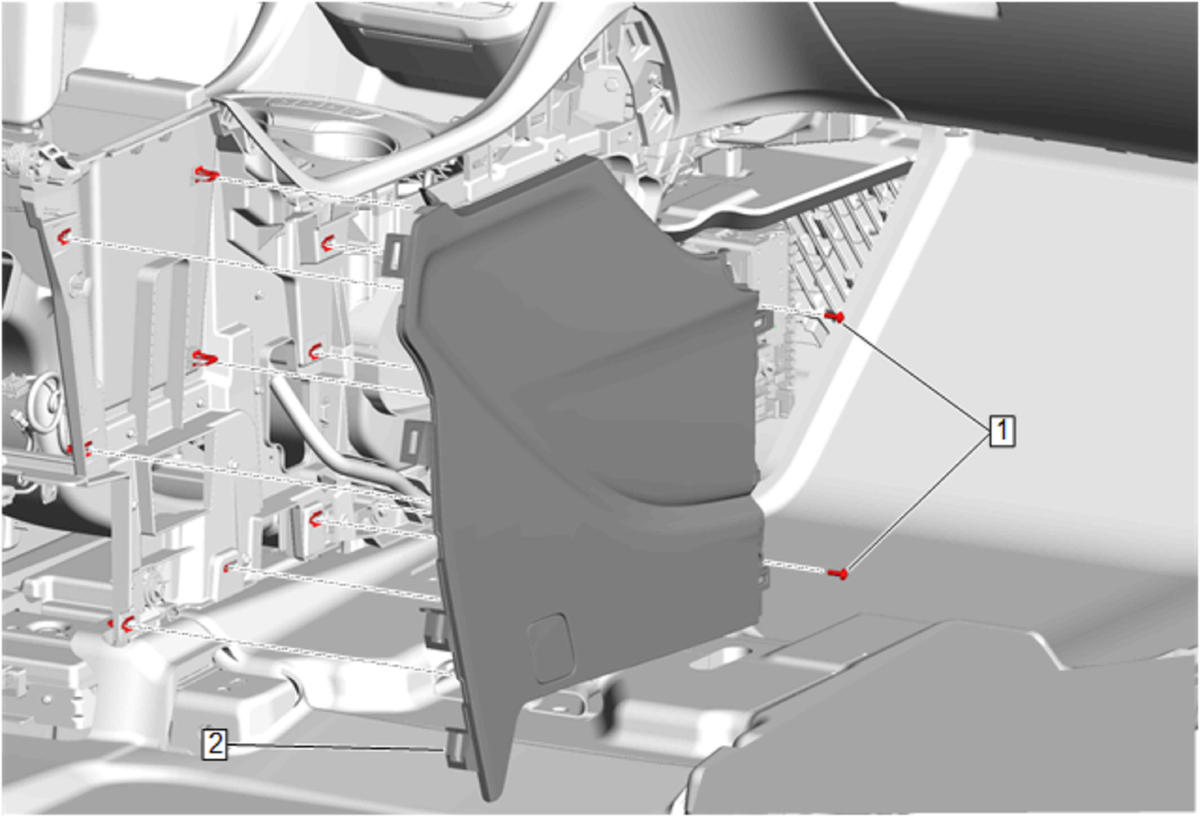

- Front Floor Rear Console Side Trim Panel - Right Side (2) - Install - Front Floor Rear Console Side Trim Panel Replacement - Right Side

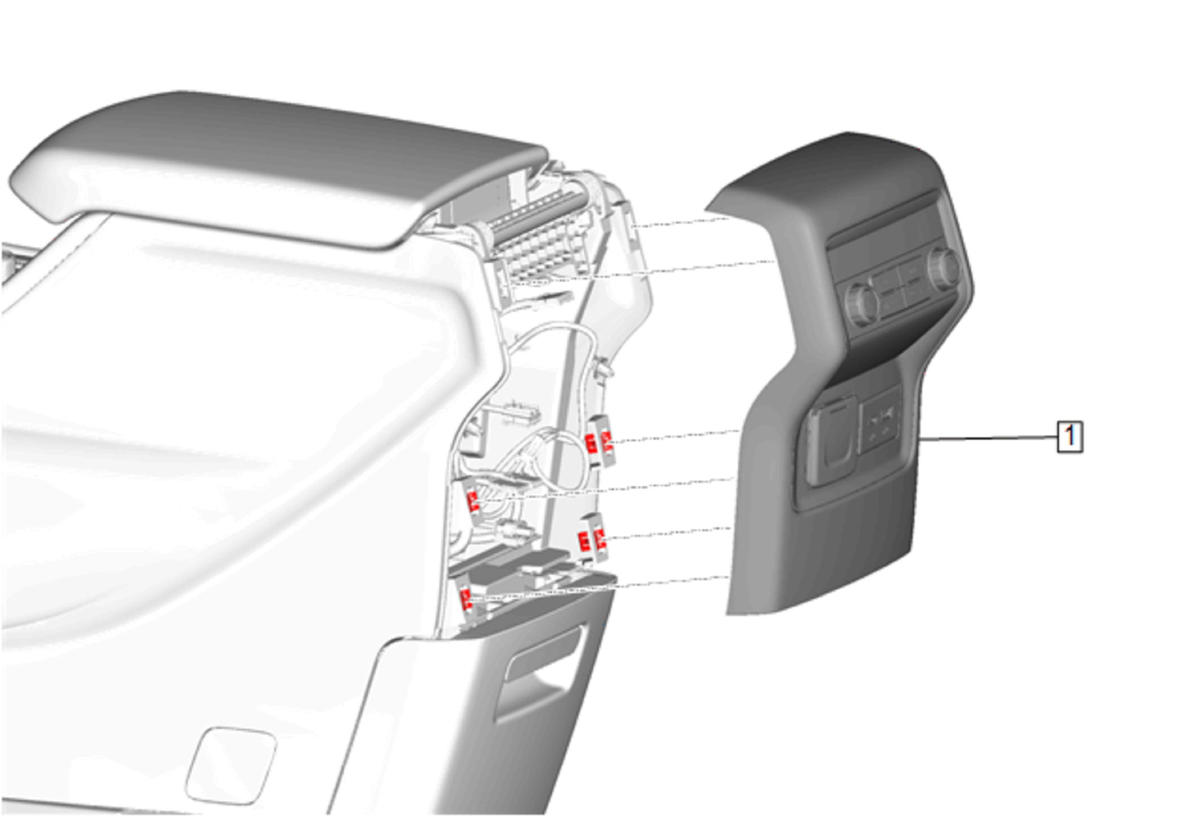

- Front Floor Console Rear Trim Panel (1) - Install - Front Floor Console Rear Trim Panel Replacement (with Rear Vent)
, or Front Floor Console Rear Trim Panel Replacement (with Auxiliary Heater and AC Control)

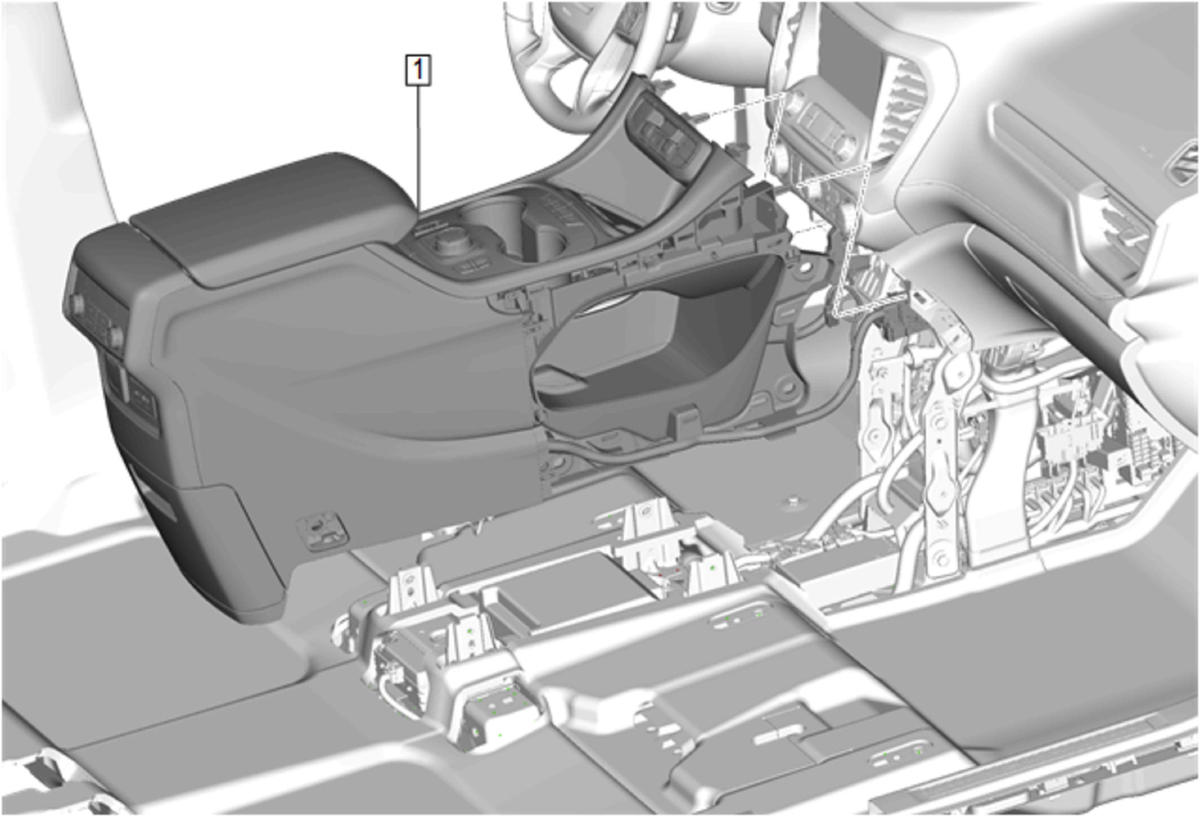

- Front Floor Console (1) - Install - Front Floor Console Removal and Installation

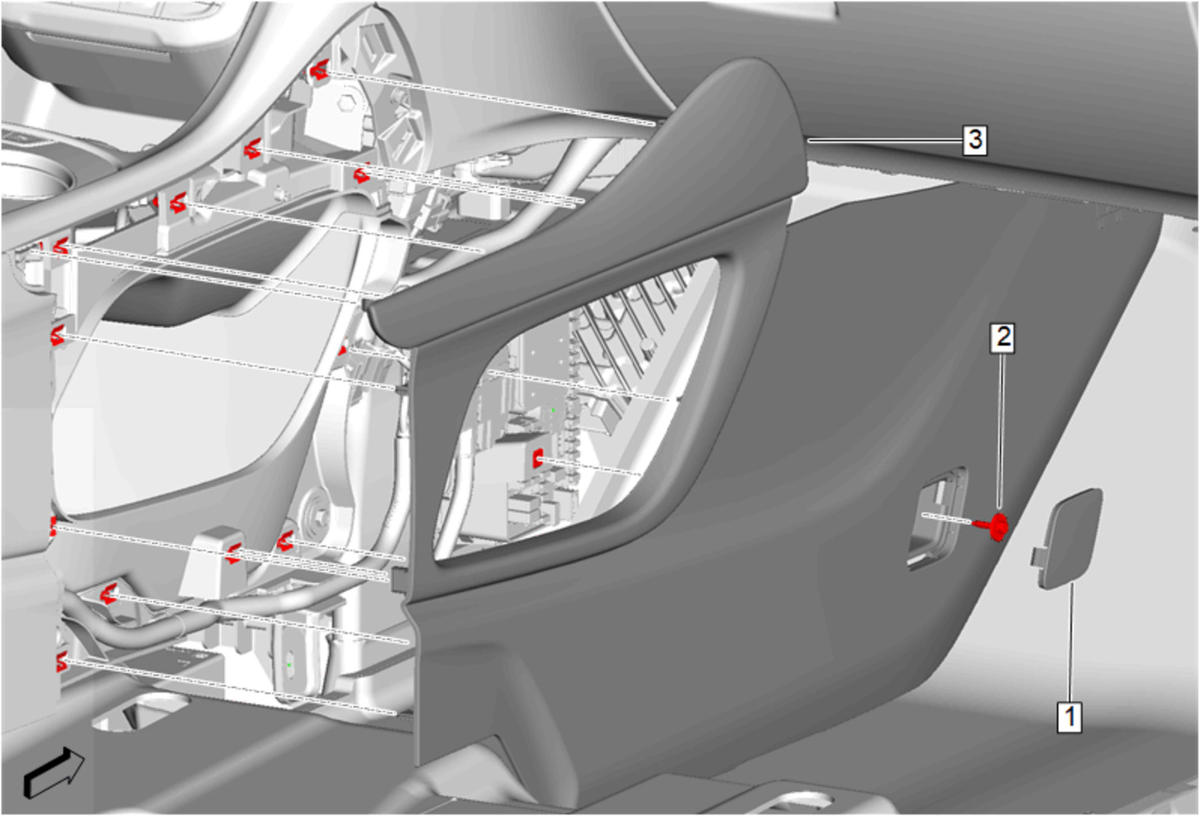

- Front Floor Console Extension Panel - Right Side (3) - Install - Front Floor Console Extension Panel Replacement - Right Side

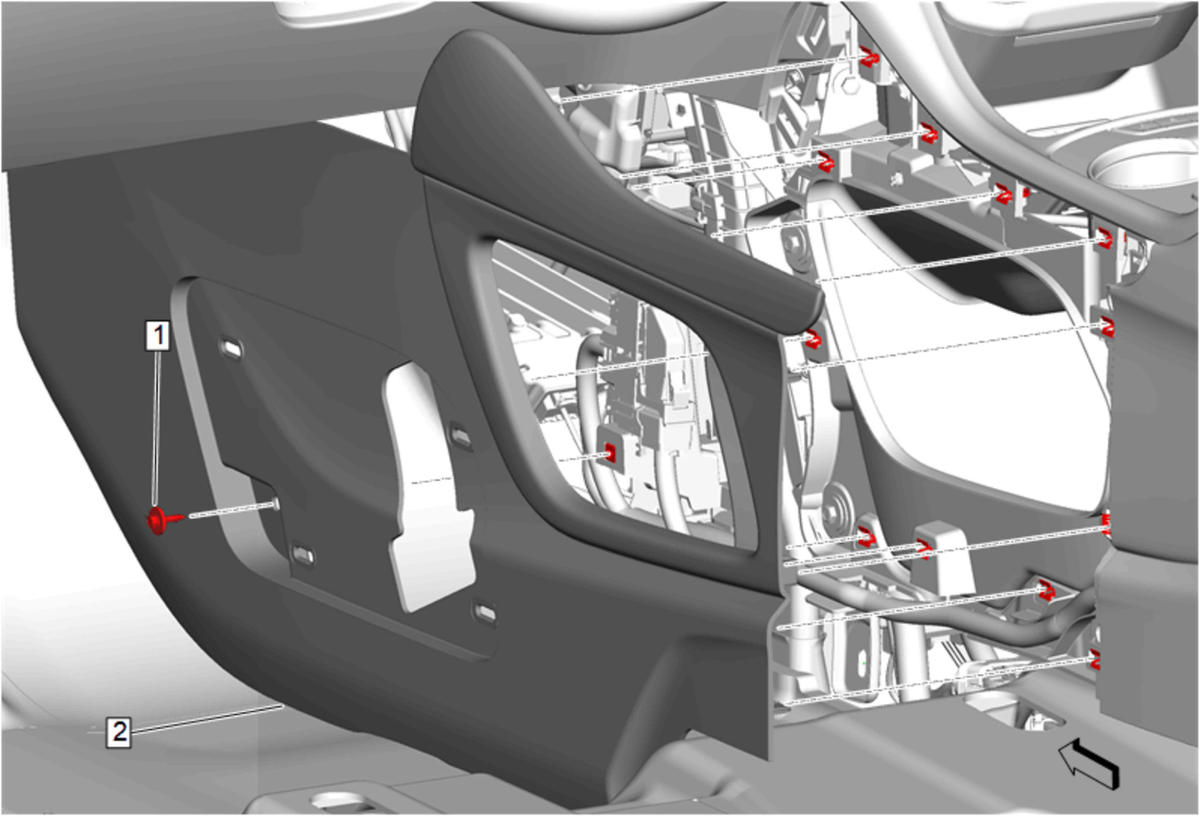

- Front Floor Console Extension Panel - Left Side (2) - Install - Front Floor Console Extension Panel Replacement - Left Side
- Perform the necessary programming and setup procedure: Control Module References
CAUTION:
Refer to Fastener Caution .
