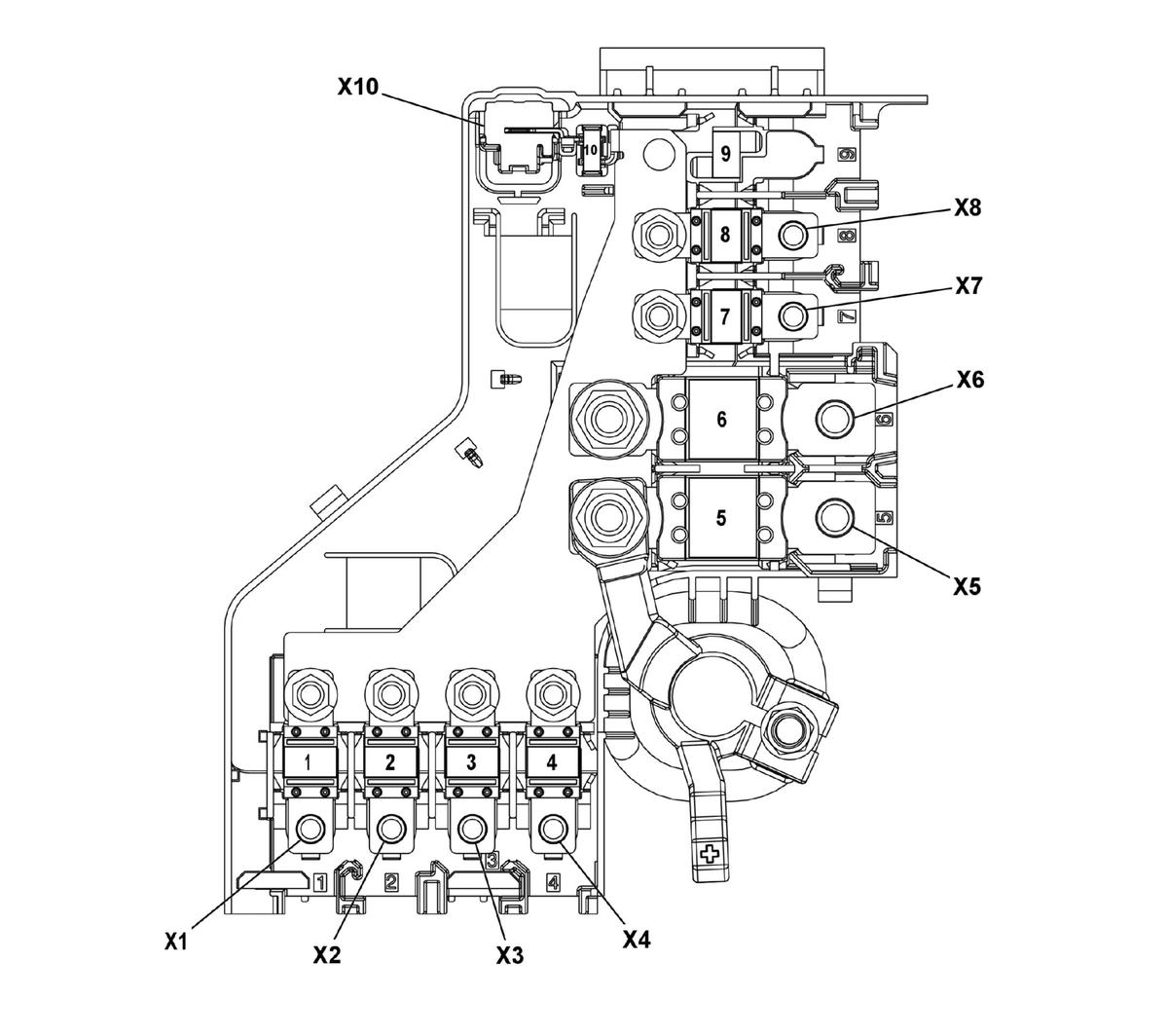

X50D Fuse Block - Battery Top View
X50D Fuse Block - Battery Usage
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| 1 | - | F1BA | 150A |
|
| 2 | - | F2BA | 100A |
|
| 3 | - | F3BA | 100A |
|
| 4 | - | F4BA | 70A (LCV/LGX-V92), 100A (LGX+V92) |
|
| 5 | - | F5BA | 250A |
|
| 6 | - | F6BA | 350A |
|
| 7 | - | F7BA | 200A |
|
| 8 | - | F8BA | 100A |
|
| 9 | - | F9BA | - |
|
| 10 | - | F10BA | 5A |
|
