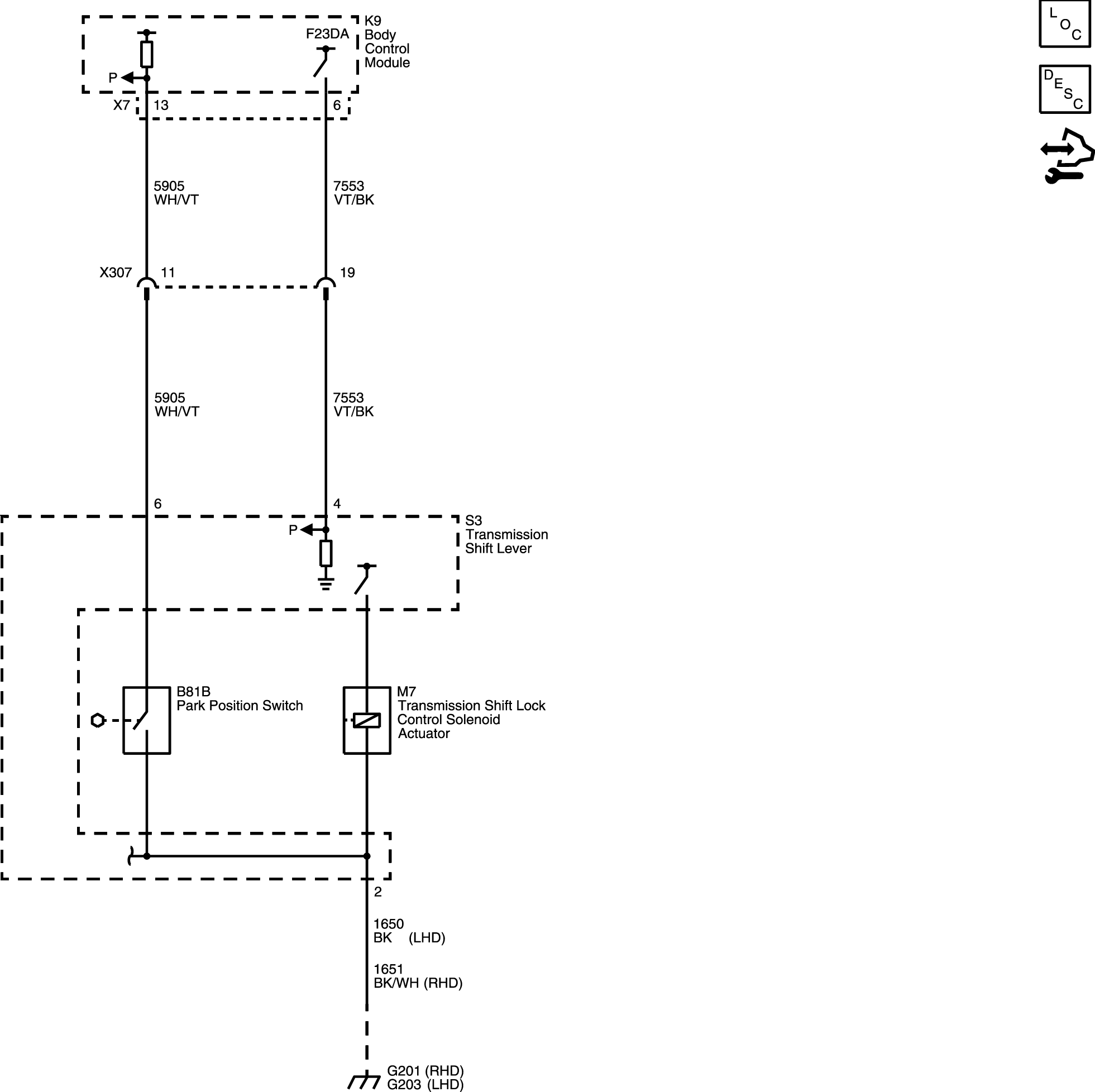

Shift Lock Control

WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
GM4894946Courtesy of GENERAL MOTORS COMPANY
