Serial Data Gateway Module Replacement (RHD)

WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

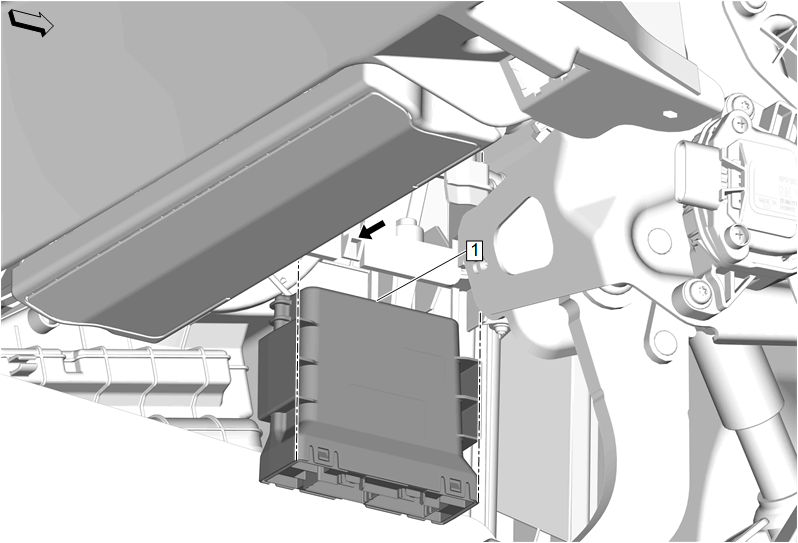

Callout	Component Name
Preliminary Procedure Floor Front Air Outlet Duct Replacement - Right Side (RHD)
1	Serial Data Gateway Module Procedure Disconnect the electrical connectors. Release the retaining tab. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Floor Front Air Outlet Duct Replacement - Right Side (RHD)

Serial Data Gateway Module

Procedure

Disconnect the electrical connectors.
Release the retaining tab.
Perform the necessary programming and setup procedure: Control Module References
