Restraints Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

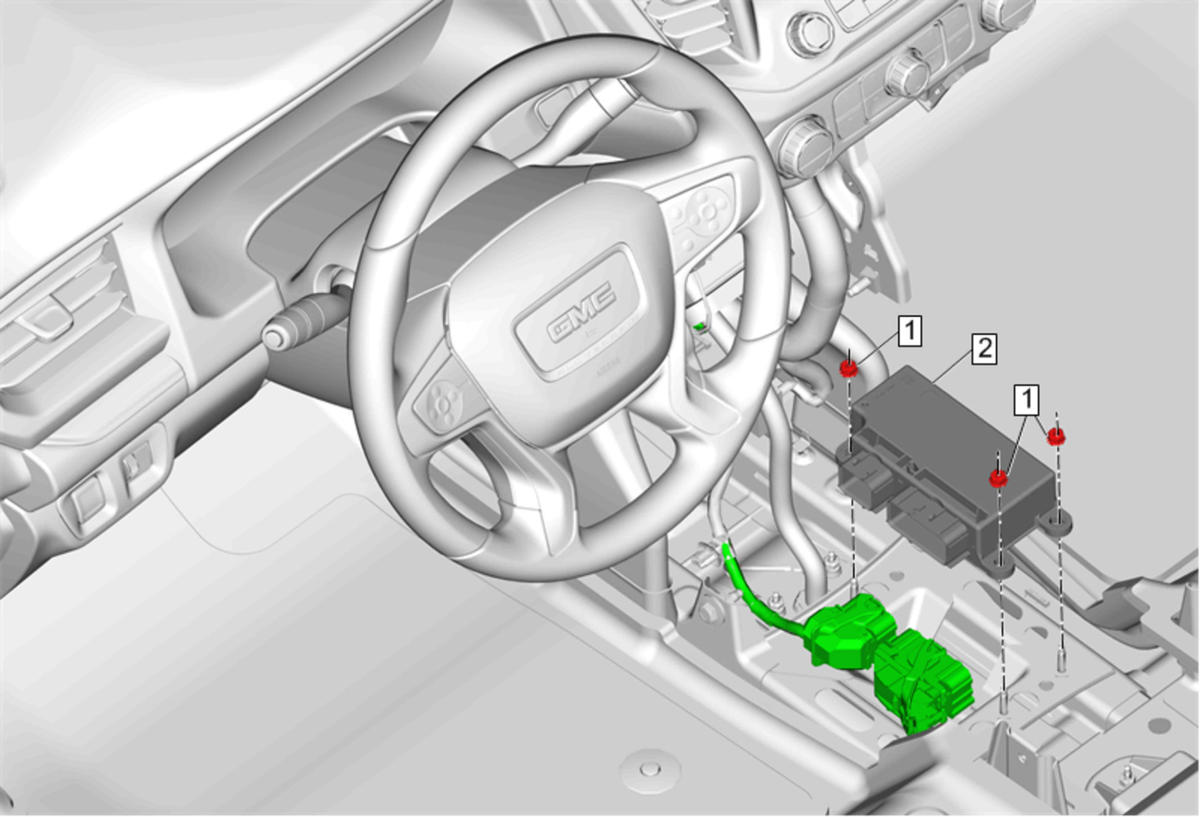

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: Do not strike or jolt the Restraints Control Module (RCM). Before applying power to the RCM, make sure that it is securely fastened. Failure to observe the correct installation procedure could cause Supplemental Inflatable Restraint (SIR) deployment, personal injury, or unnecessary SIR system repairs. WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Front Floor Console Rear Air Duct Replacement (Front C59) , or Front Floor Console Rear Air Duct Replacement (Rear C59)
1	Airbag Sensing and Diagnostic Module Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Restraints Control Module Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

WARNING:

Do not strike or jolt the Restraints Control Module (RCM). Before applying power to the RCM, make sure that it is securely fastened. Failure to observe the correct installation procedure could cause Supplemental Inflatable Restraint (SIR) deployment, personal injury, or unnecessary SIR system repairs.

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. SIR Disabling and Enabling
Front Floor Console Rear Air Duct Replacement (Front C59) , or Front Floor Console Rear Air Duct Replacement (Rear C59)

Airbag Sensing and Diagnostic Module Nut [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Restraints Control Module

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
Enable the SIR System. SIR Disabling and Enabling
