Removal Procedure

Front Side Door Water Deflector - Remove - Front Side Door Water Deflector Replacement (Equinox) , or Front Side Door Water Deflector Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Regulator (3) - Remove - Front Side Door Window Regulator Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Rear Channel Retainer (2) - Remove - Front Side Door Window Channel Retainer Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket (1) - Remove - Front Side Door Outside Handle Bracket Replacement
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

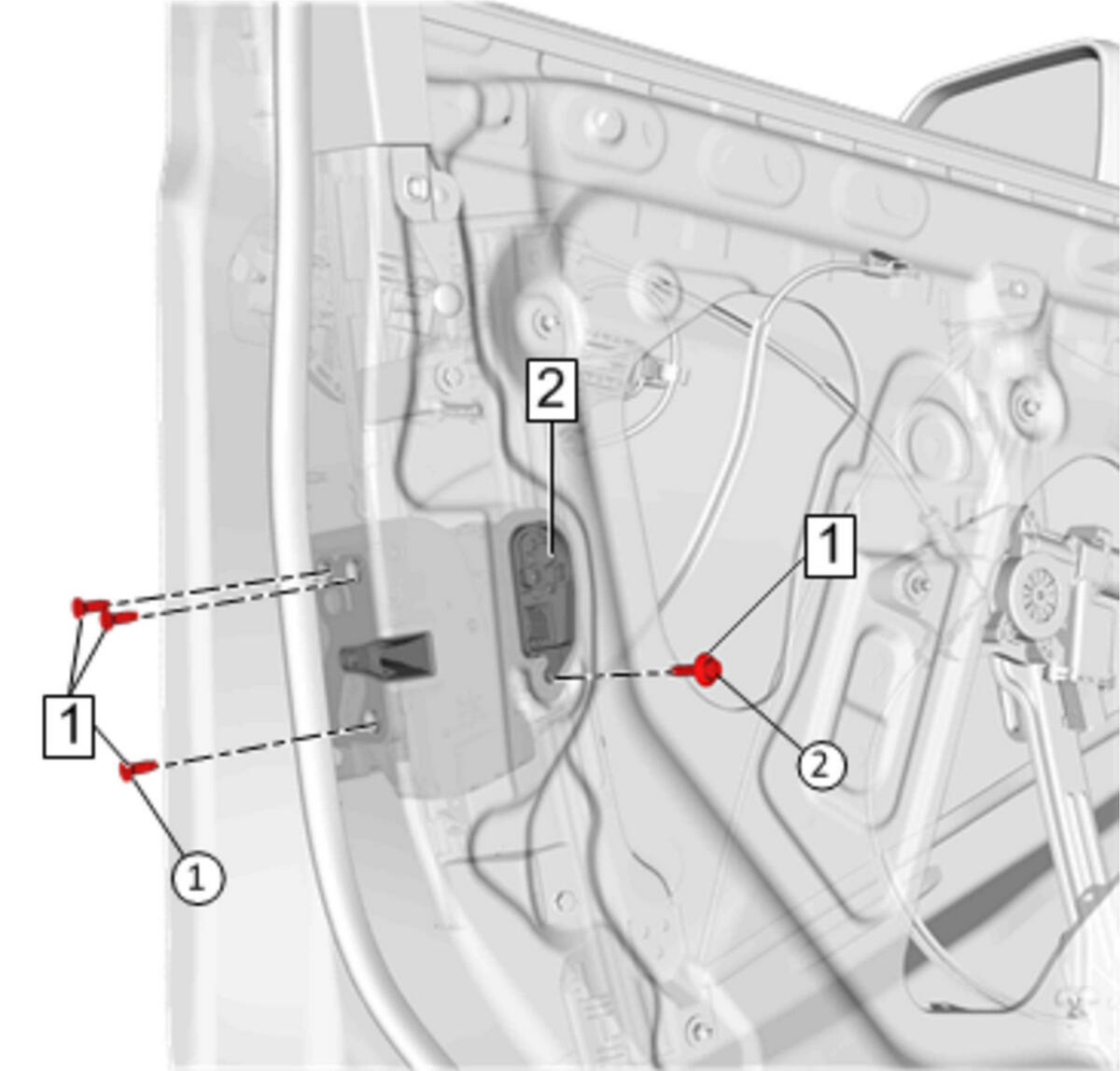

Front Side Door Latch Bolt (1) @ Front Side Door Latch (2) - Remove [ 4x ]
Courtesy of GENERAL MOTORS COMPANY

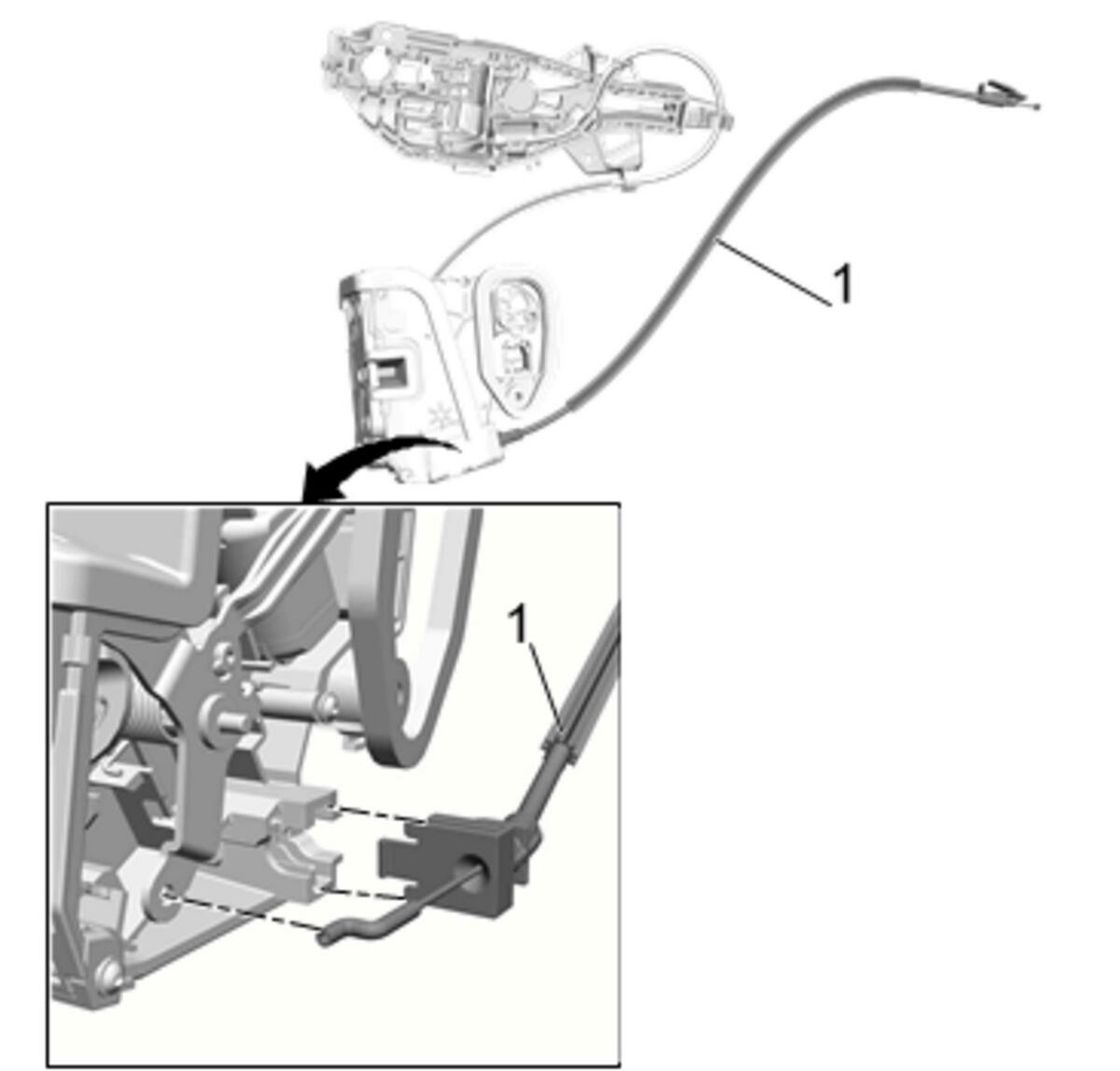

Front Side Door Outside Handle Cable (1) - Remove - Front Side Door Outside Handle Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

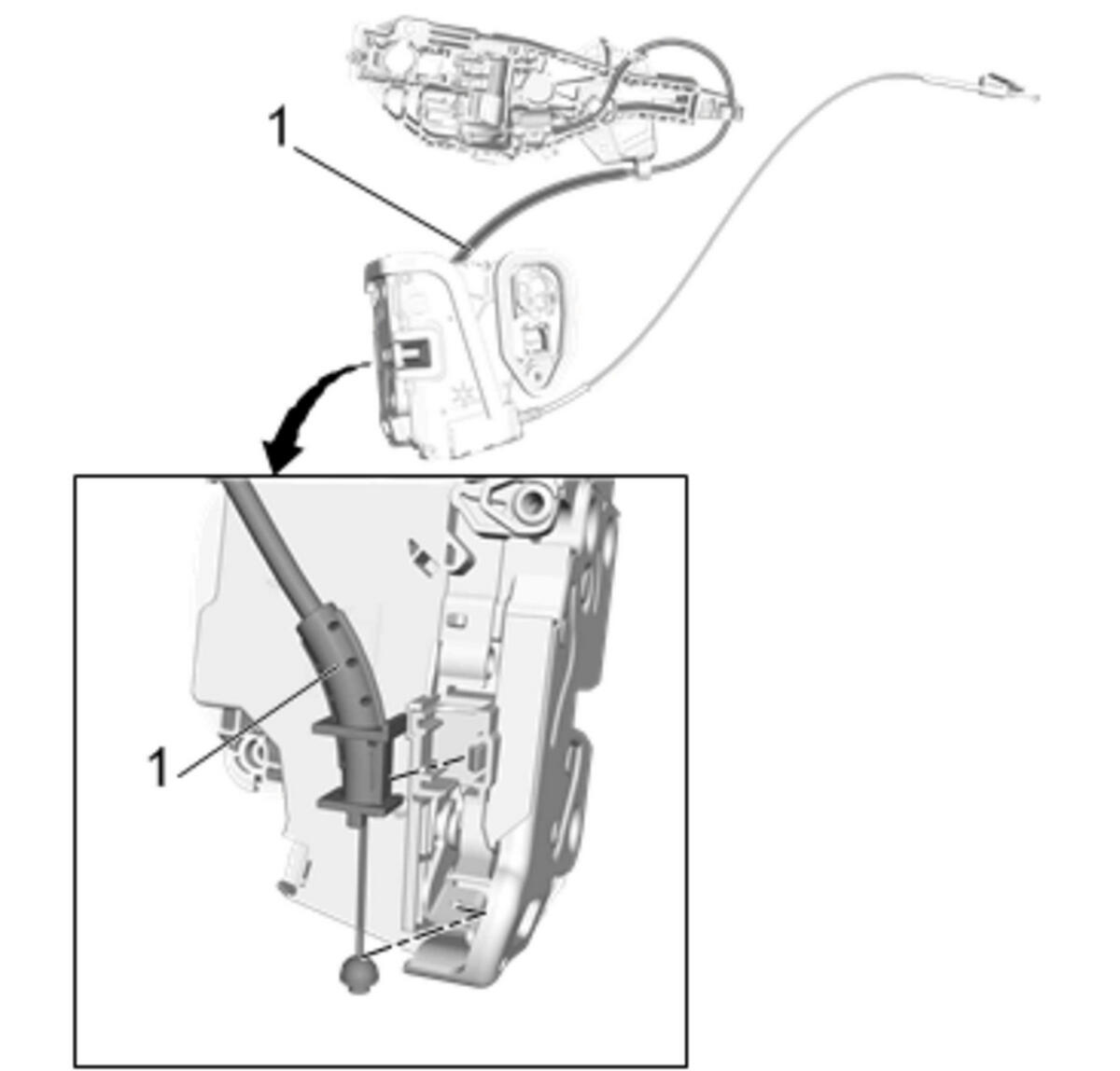

Front Side Door Inside Handle Cable (1) - Remove - Front Side Door Inside Handle Cable Replacement
