Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

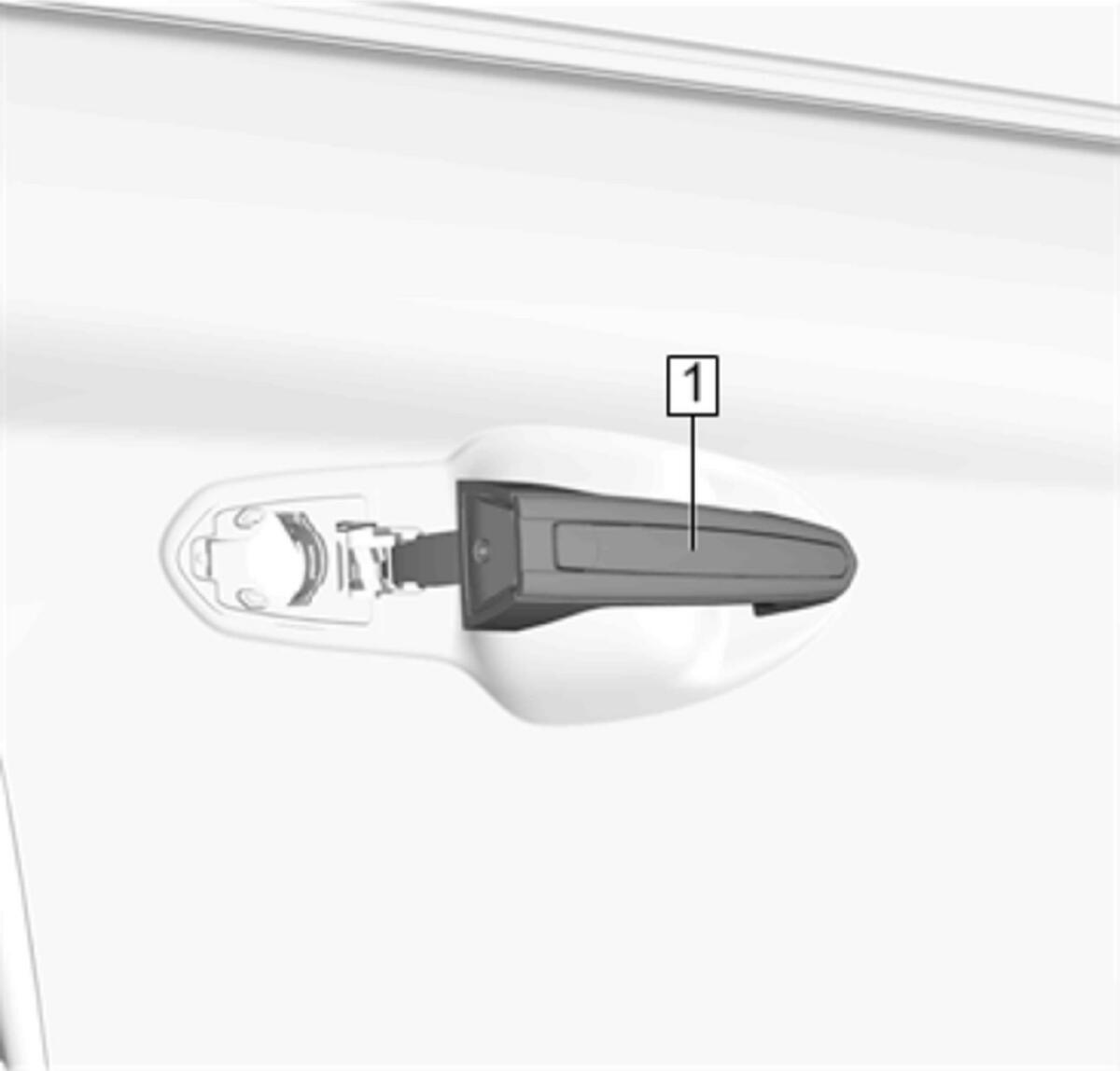

Pull the door handle (1) out to the open position.
Courtesy of GENERAL MOTORS COMPANY

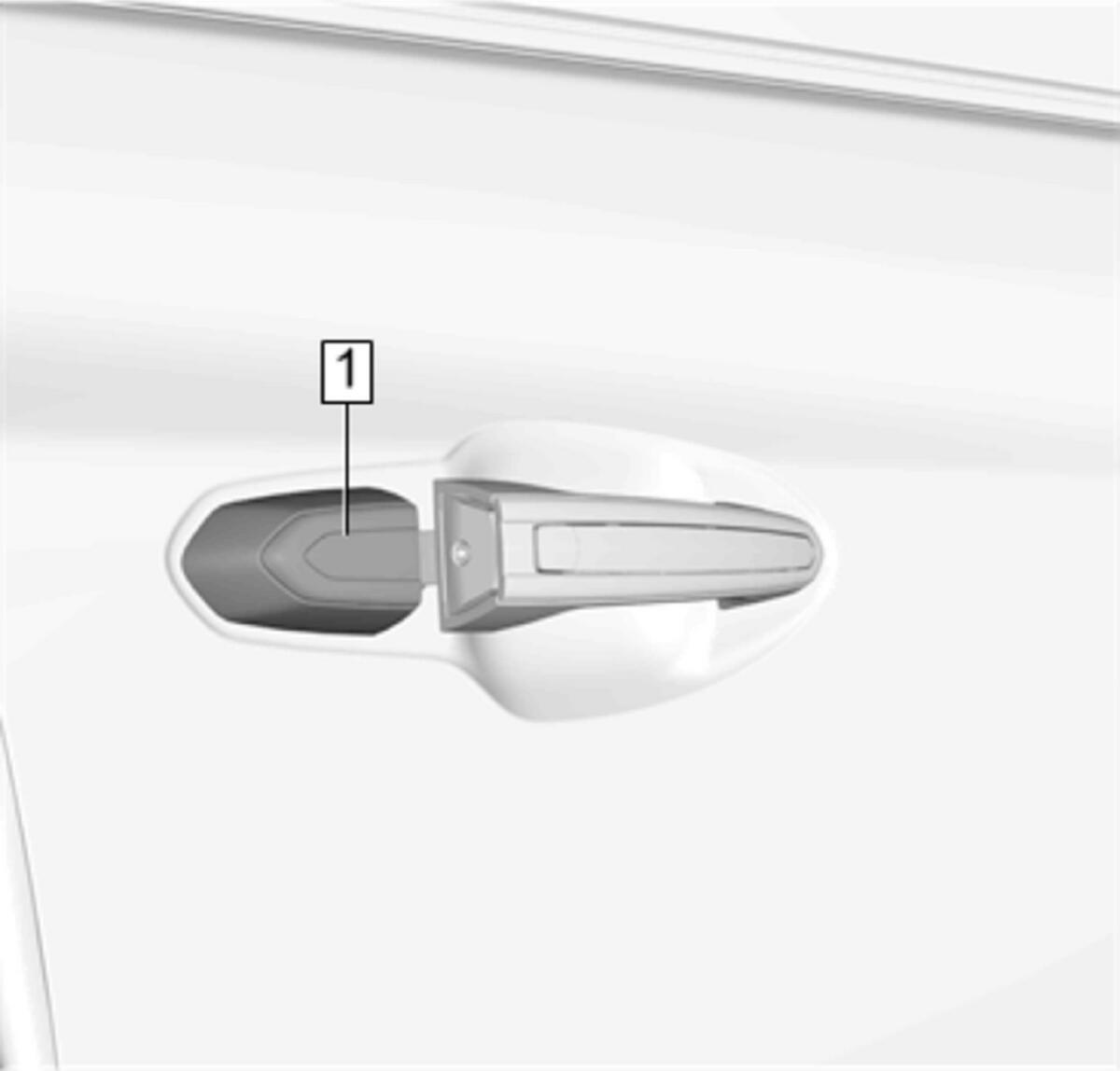

Front Side Door Lock Cylinder Opening Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

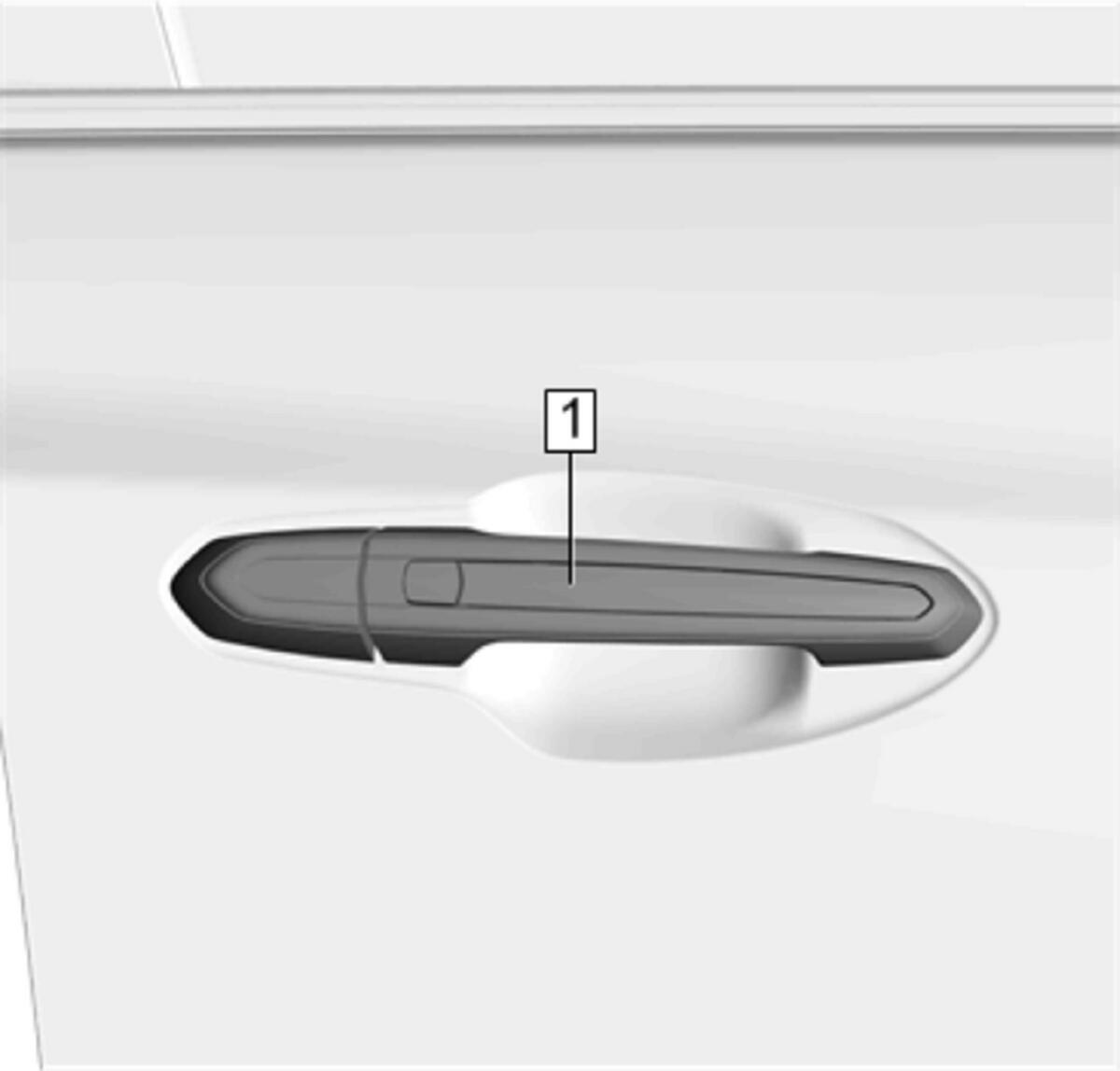

Place the front side door outside handle (1) in the closed position.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Side Door Lock Cylinder Opening Cover Screw (2) - Tighten 4.7 N.m (42 lb in)
Front Side Door Access Hole Cover (1) - Install
