Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure that the door lock cylinder is engage all the way into the side door handle locator tabs. Insert the key into the door lock cylinder, turn left to right checking for binding before install the assembly to the vehicle.

Install the lock cylinder retainer (1) to the front side door outside handle bracket assembly. (3)
Install the door lock cylinder (2) in the front side door outside handle bracket, push forward locking the lock cylinder (2) into the lock cylinder retainer.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Lock Cylinder Rod (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Latch (2) - Install - Front Side Door Latch Replacement
Courtesy of GENERAL MOTORS COMPANY

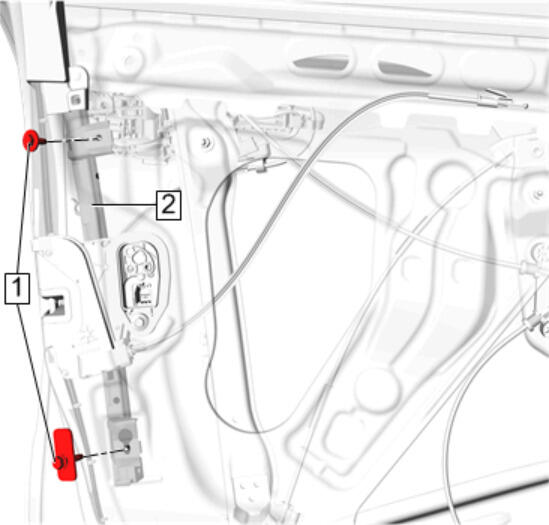

Front Side Door Window Channel Retainer (2) - Install - Front Side Door Window Channel Retainer Replacement
Courtesy of GENERAL MOTORS COMPANY

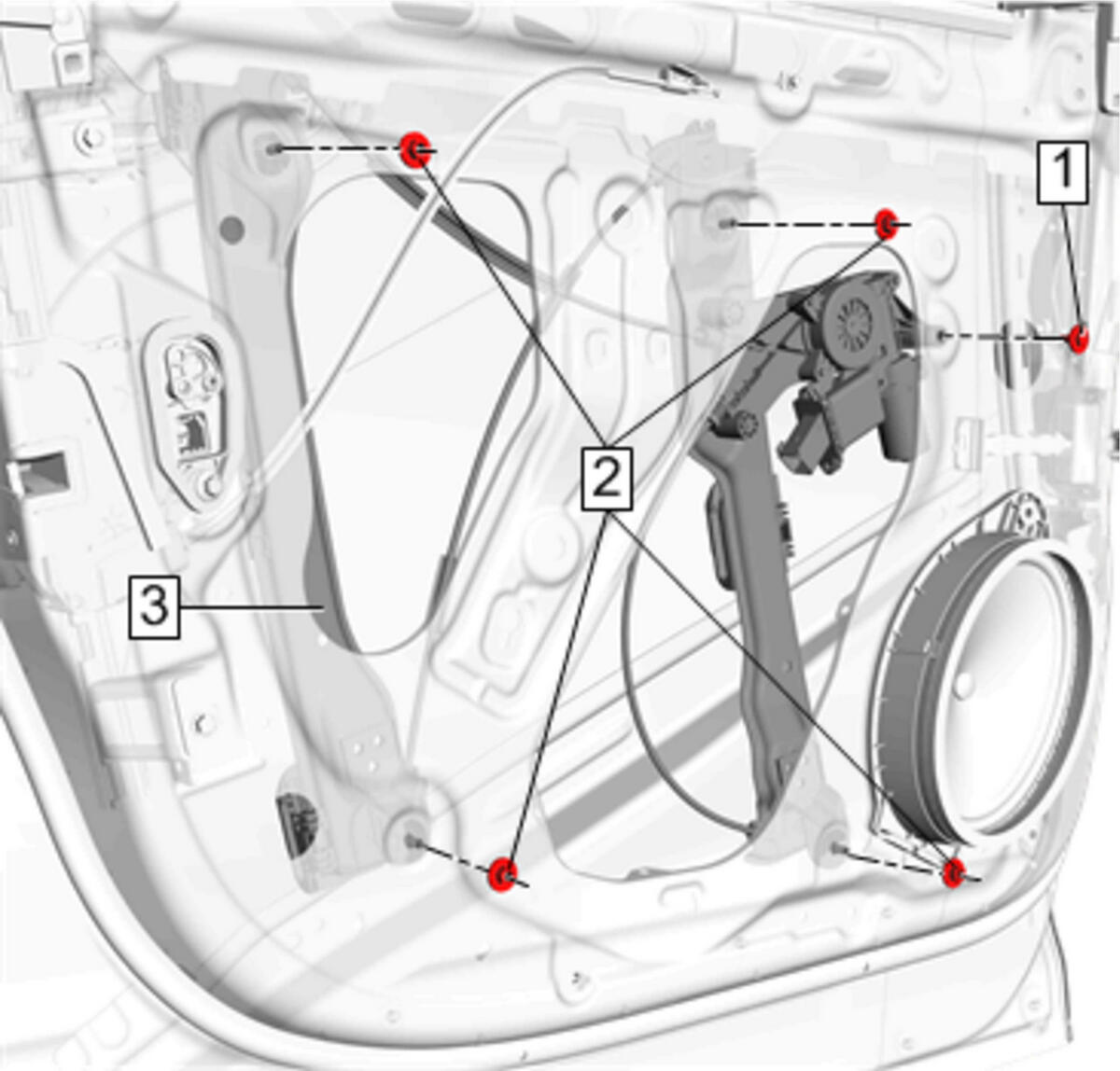

Front Side Door Window Regulator (3) - Install - Front Side Door Window Regulator Replacement
Courtesy of GENERAL MOTORS COMPANY

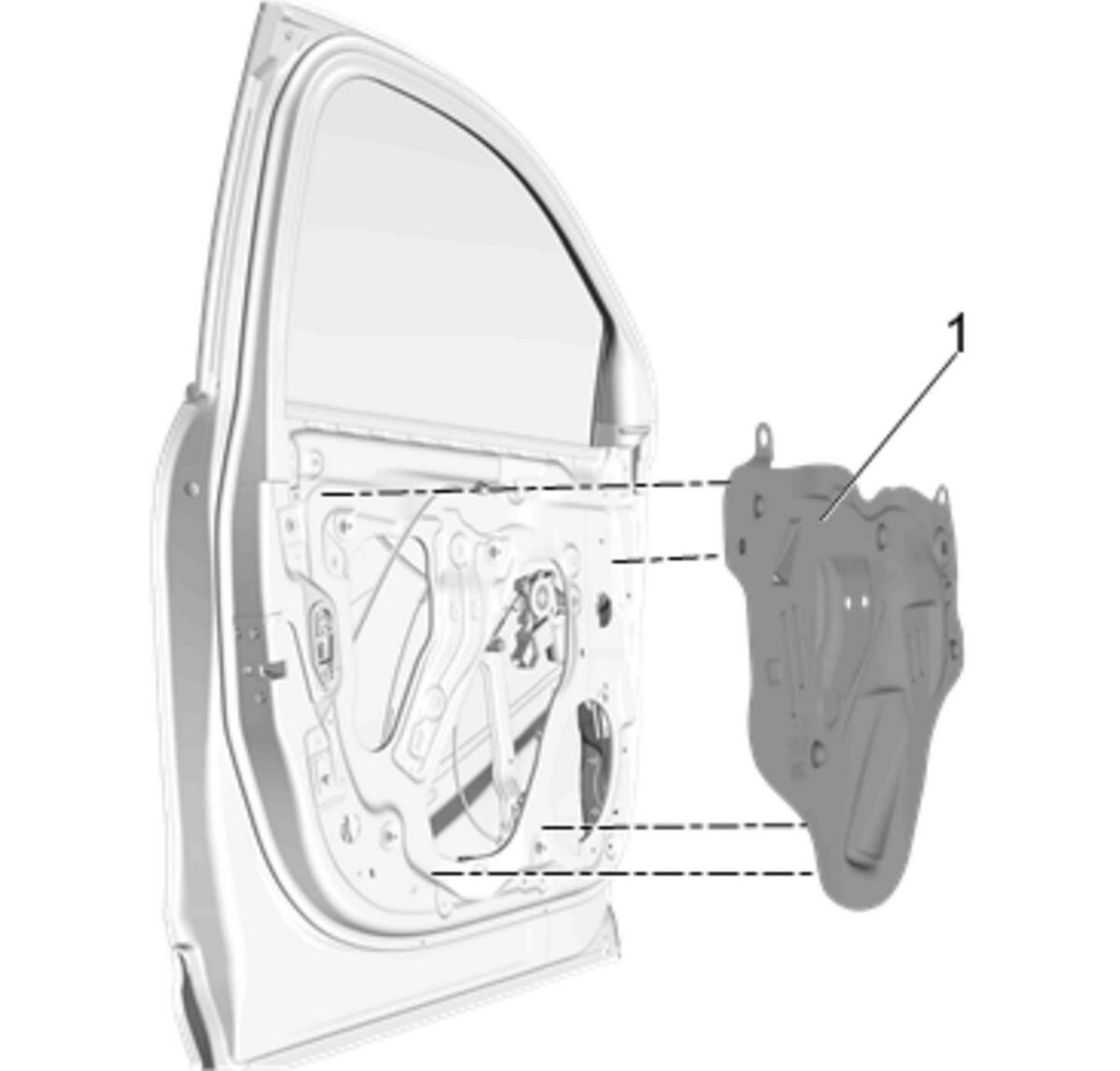

Front Side Door Water Deflector (1) - Install - Front Side Door Water Deflector Replacement (Equinox) , or Front Side Door Water Deflector Replacement (Terrain)
Ensure that the door lock system operates properly before installing the trim.
