Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Reset the front side door outside handle bracket counter balance (2) as follows:
1. The outside door handle Can Not be installed until the counter balance (2) is reset.
2. Grasp the front side door outside handle bracket (1) with one hand.
3. From the back side of the counter balance (2), push forward on the counter balance (2) until it can be held in place using the bracket clip. (3)
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket Cable (1) @ Counter Balance (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket Cable (1) @ Front Side Door Outside Handle Bracket Retainer (2) - Install [ 3x ]
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Lock Rod (1) @ Front Side Door Lock Cylinder (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Latch (2) - Install - Front Side Door Latch Replacement
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Side Door Outside Handle Bracket Screw (1) - Install and tighten 5 N.m (44 lb in)

NOTE:

Ensure that the counter balance is reset and locked in the detent of the handle bracket. The counter balance Can Not be reset after the handle bracket has been reinstalled in the door.
Bracket should be slid full rearward prior to tightening bracket screw.

Courtesy of GENERAL MOTORS COMPANY

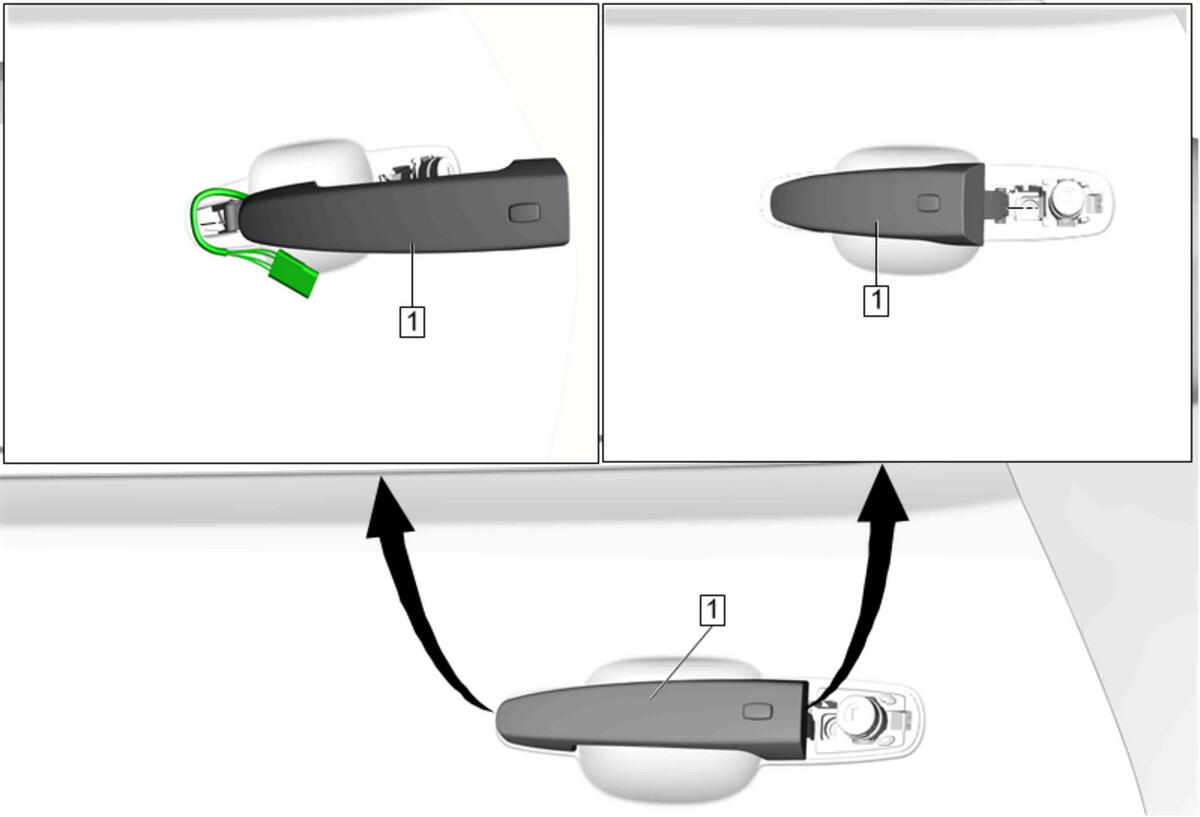

Front Side Door Outside Handle (1) - Install - Front Side Door Outside Handle Replacement
Ensure the door system operates properly.
