Liftgate Side Sensor Replacement (Equinox)

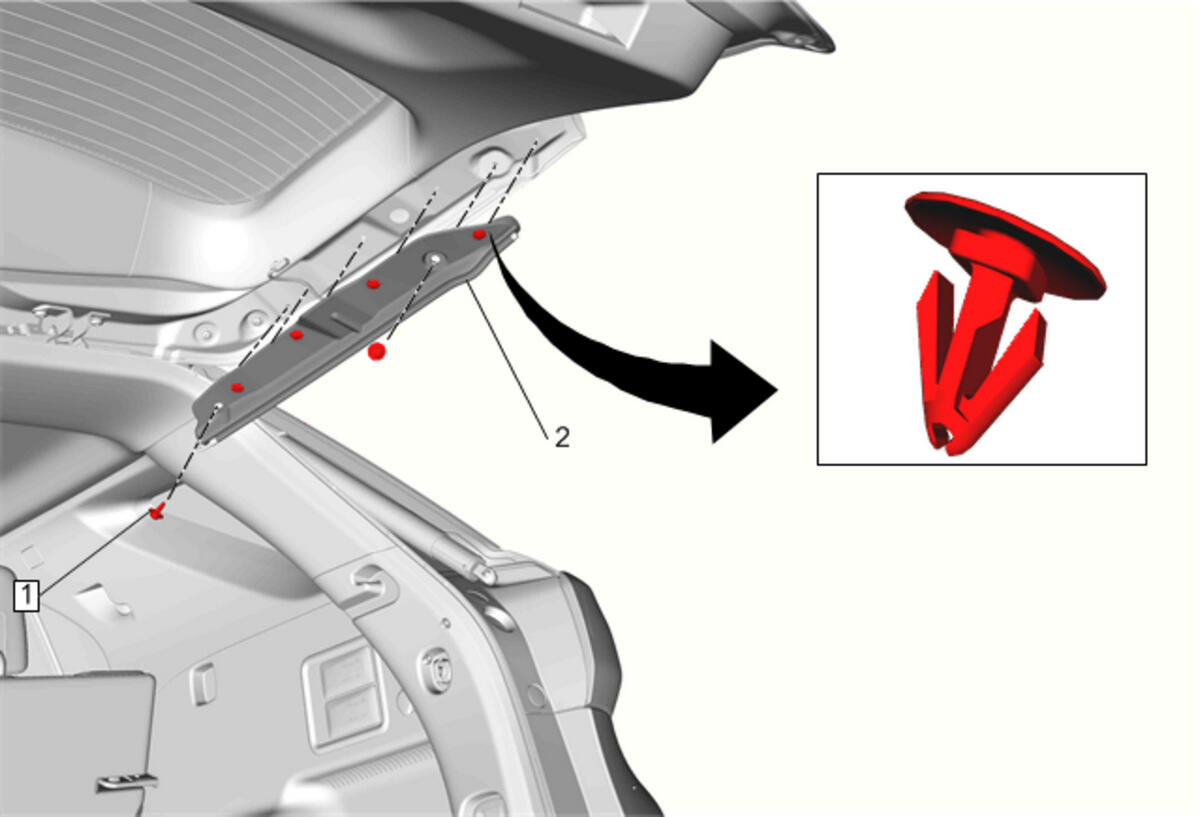

GM4576524Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the liftgate.
1 Liftgate Side Sensor Bolt [ 2x ]
CAUTION:

Refer to Fastener Caution .


6 N.m (53 lb in)
2 Liftgate Side Sensor

Procedure

  1. Using a trim type tool release the 4 remaining retainers.
  2. Disconnect the electrical connector.
