Liftgate Side Sensor Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

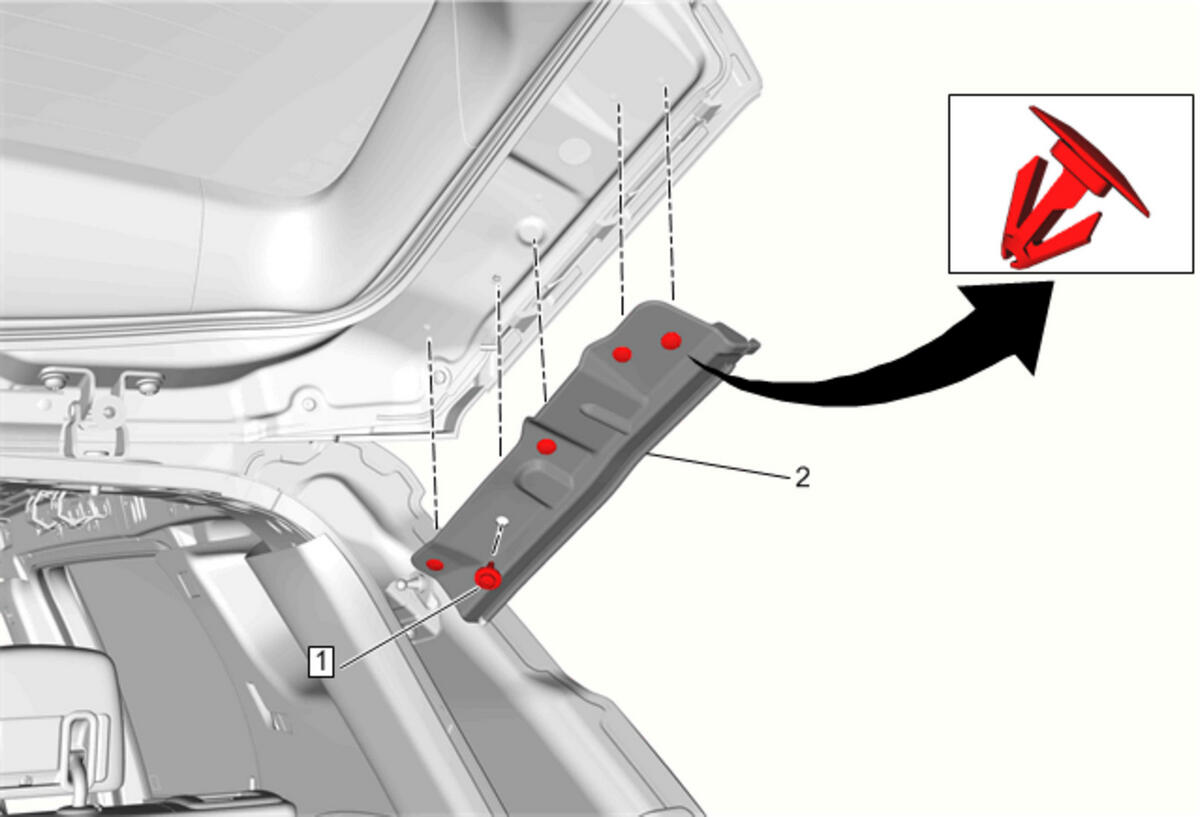

Callout	Component Name
Preliminary Procedure Liftgate Upper Side Trim Finish Panel Replacement
1	Liftgate Side Sensor Bolt CAUTION: Refer to Fastener Caution . 6 N.m (53 lb in)
2	Liftgate Side Sensor Procedure Using a trim type tool release the 4 remaining retainers. Disconnect the electrical connector.

Callout

Component Name

Liftgate Side Sensor Bolt

CAUTION:

6 N.m (53 lb in)

Liftgate Side Sensor

Procedure
