Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Inside Handle Cable (1) - Install - Rear Side Door Inside Handle Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Outside Handle Cable (1) - Install - Rear Side Door Outside Handle Cable Replacement
Transfer components as necessary.
Courtesy of GENERAL MOTORS COMPANY

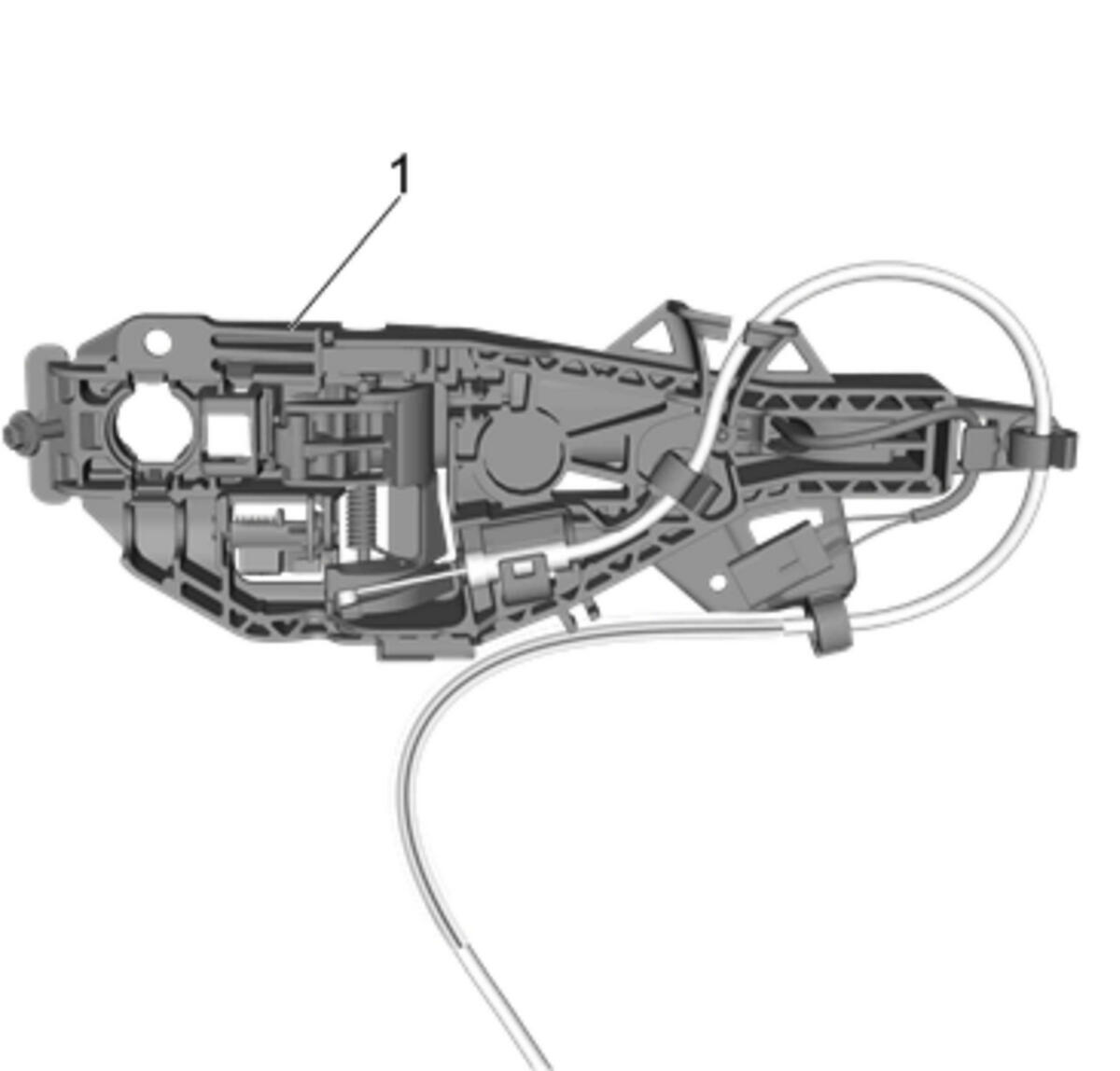

Rear Side Door Outside Handle Bracket (1) - Install - Rear Side Door Outside Handle Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

NOTE:
Tighten in proper sequence to prevent damage to the latch mechanism.

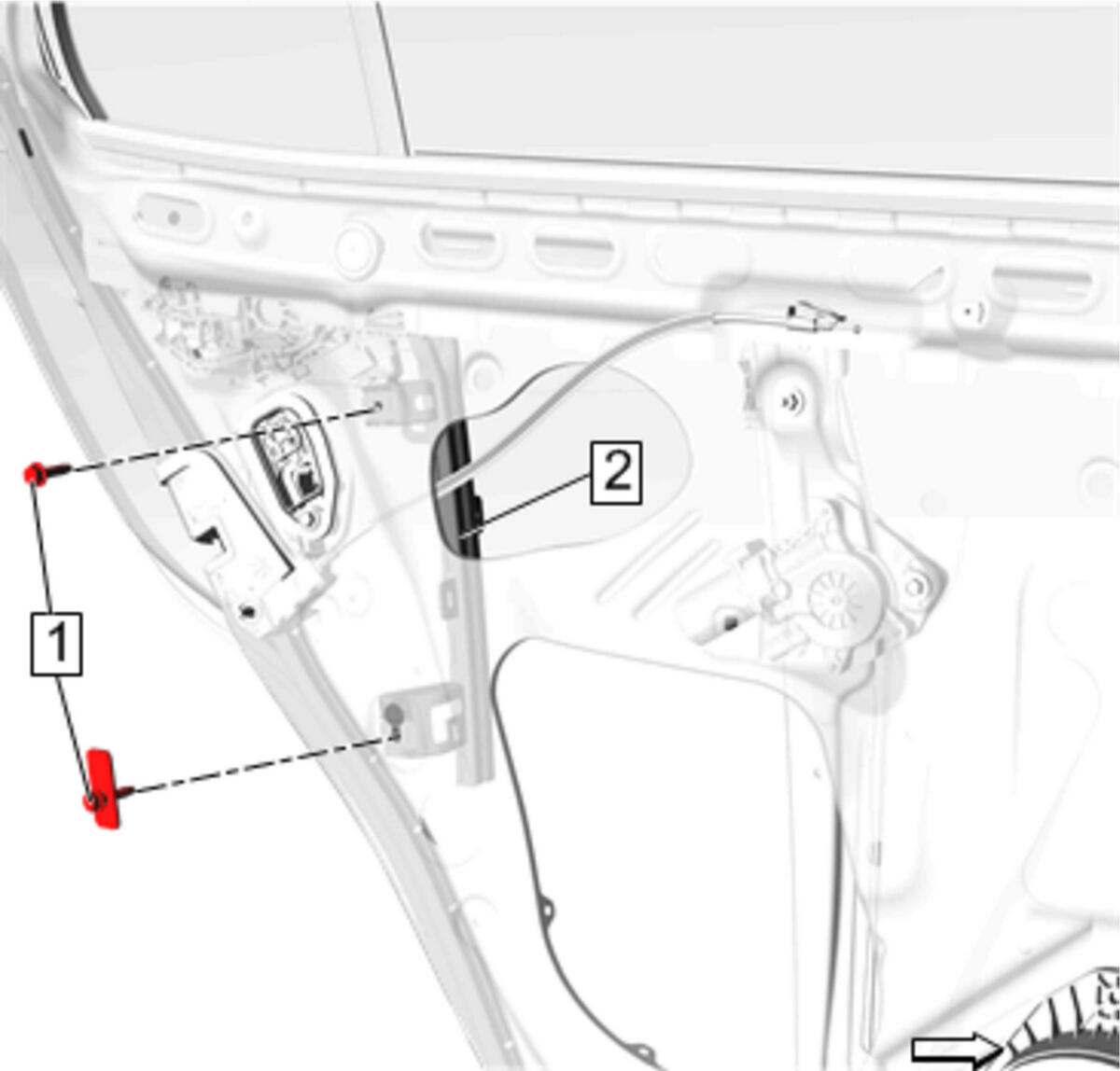

Rear Side Door Latch Bolt (1) - Install and tighten [ 4x ] 9 Nm (80 lb in)
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Window Channel Rear Retainer (2) - Install - Rear Side Door Window Channel Rear Retainer Replacement
Rear Side Door Water Deflector - Install - Rear Side Door Water Deflector Replacement (Equinox) , or Rear Side Door Water Deflector Replacement (Terrain)
Inspect the door latch, window and outside handle for proper operation before installing the door trim.
