Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Install the front part of the rear side door outside handle (1) into the rear side door outside handle bracket.
Courtesy of GENERAL MOTORS COMPANY

Install the rear part of the rear side door outside handle (1) into the rear side door outside handle bracket and slide the rear side door outside handle forward.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

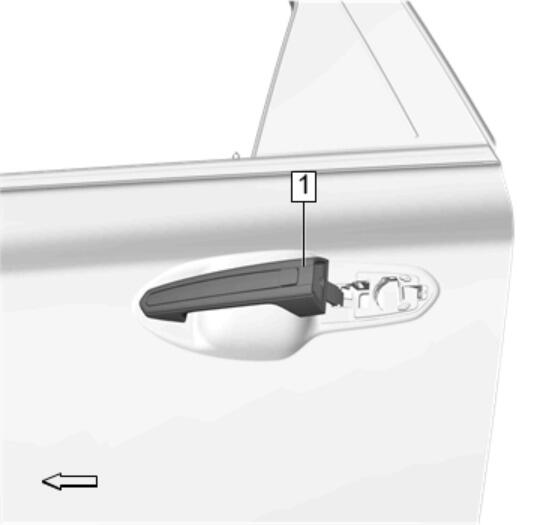

Pull the rear side door outside handle (1) to the open position.
Courtesy of GENERAL MOTORS COMPANY

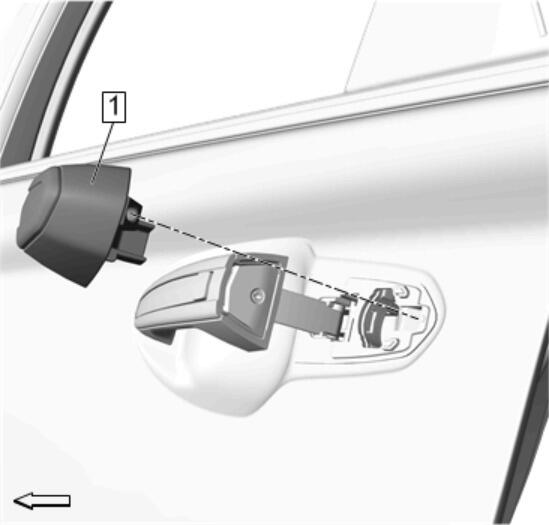

Rear Side Door Lock Cylinder Opening Cover (1) - Install - Rear Side Door Lock Cylinder Opening Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

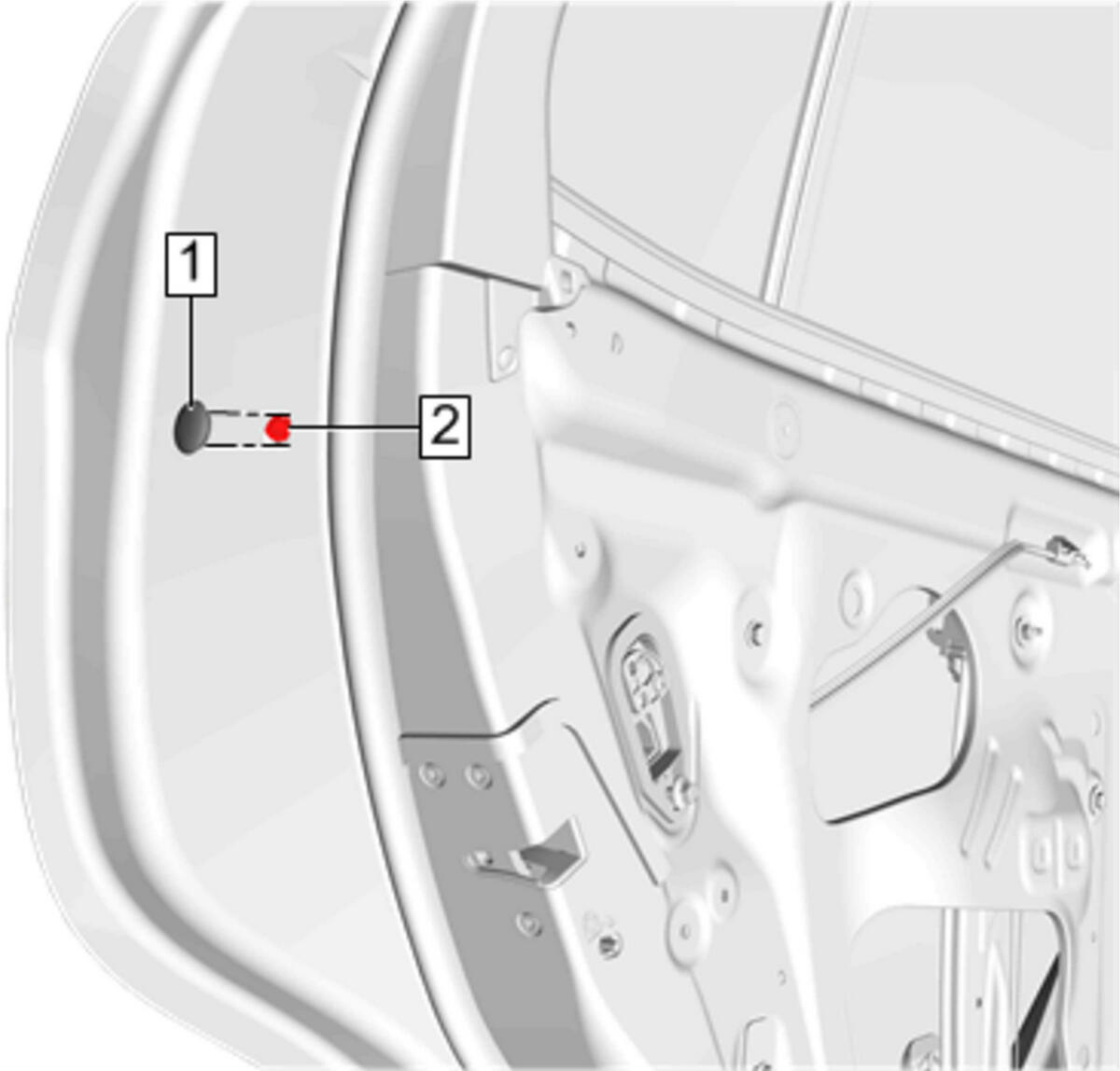

Rear Side Door Lock Cylinder Opening Cover Screw (2) - Tighten 4.7 Y (42 lb in)
Rear Side Door Access Hole Cover (1) - Install
Rear Side Door Water Deflector - Install - Rear Side Door Water Deflector Replacement (Equinox) , or Rear Side Door Water Deflector Replacement (Terrain)
