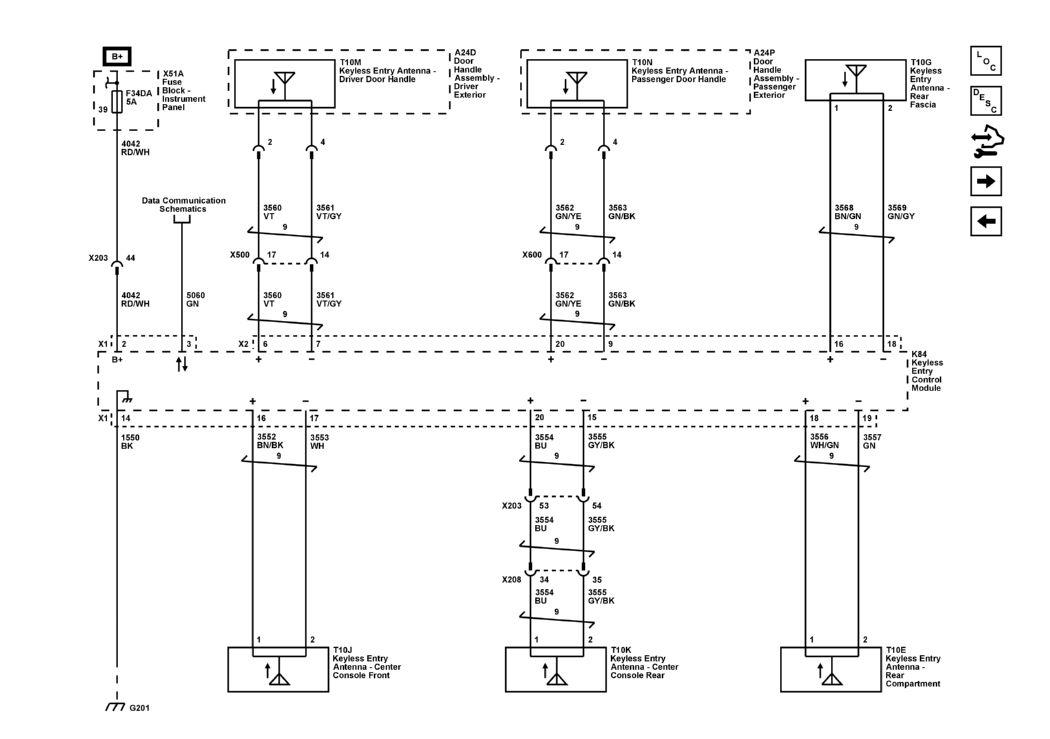

Keyless Entry - Passive and Keyless Start
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
