Driver Seat Adjuster Memory Module Replacement

Courtesy of GENERAL MOTORS COMPANY

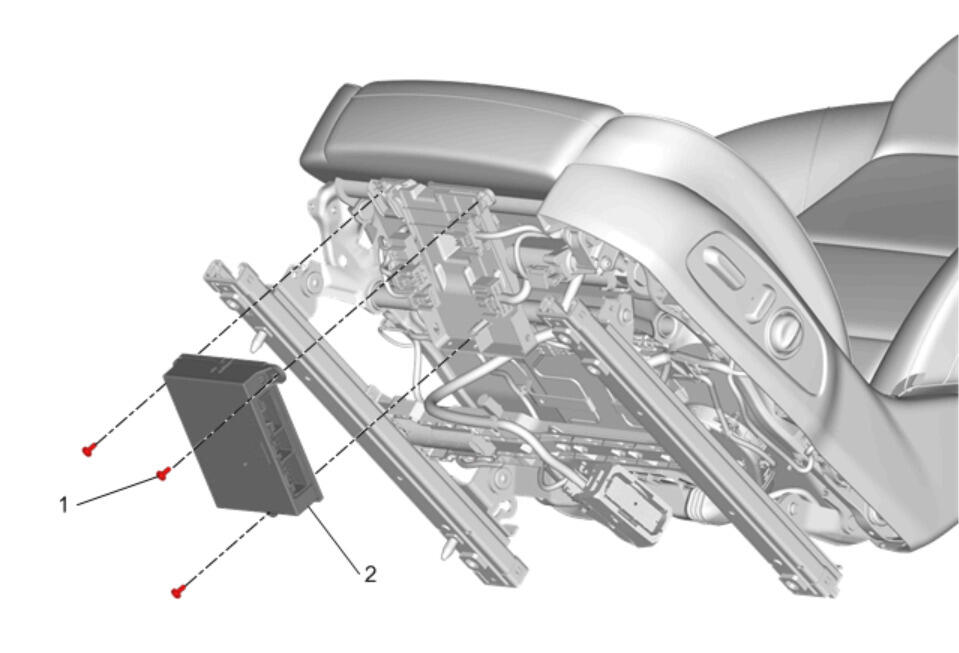

Callout	Component Name
Preliminary Procedure Front Seat Removal and Installation
1	Driver Seat Adjuster Memory Module Fastener [ 3x ] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb/in)
2	Driver Seat Adjuster Memory Module Procedure Disconnect all electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Driver Seat Adjuster Memory Module Fastener [ 3x ]

CAUTION:

Tighten
2.5 N.m (22 lb/in)

Driver Seat Adjuster Memory Module

Procedure

Disconnect all electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
