Removal Procedure
WARNING:
Refer to Brake Fluid Irritant Warning .
CAUTION:
Refer to Brake Fluid Effects on Paint and Electrical Components Caution .
CAUTION:
Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.
- Place the ignition switch in the OFF position.

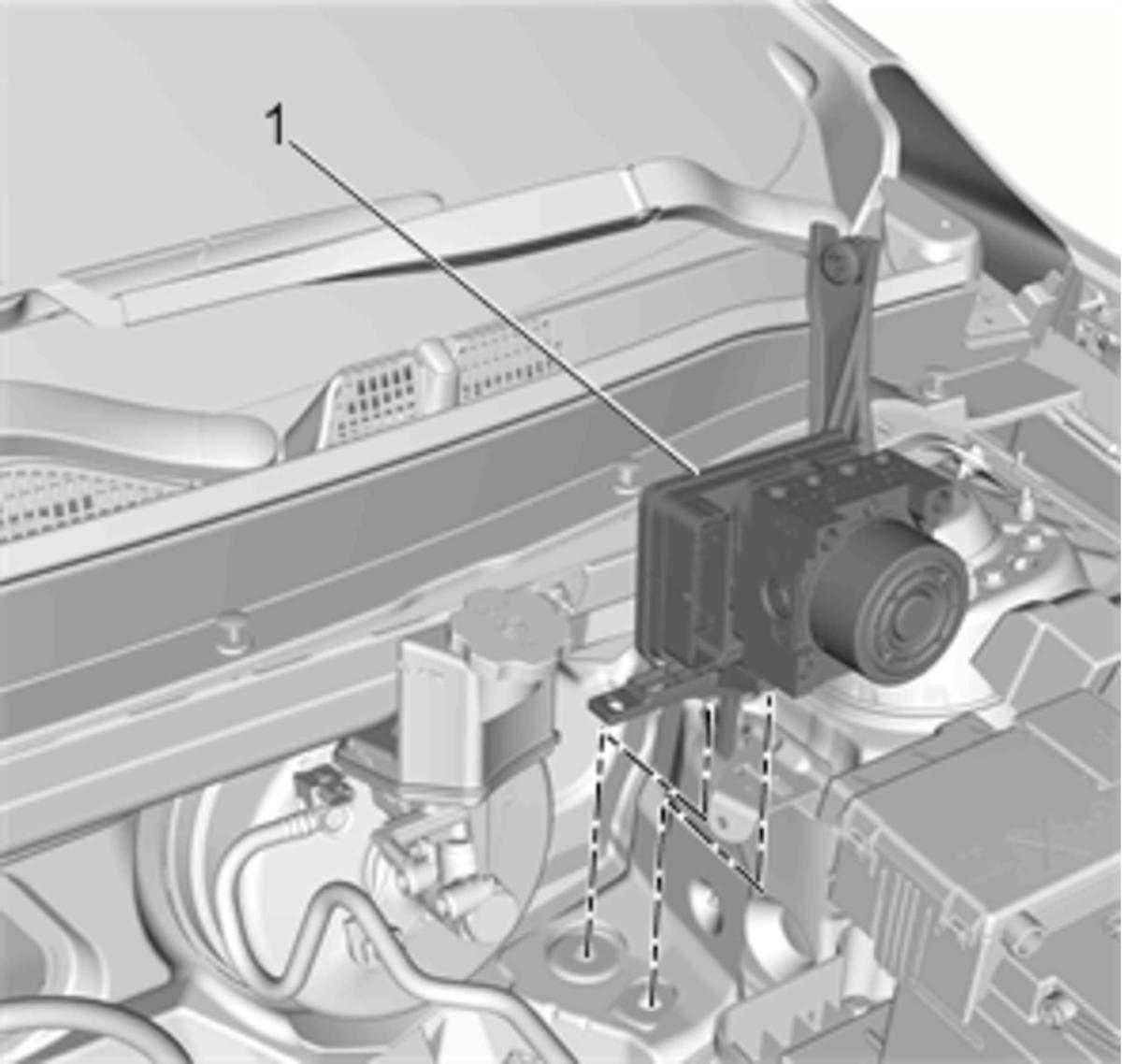

Electronic Brake Control Module with Brake Pressure Modulator Valve (1) - Remove - Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement

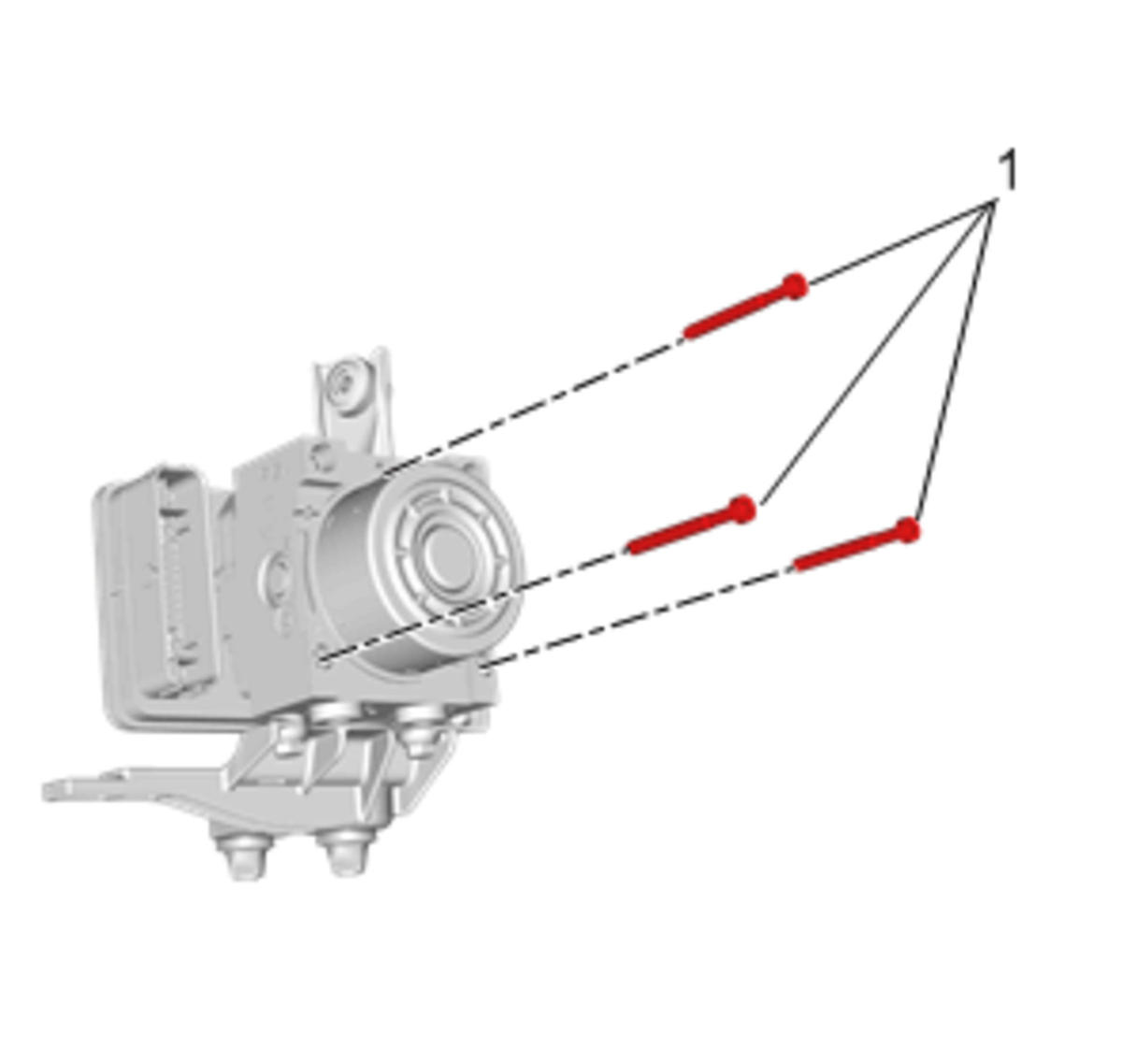

Electronic Brake Control Module Bolt (1) - Remove [ 3x ]

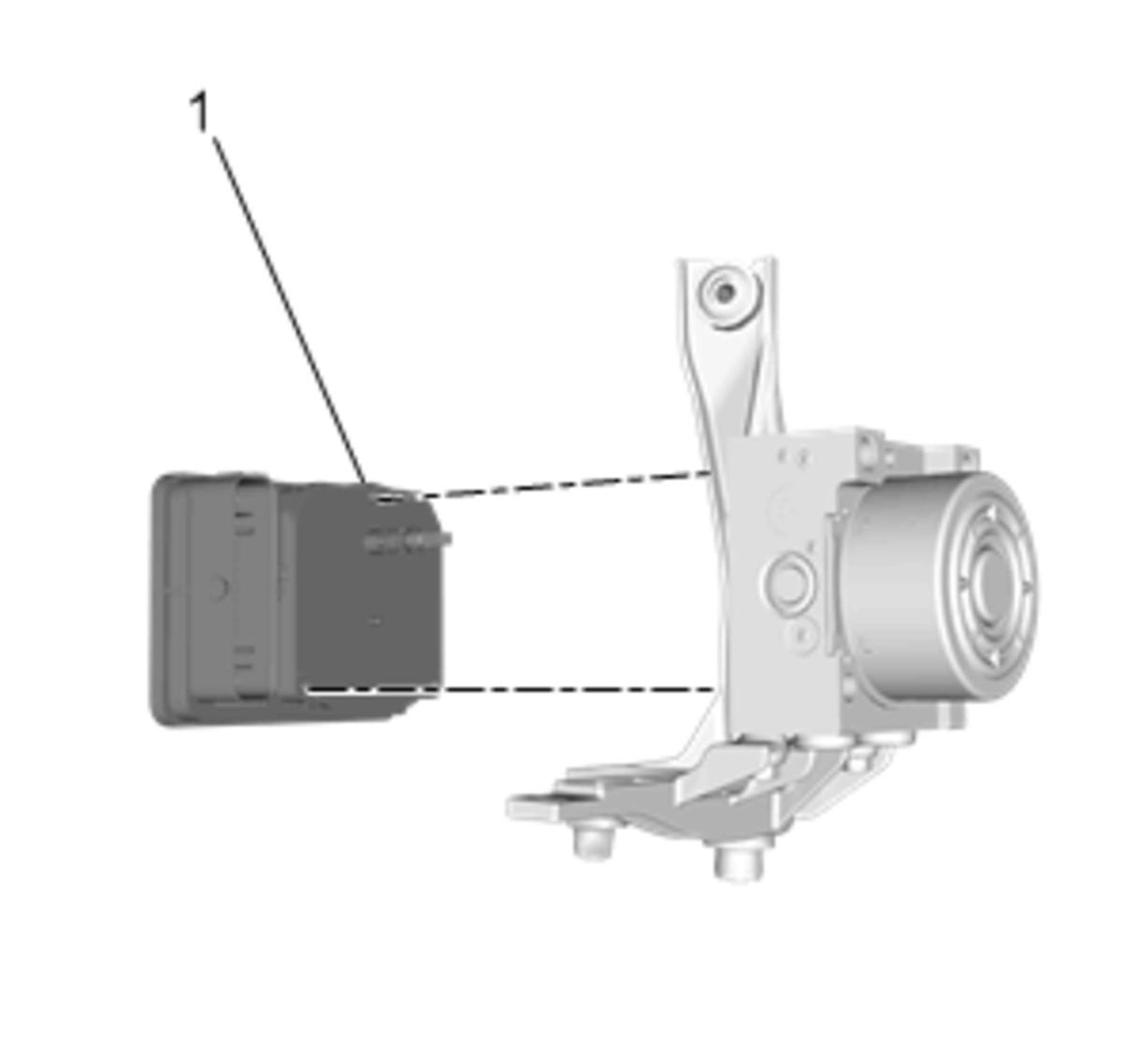

Electronic Brake Control Module (1) - Remove
