Installation Procedure

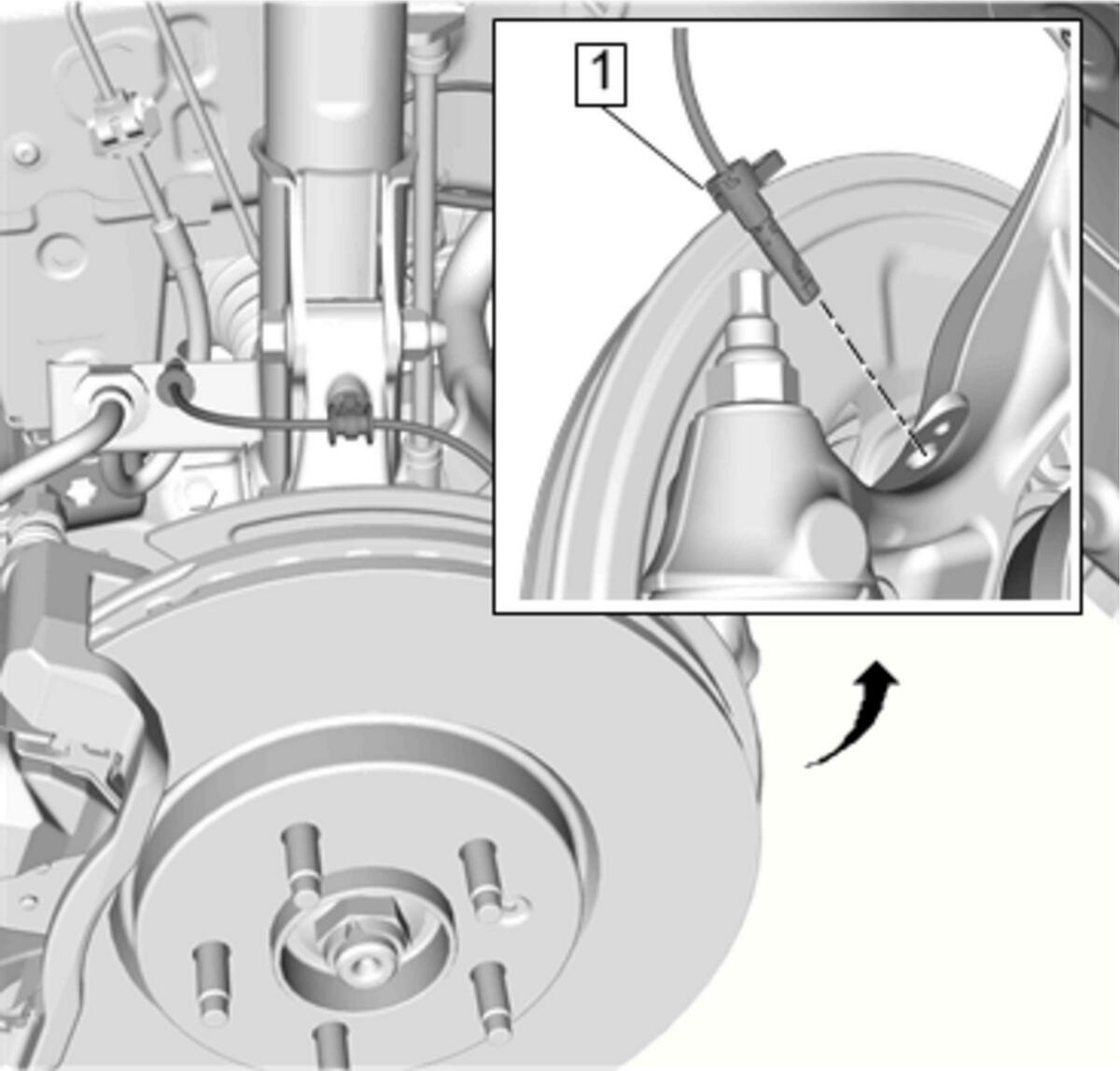

  1. GM4583875Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor - Install

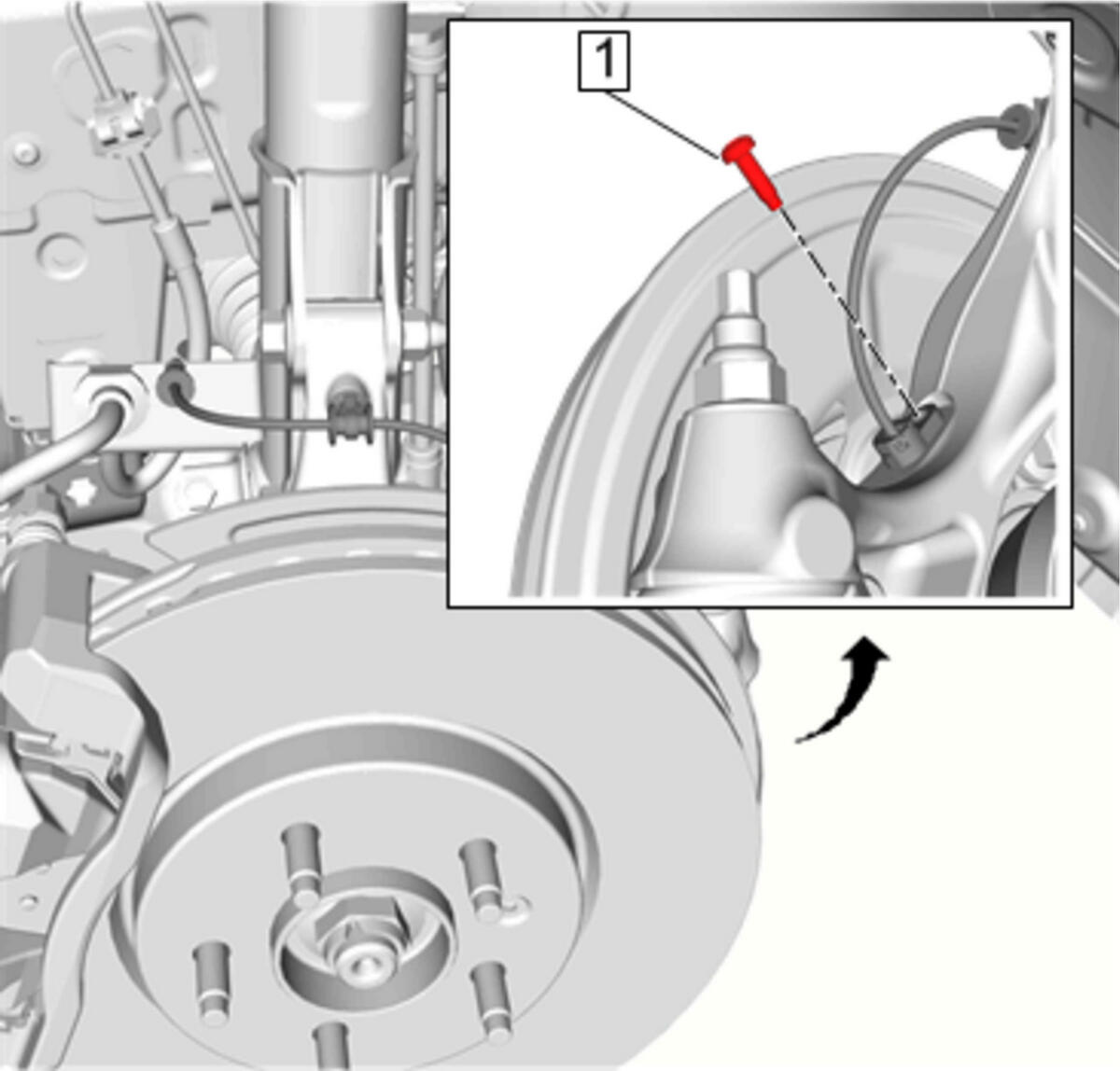

  2. GM4583873Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Wheel Speed Sensor Bolt - (1) Install and tighten 6 N.m (53 lb/in)

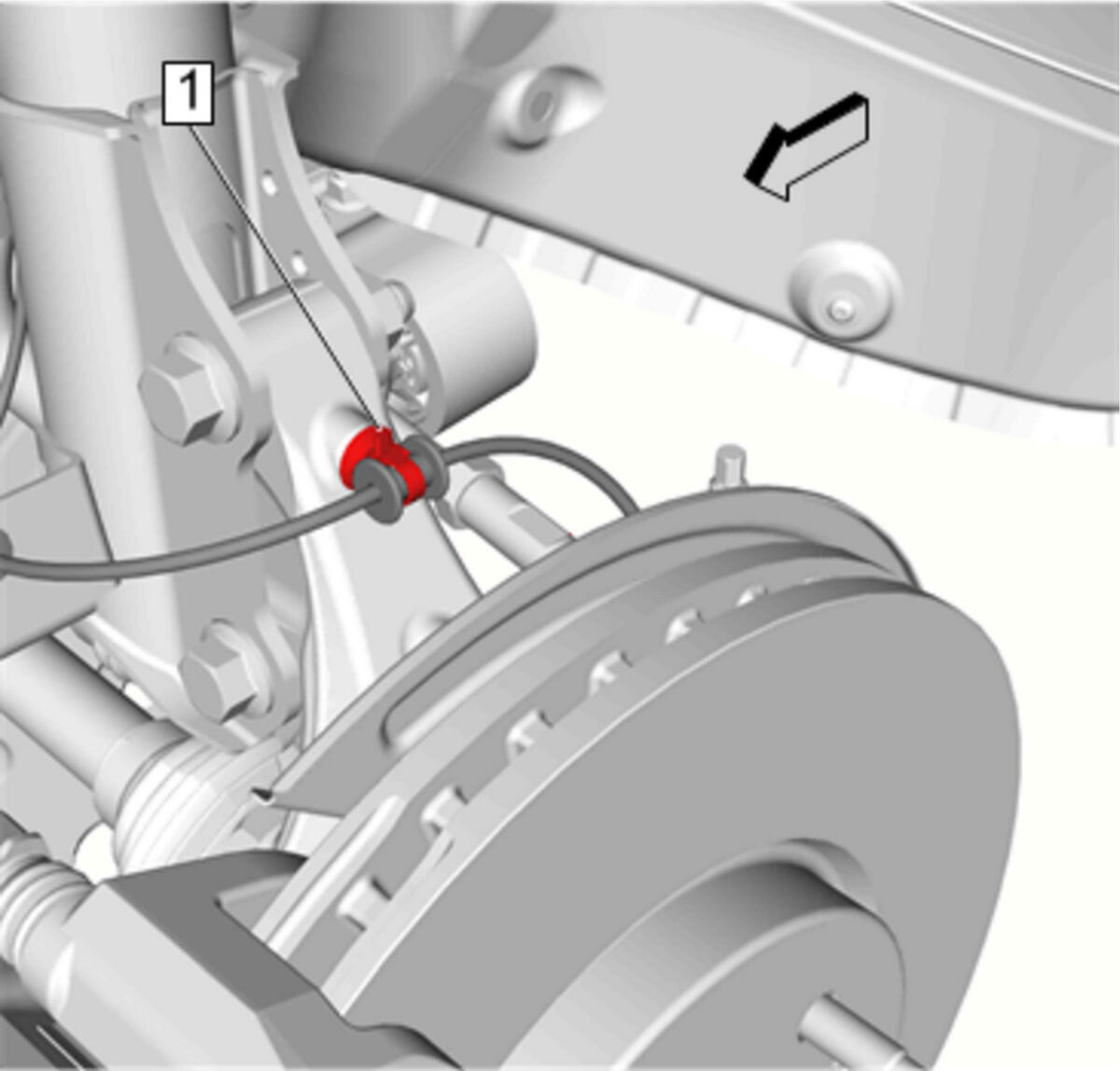

  3. GM4583866Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Harness Retainer (1) - Secure

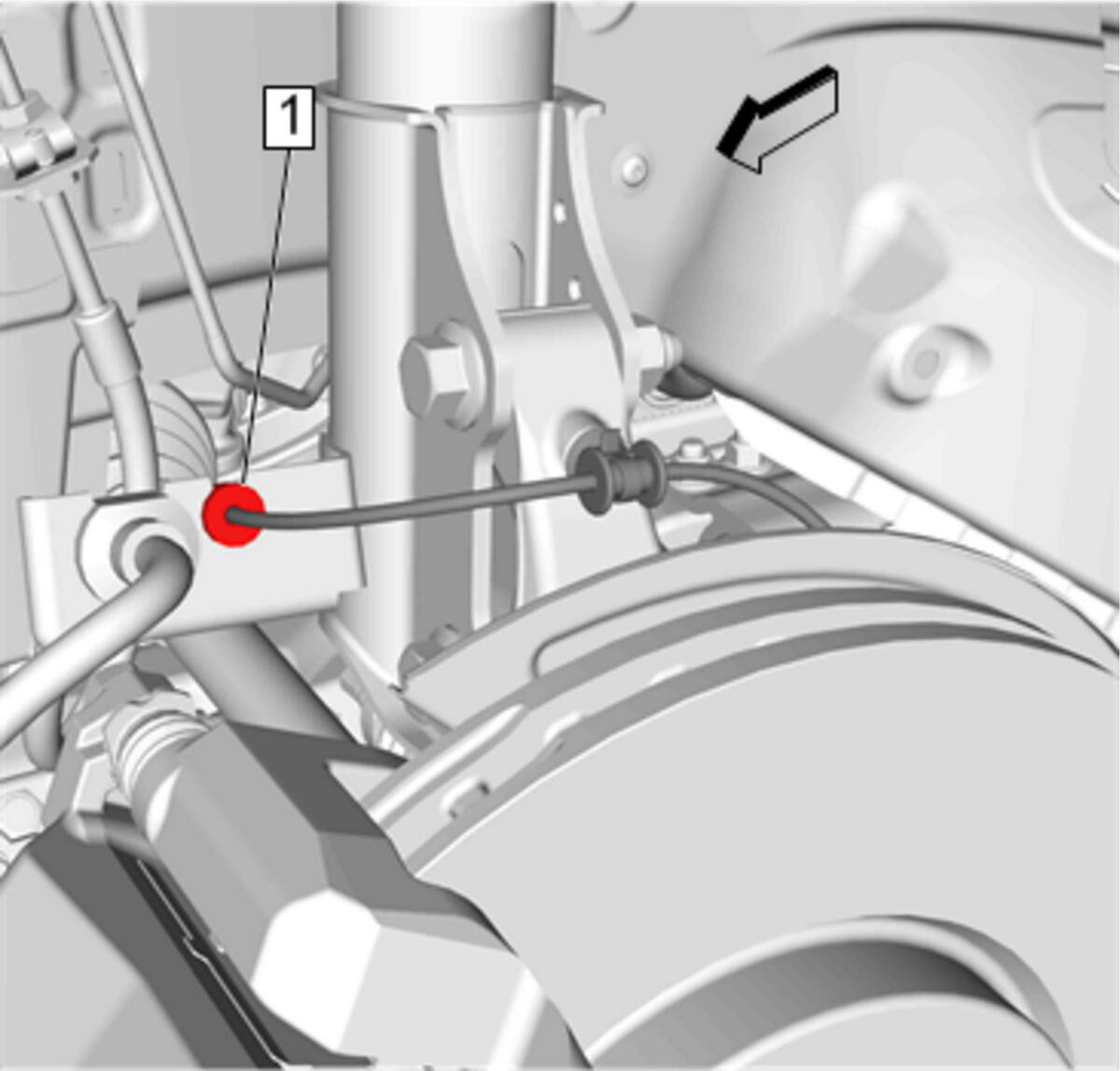

  4. GM4583865Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Harness Grommet (1) - Secure

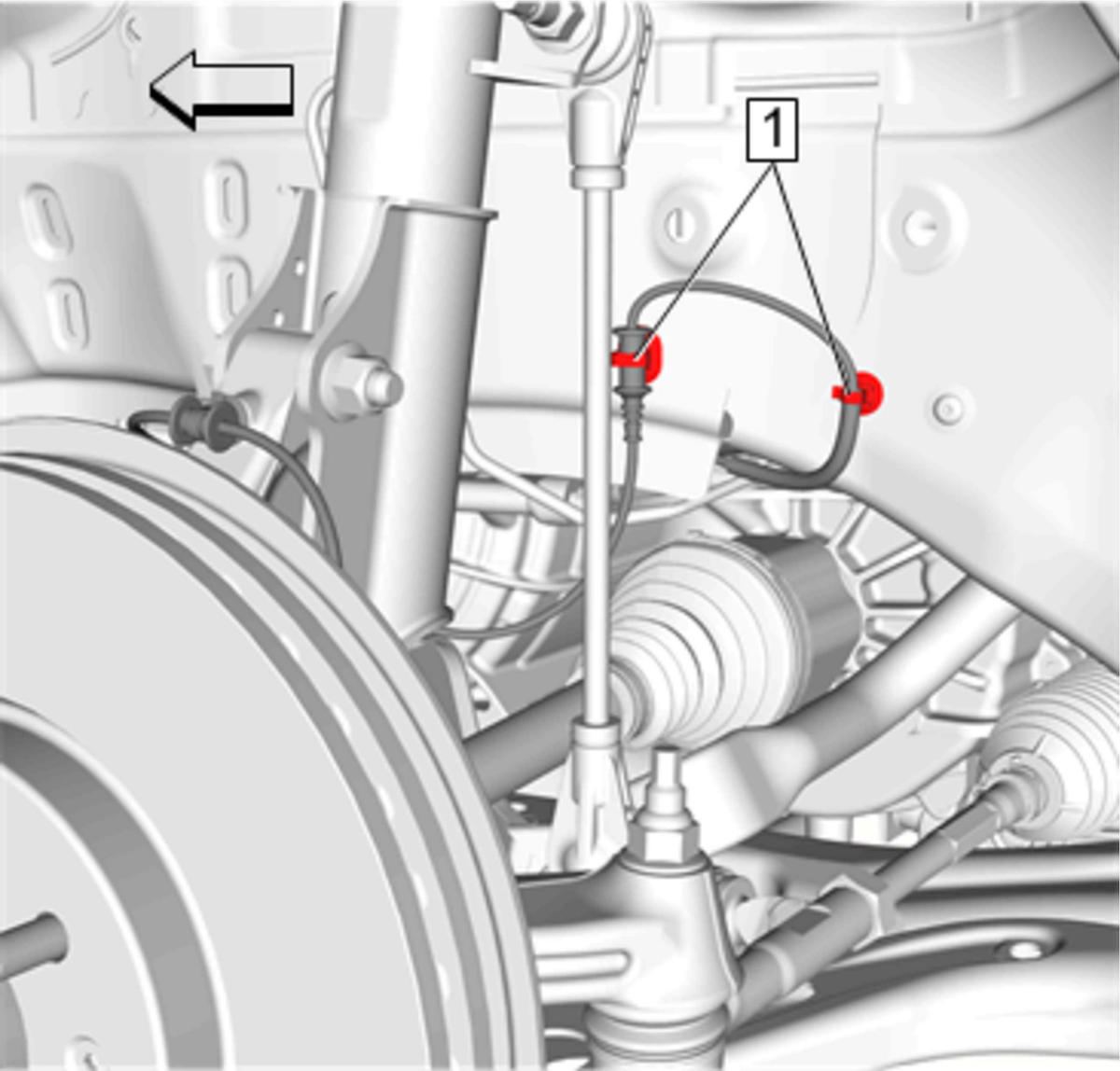

  5. GM4583864Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Harness Retainer (1) - Secure [ 2x ]

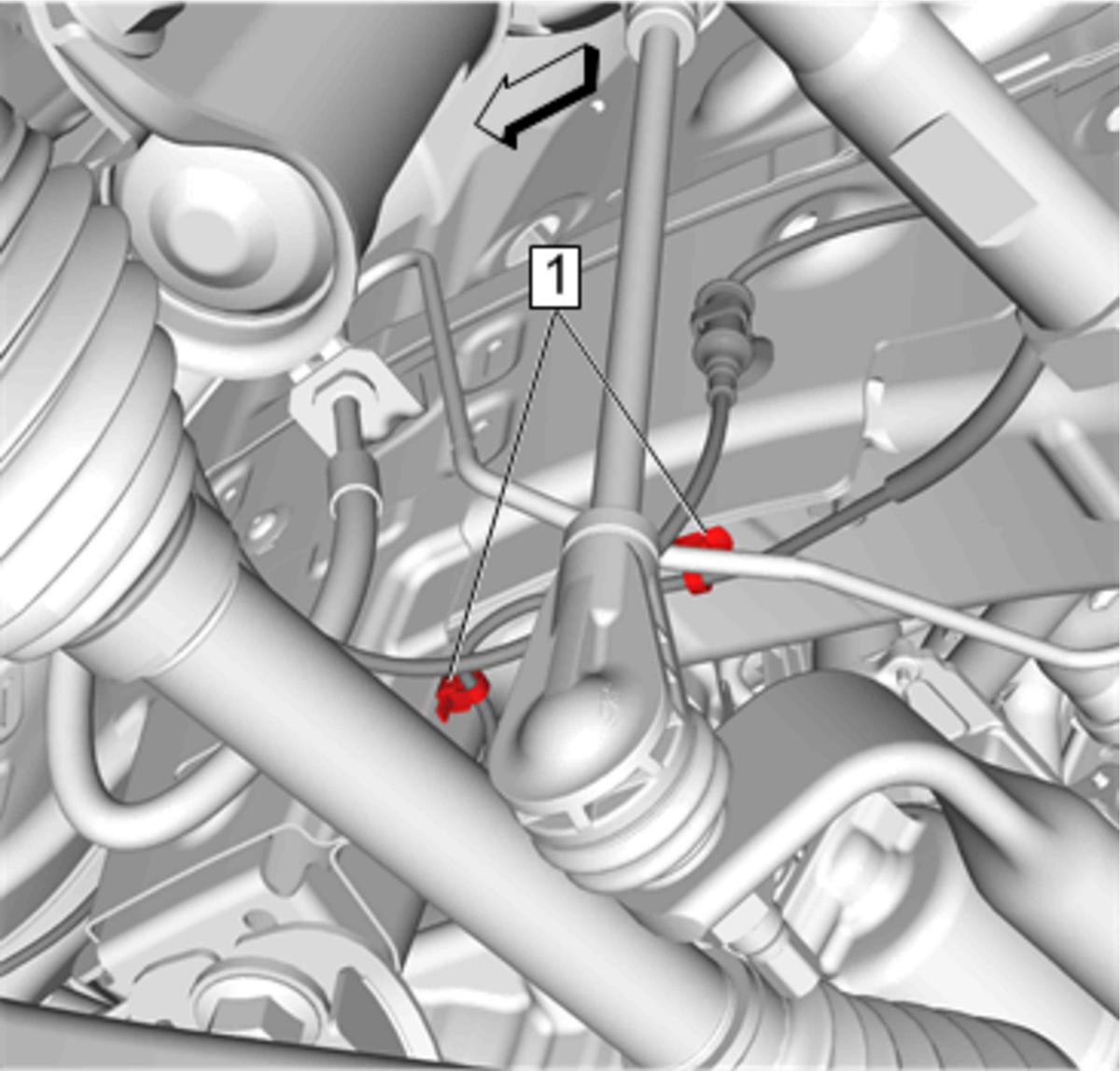

  6. GM4583862Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Harness Retainer (1) - Secure [ 2x ]

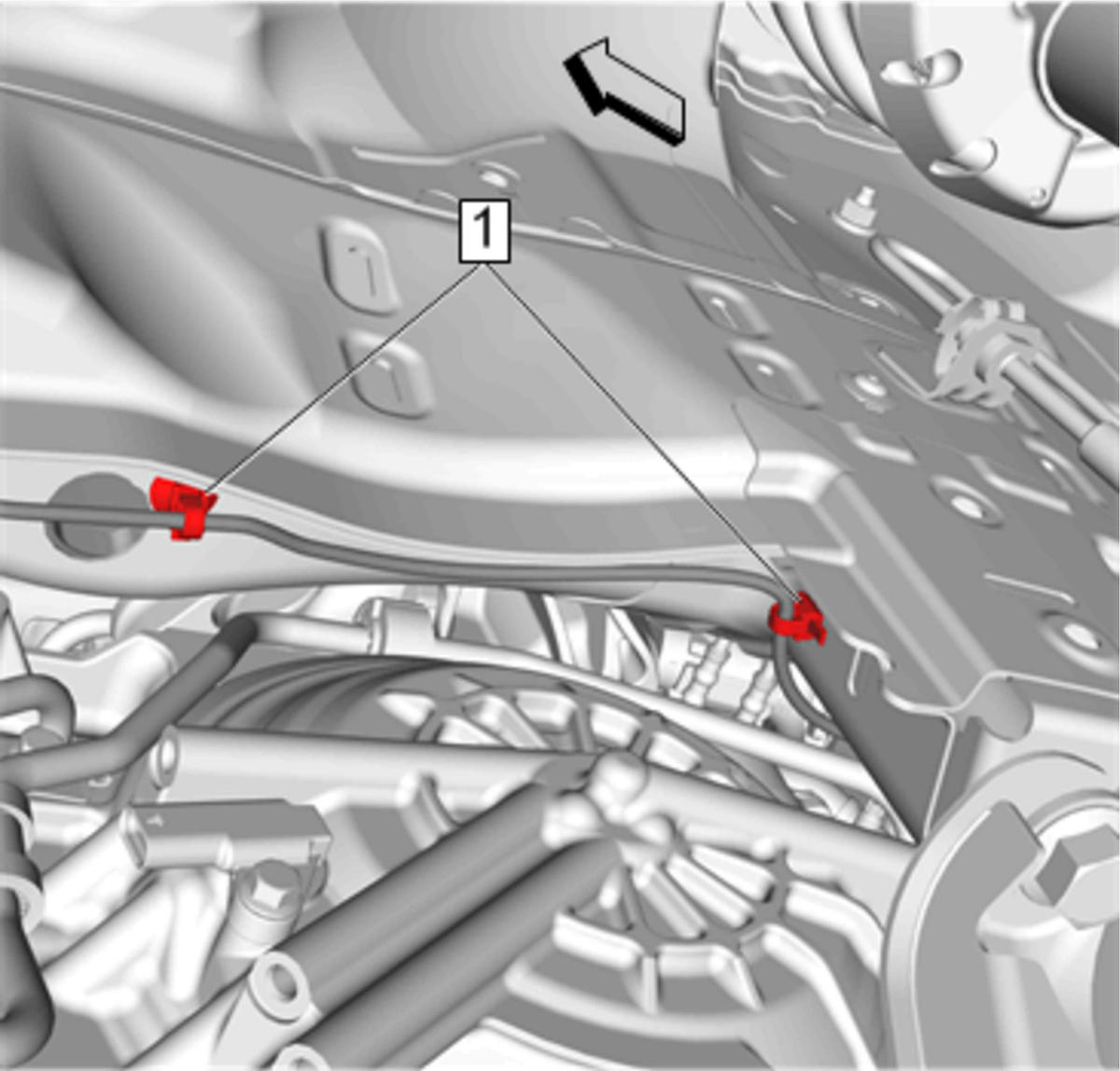

  7. GM4583861Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Harness Retainer (1) - Secure [ 2x ]

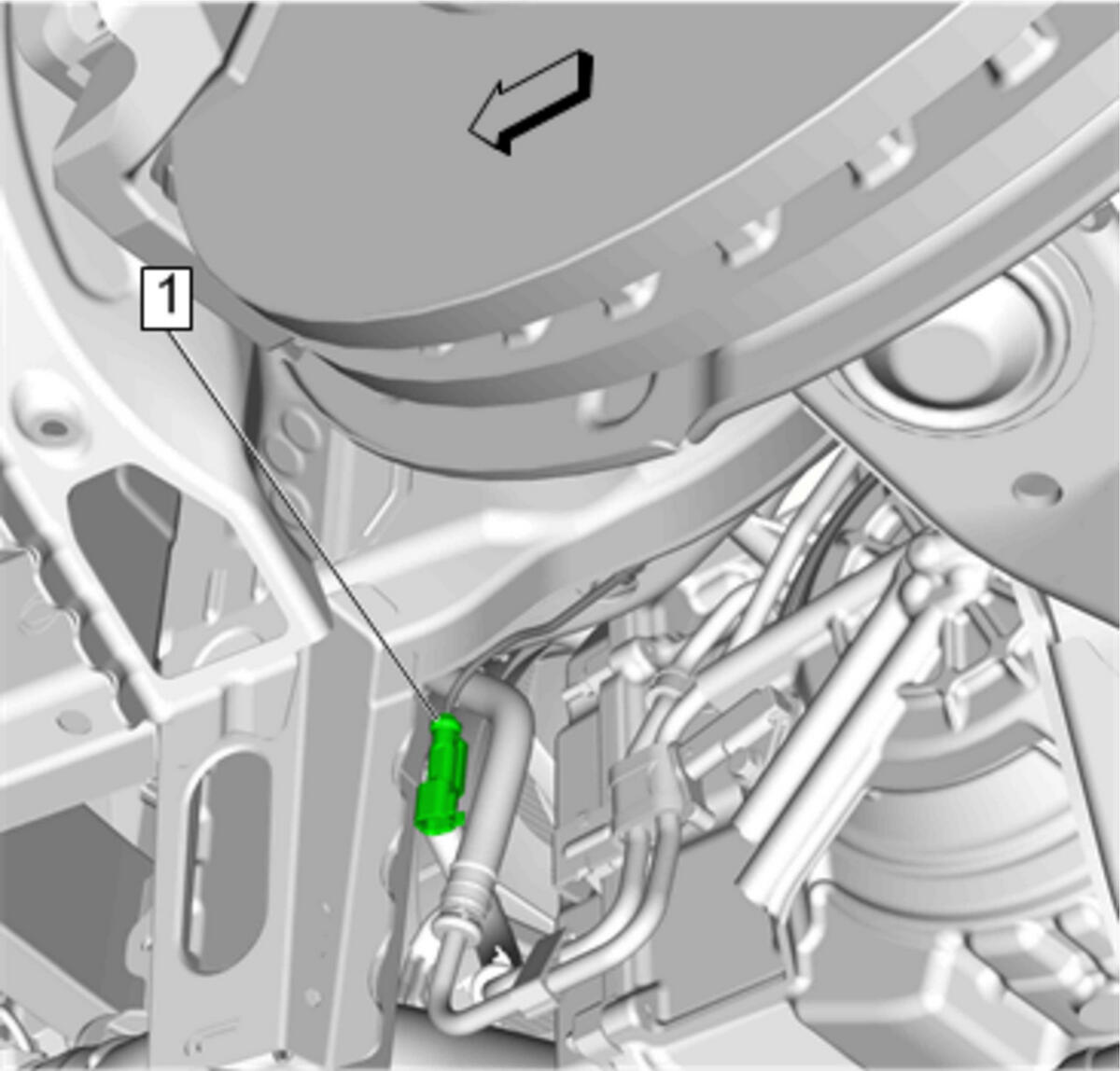

  8. GM4583860Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Electrical Connector (1) - Connect

  9. Front Wheelhouse Liner - Install - Front Wheelhouse Liner Replacement - Left Side (Equinox) , or Front Wheelhouse Liner Replacement - Left Side (Terrain)
  10. Perform the diagnostic system check. Diagnostic System Check - Vehicle
