Installation Procedure

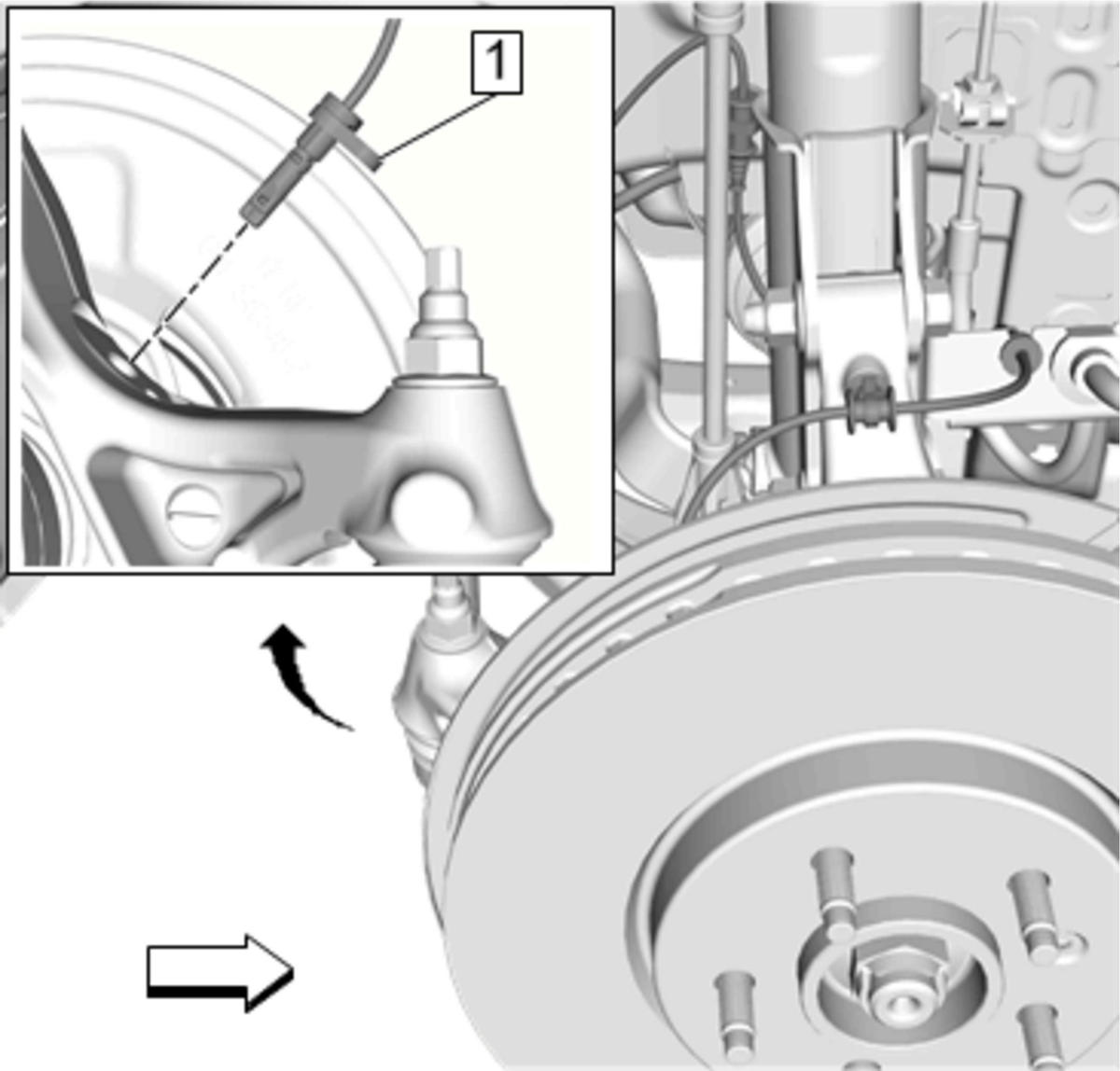

  1. GM4586038Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor (1) - Install

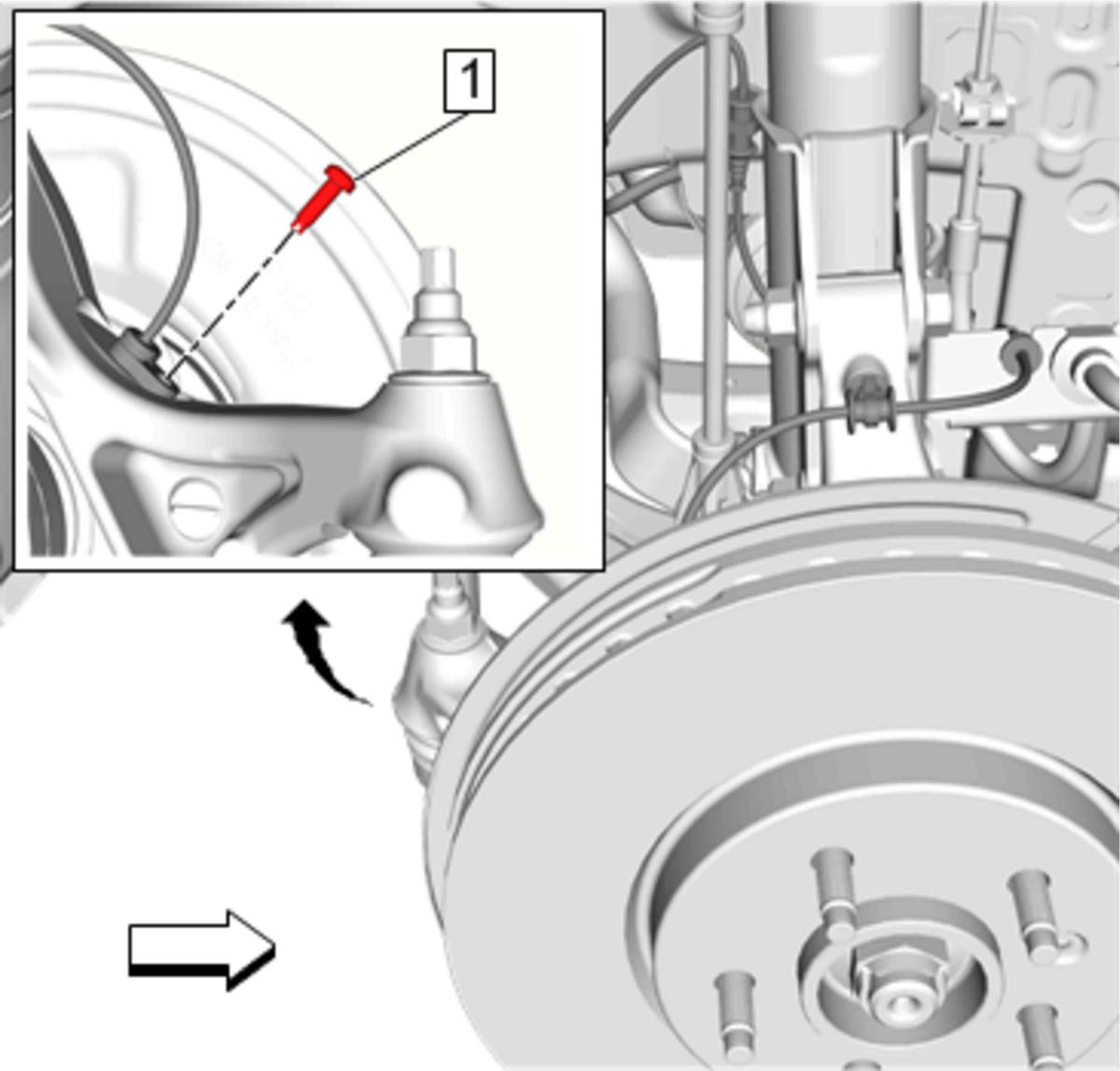

  2. GM4586037Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Wheel Speed Sensor Bolt - (1) Install and tighten 6 N.m (53 lb/in)

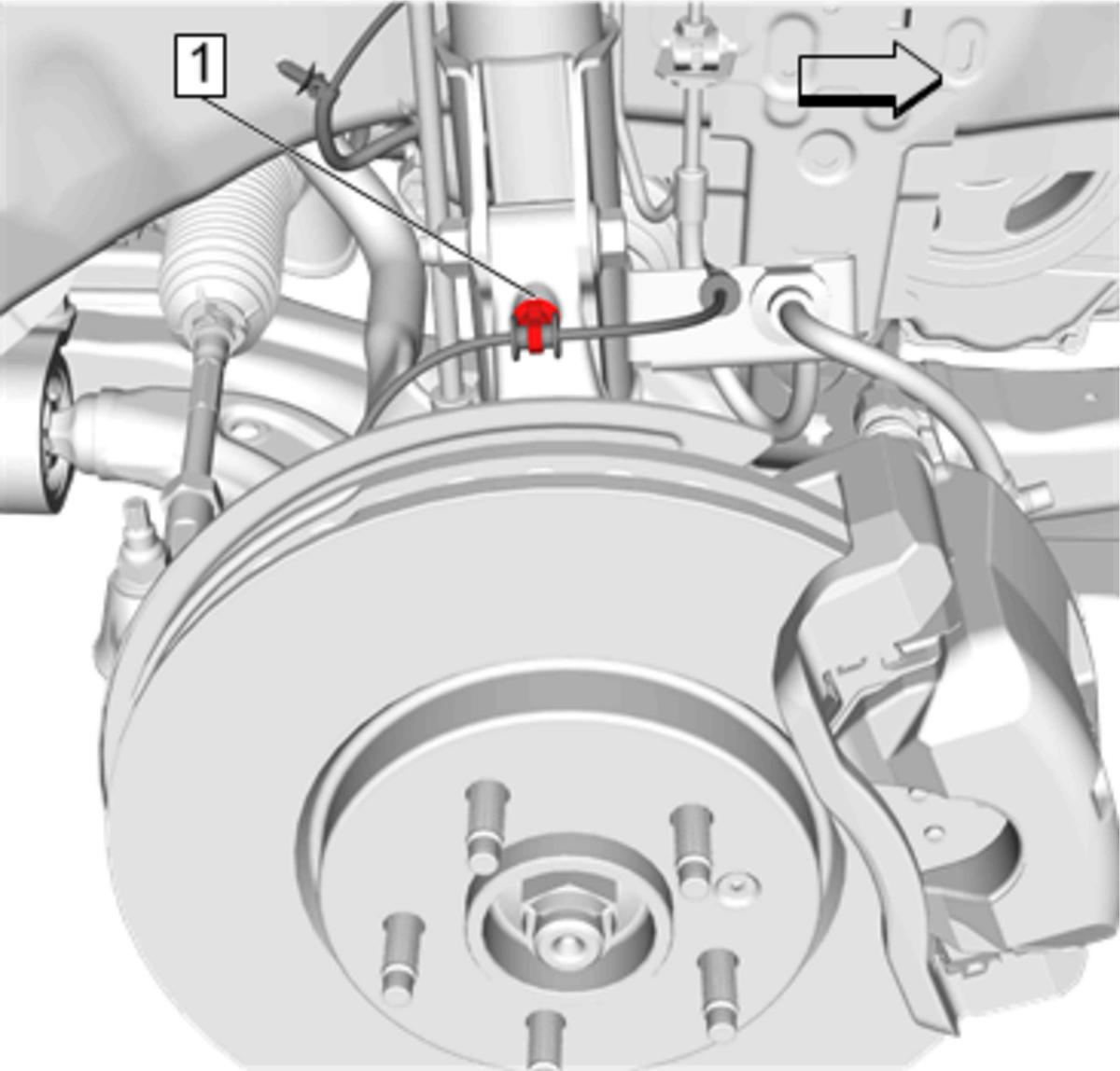

  3. GM4586033Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Harness Retainer (1) - Secure

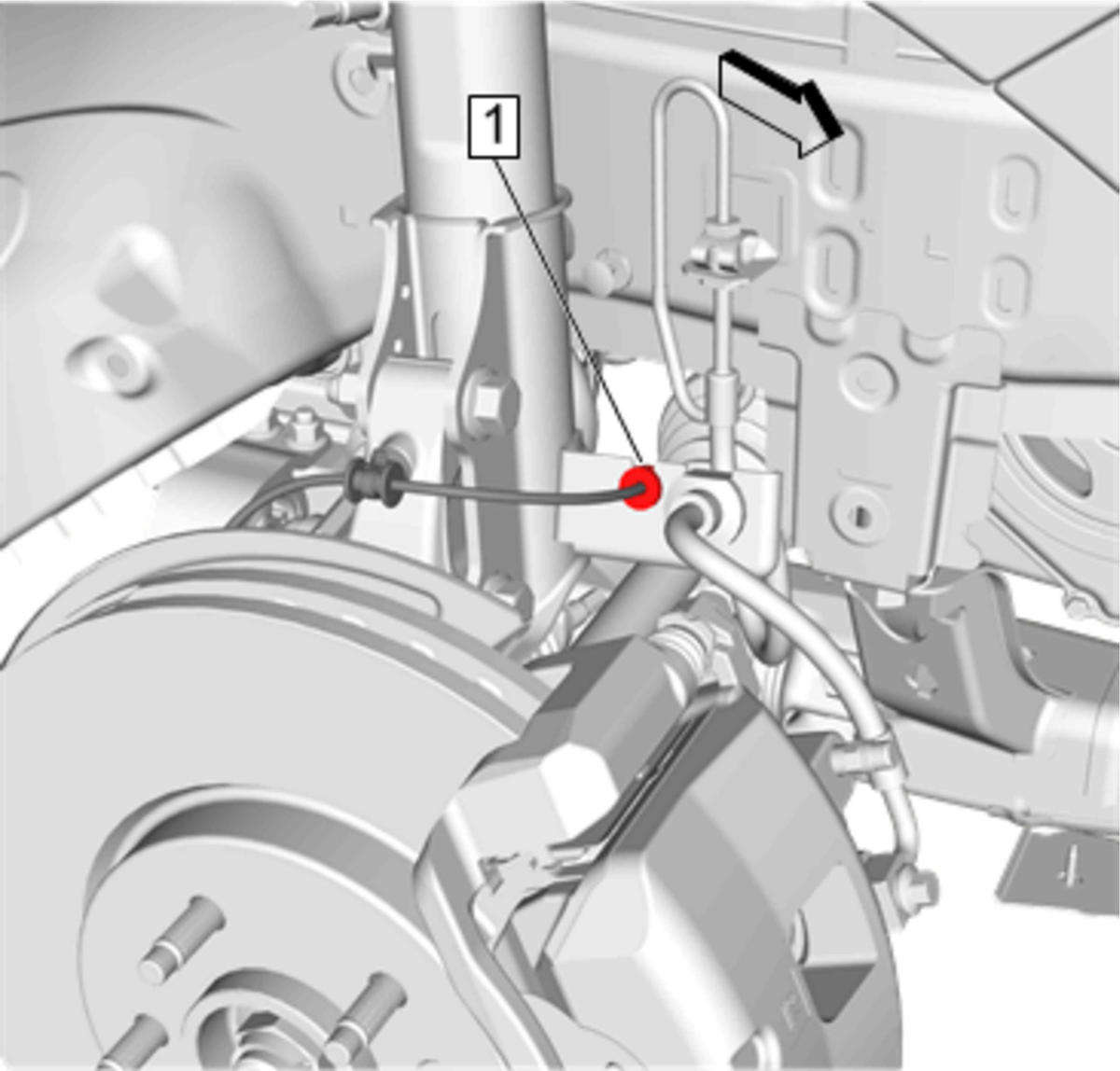

  4. GM4586031Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Harness Grommet (1) - Secure

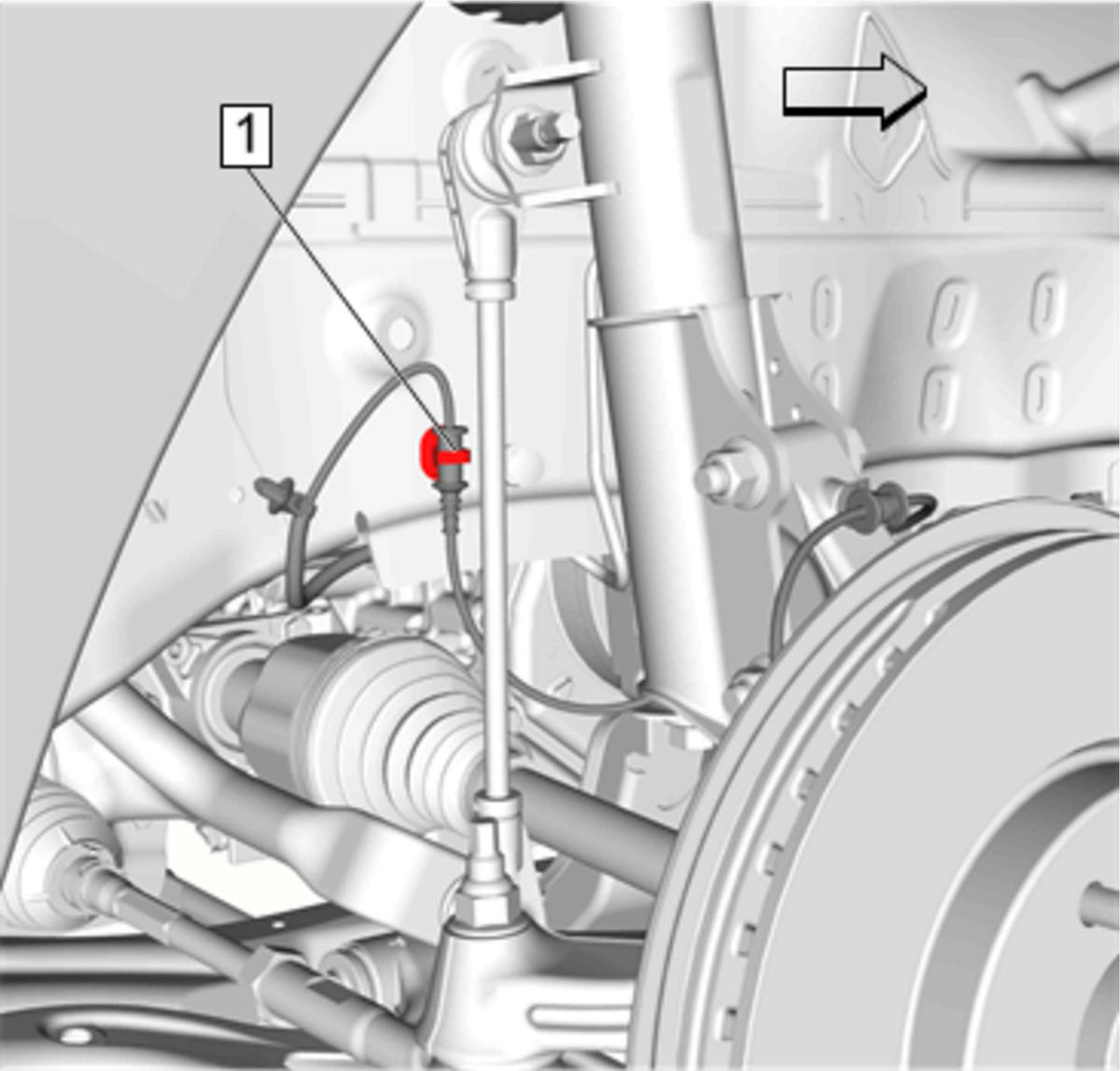

  5. GM4586030Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Harness Retainer (1) - Secure

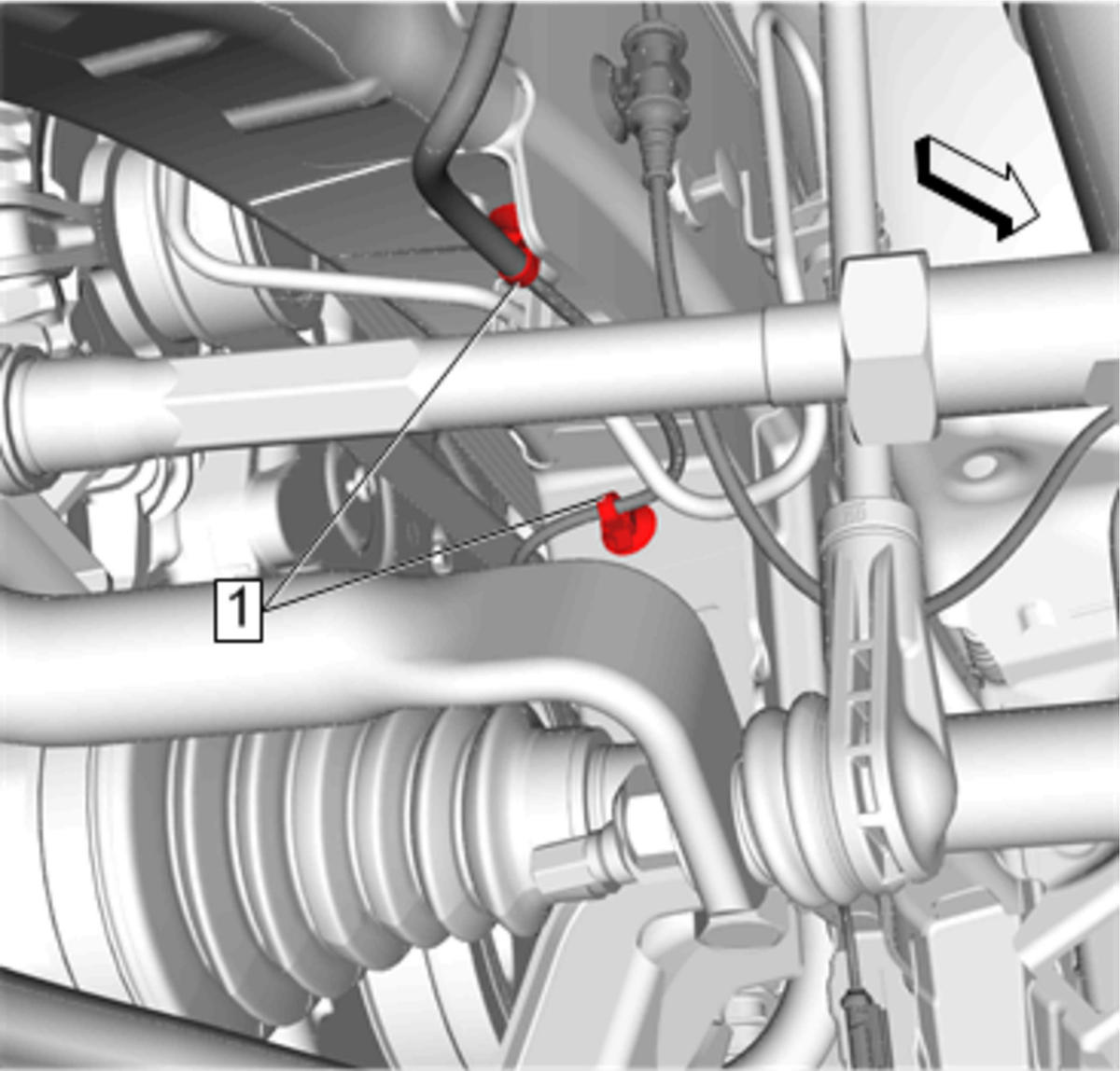

  6. GM4586029Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Harness Retainer (1) - Secure [ 2x ]

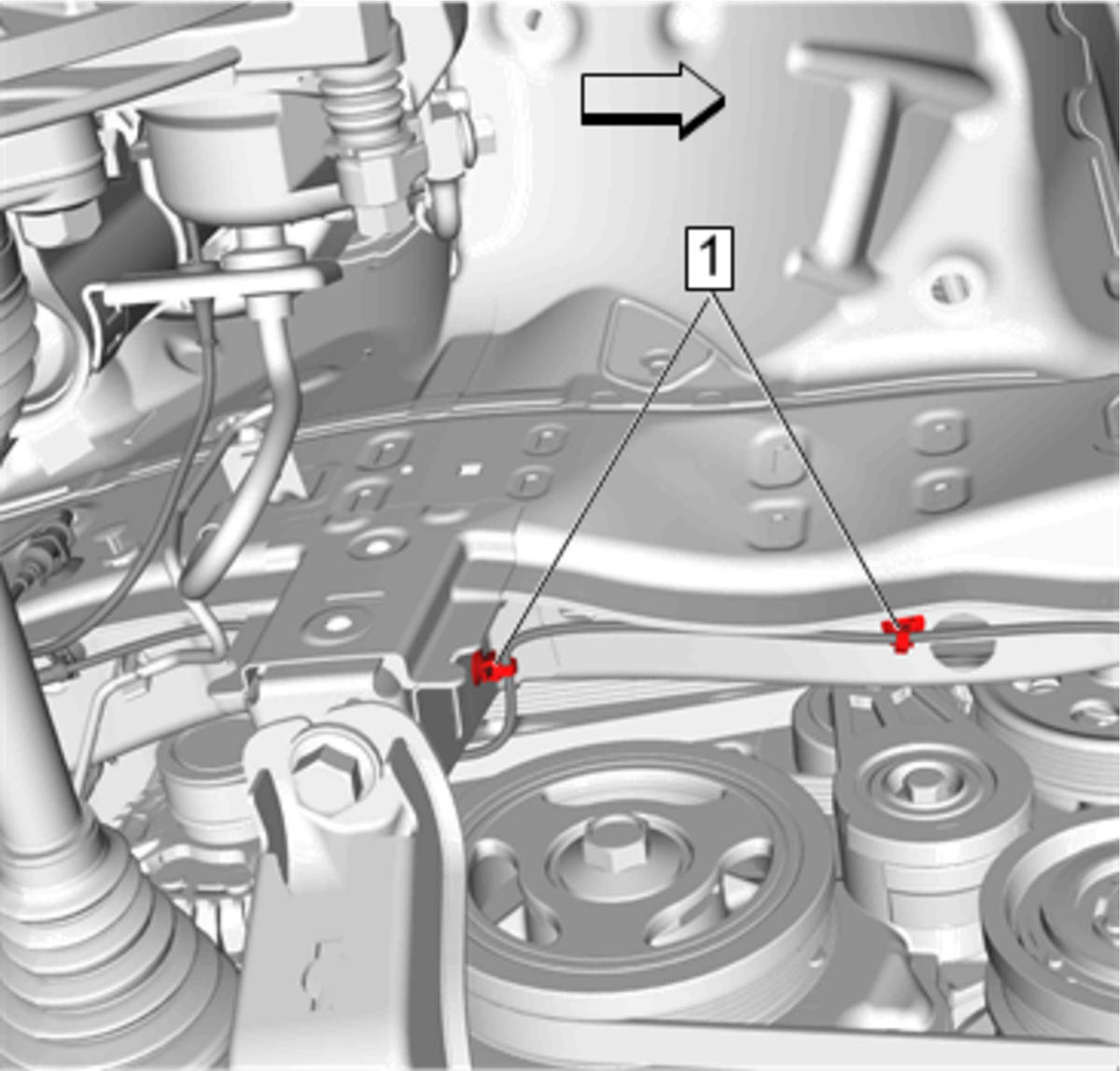

  7. GM4583880Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Harness Retainer (1) - Secure [ 2x ]

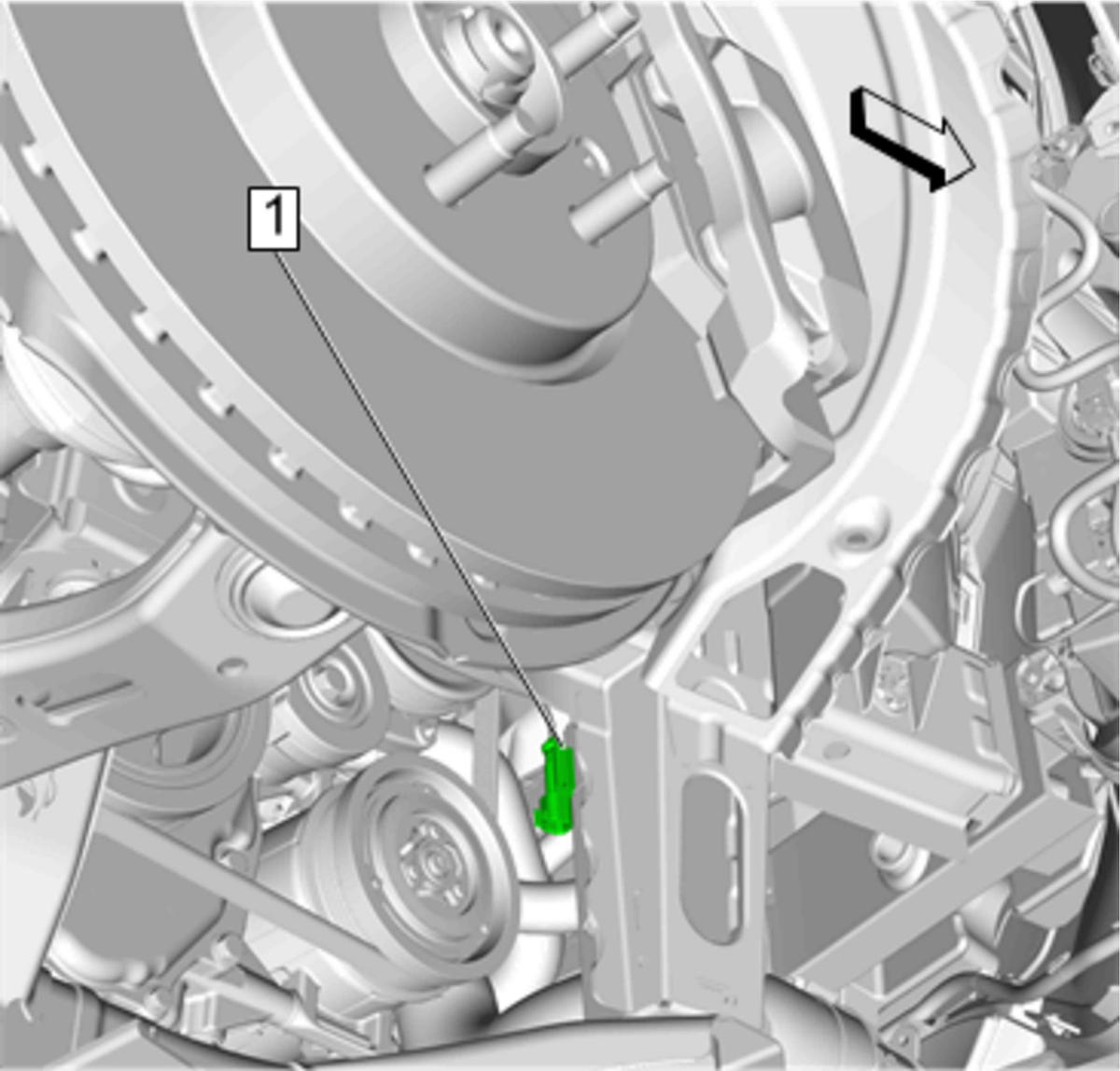

  8. GM4583876Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Electrical Connector (1) - Connect

  9. Front Wheelhouse Liner - Install - Front Wheelhouse Liner Replacement - Right Side (Equinox) , or Front Wheelhouse Liner Replacement - Right Side (Terrain)
  10. Perform the diagnostic system check. Diagnostic System Check - Vehicle
