Installation Procedure

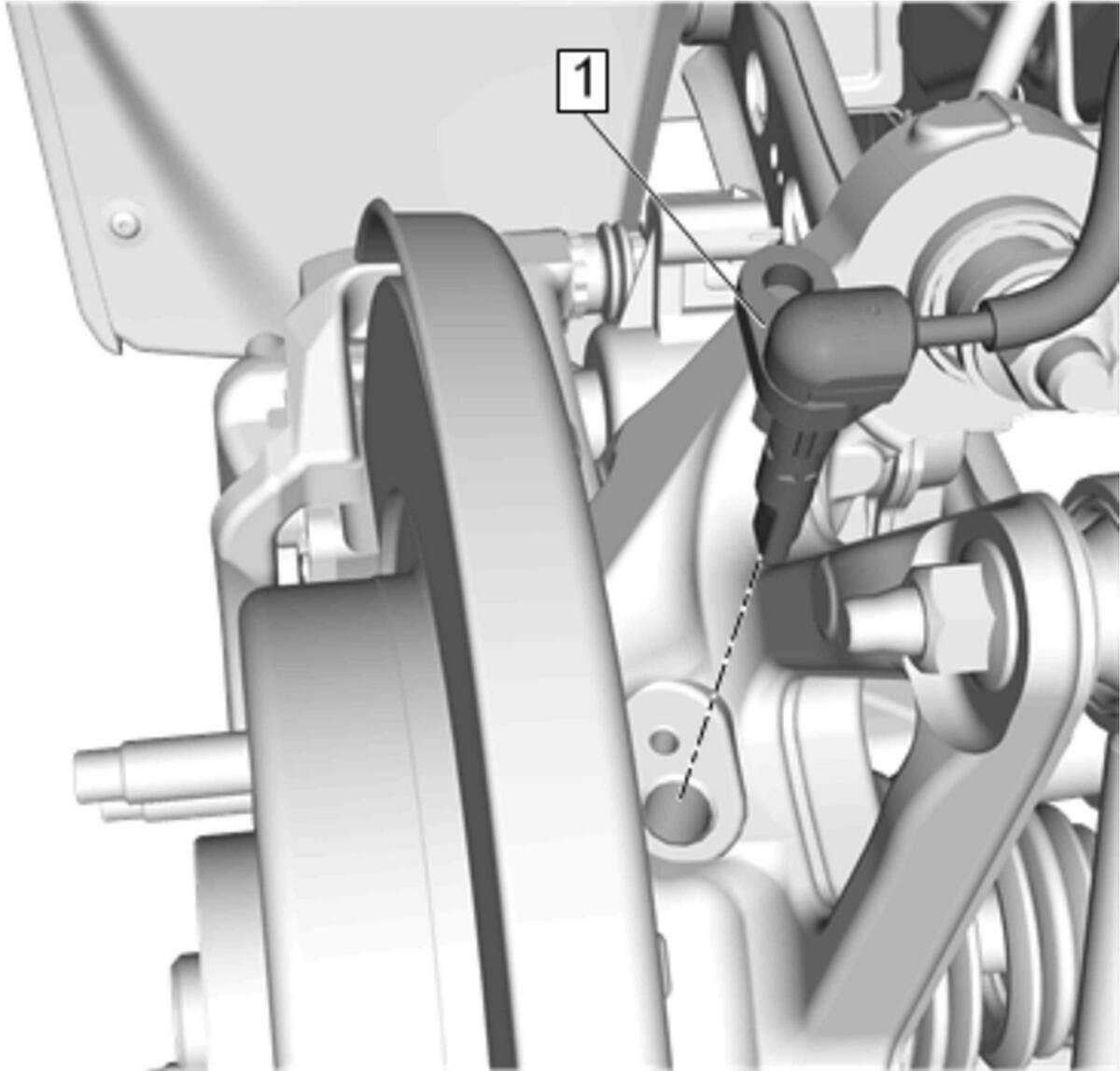

  1. GM4593379Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor - Install

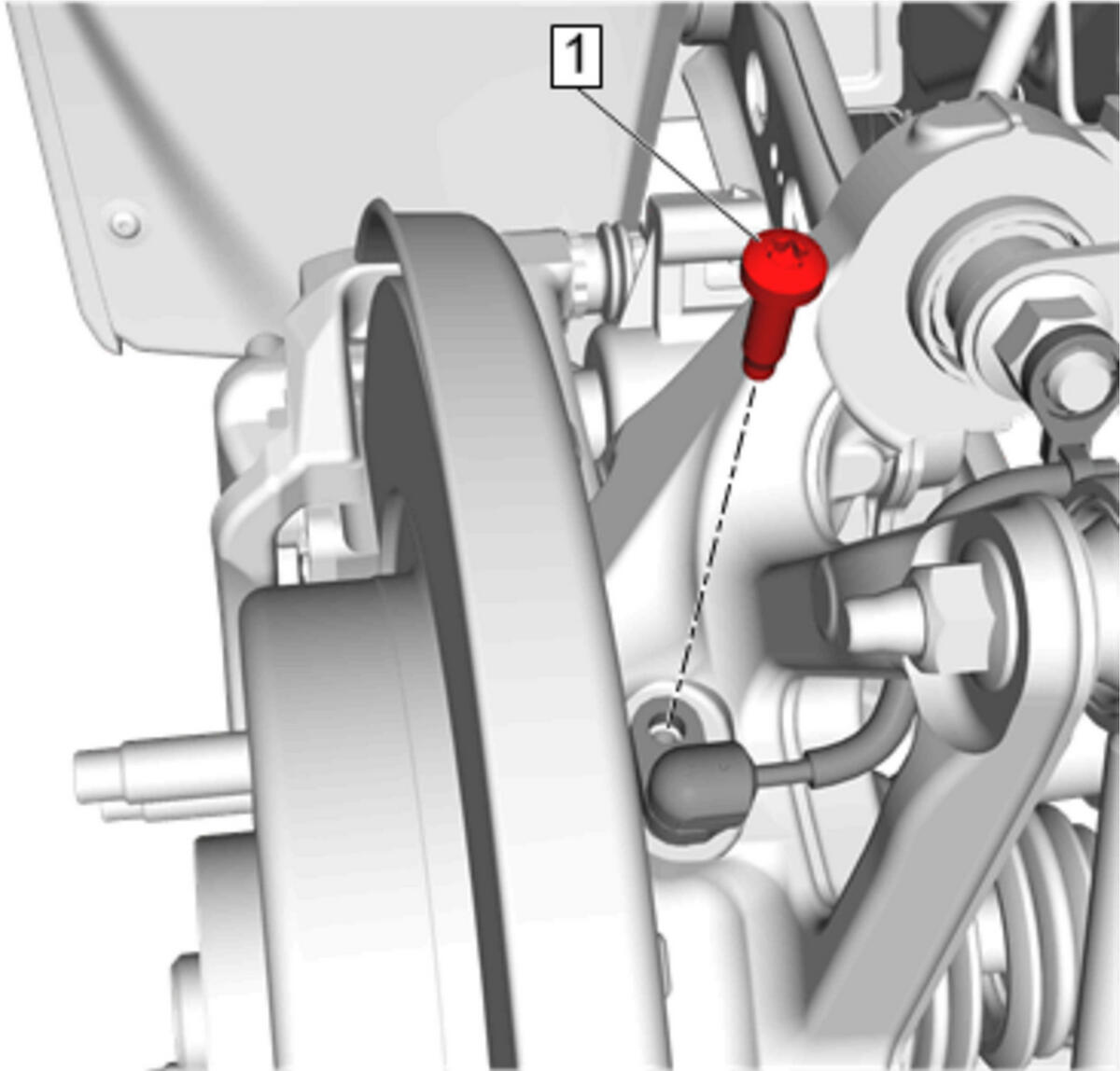

  2. GM4593377Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Rear Wheel Speed Sensor Bolt - (1) Install and tighten 6 N.m (53 lb/in)

  3. GM4593375Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor Harness Retainer (1) - Secure

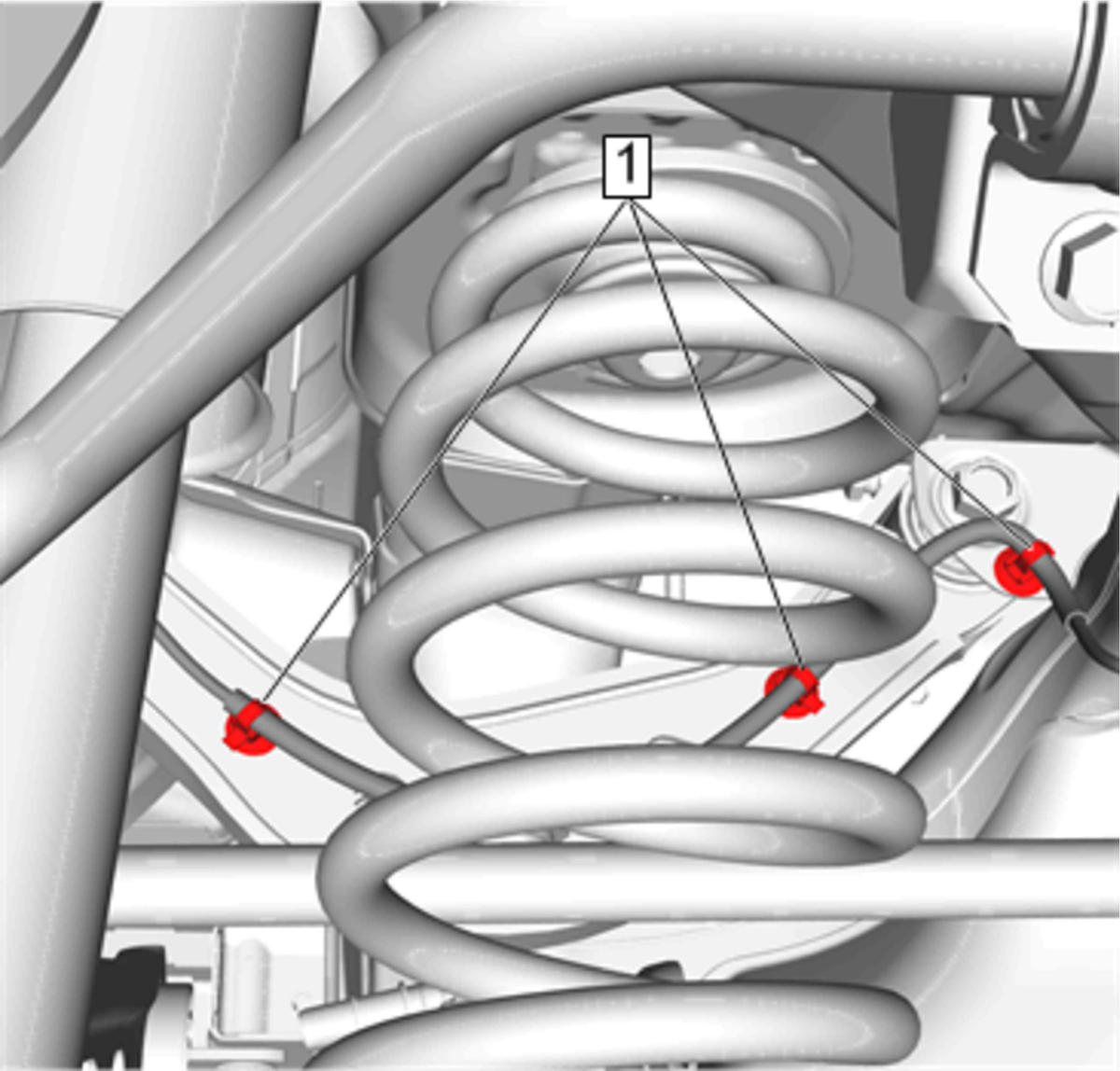

  4. GM4593374Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor Harness Retainer (1) - Secure [ 3x ]

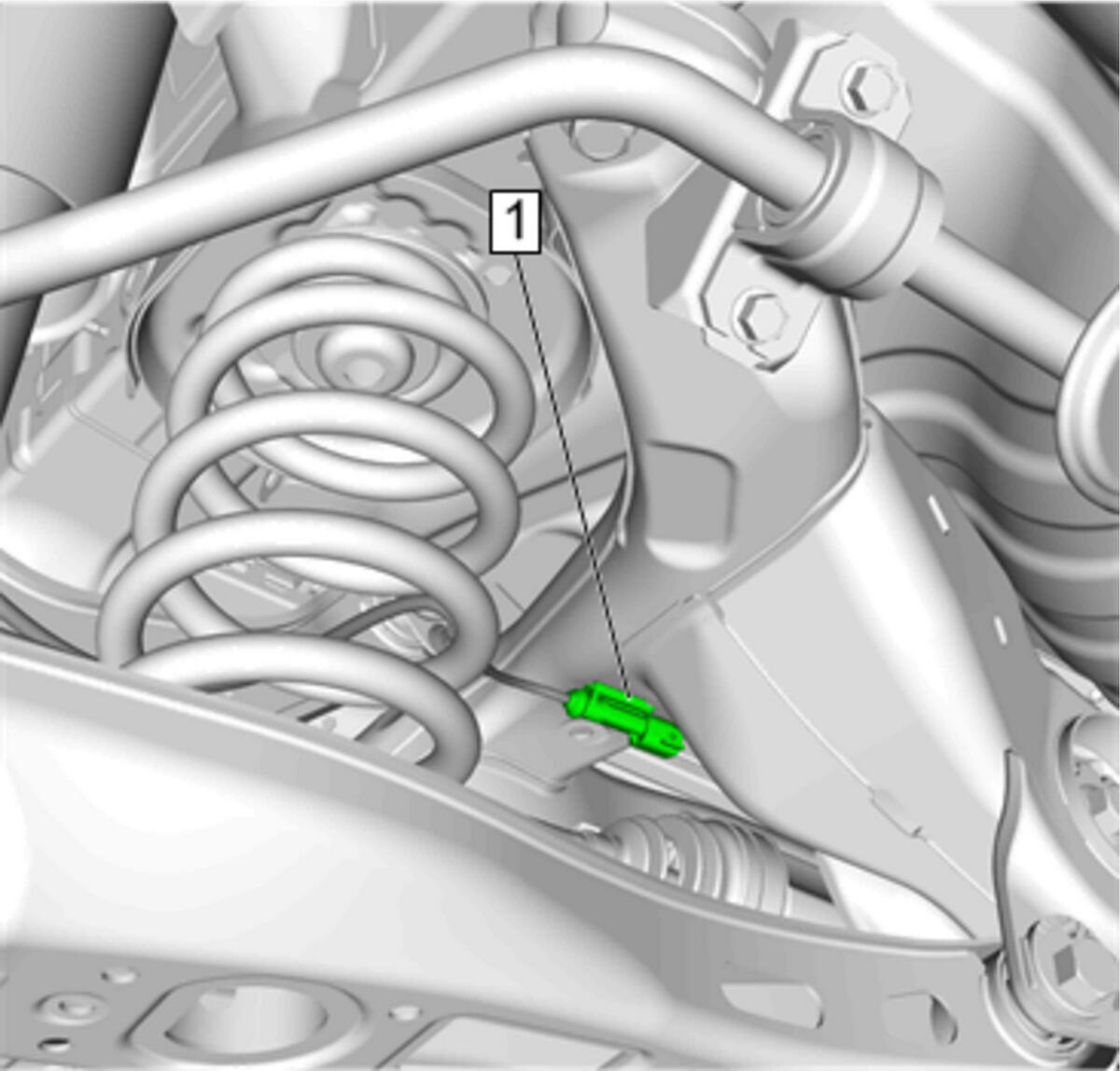

  5. GM4593373Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor Electrical Connector (1) - Connect

  6. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
  7. Perform the diagnostic system check. Diagnostic System Check - Vehicle
