Front View Camera Replacement

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement

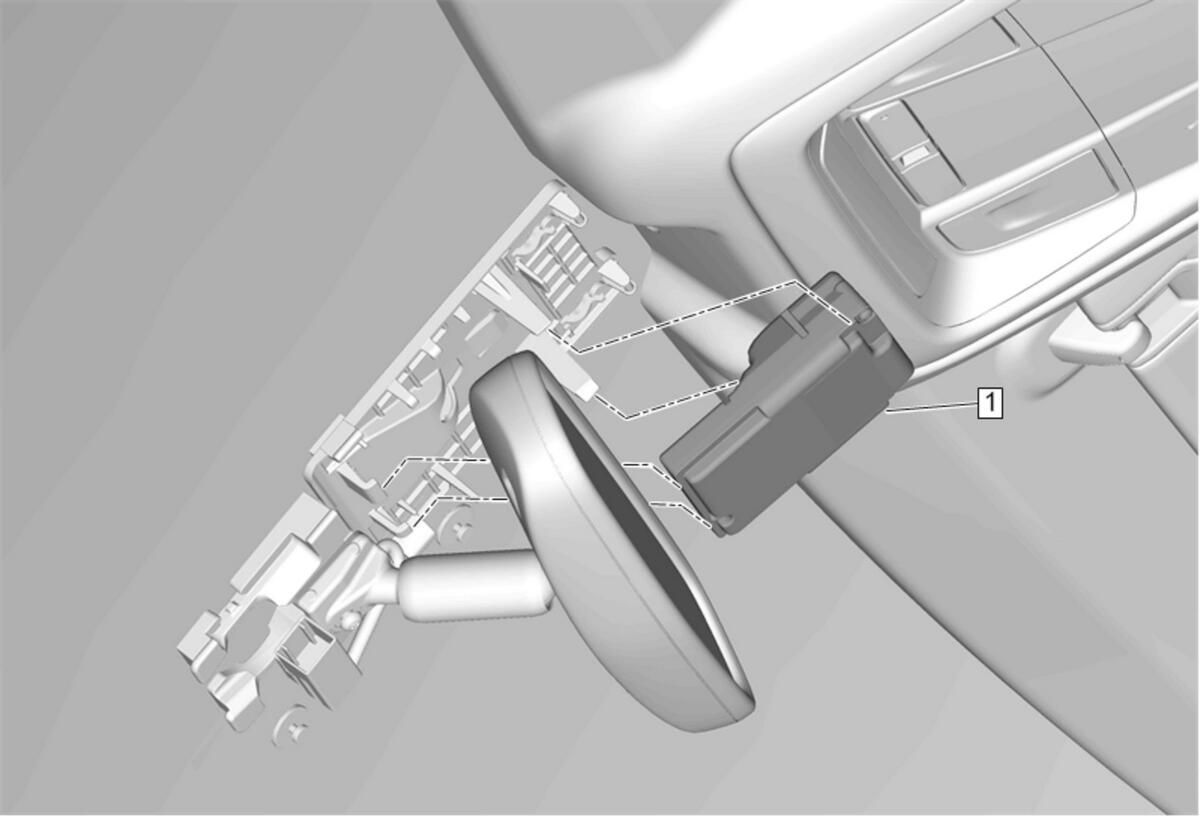

1	Front View Camera Procedure Release the retaining tabs. Disconnect the electrical connector. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Windshield Multifunction Sensor Mount Bracket Cover Replacement

Front View Camera

Procedure

Release the retaining tabs.
Disconnect the electrical connector.
Perform the necessary programming and setup procedure:Control Module References
