Side Object Sensing Alert Module Replacement

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

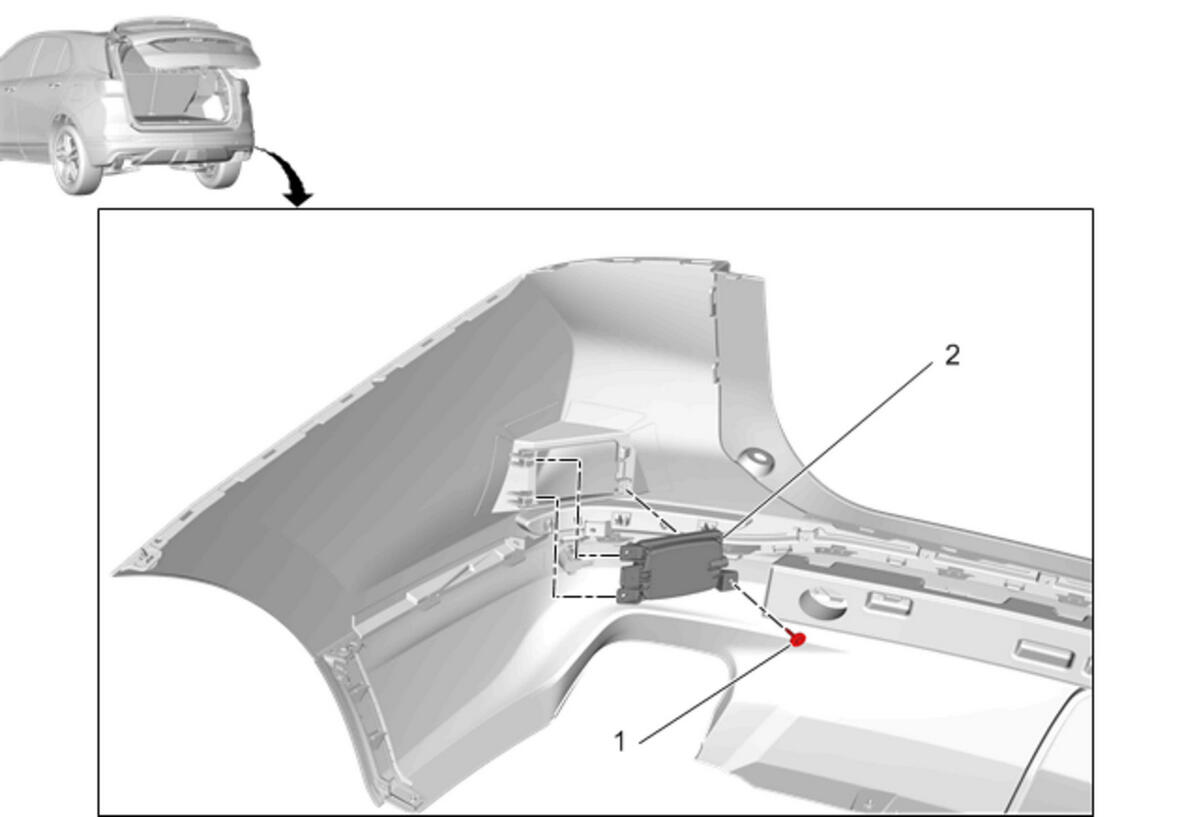

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Replacement (Equinox) , or Rear Bumper Fascia Replacement (Terrain)
1	Side Object Sensing Alert Module Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Side Object Sensing Alert Module Procedure Disconnect the electrical connector. Slide the module out of the retaining bracket. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Rear Bumper Fascia Replacement (Equinox) , or Rear Bumper Fascia Replacement (Terrain)

Side Object Sensing Alert Module Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Side Object Sensing Alert Module

Procedure

Disconnect the electrical connector.
Slide the module out of the retaining bracket.
Perform the necessary programming and setup procedure:Control Module References
