Steering Gear Drive Coupling Replacement

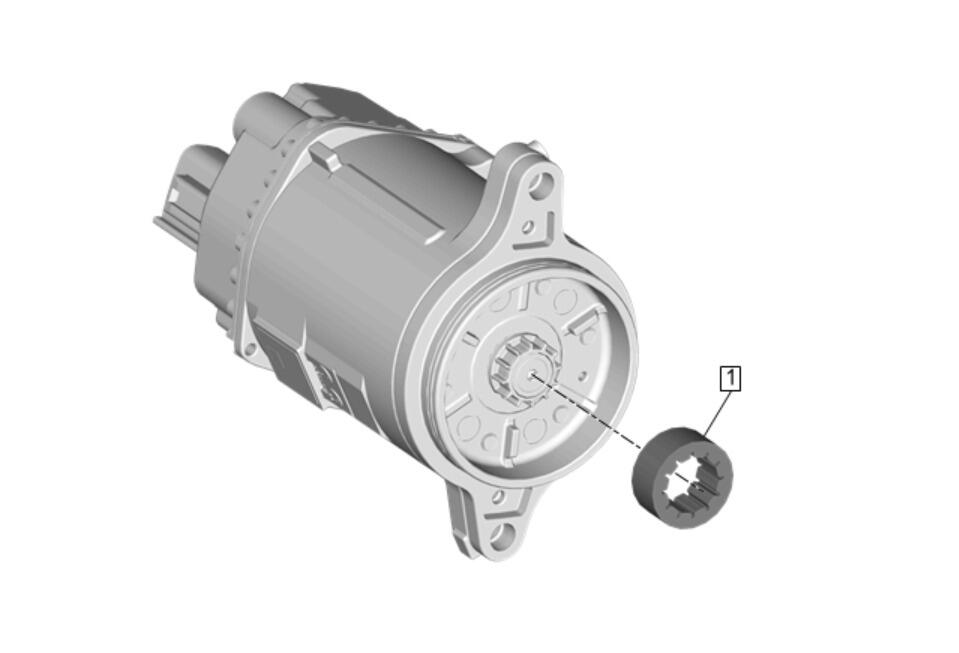

GM4223240Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Power Steering Assist Motor Replacement
1 Steering Gear Drive Coupling

Procedure

  1. Remove and DISCARD
  2. Install NEW
