Installation Procedure

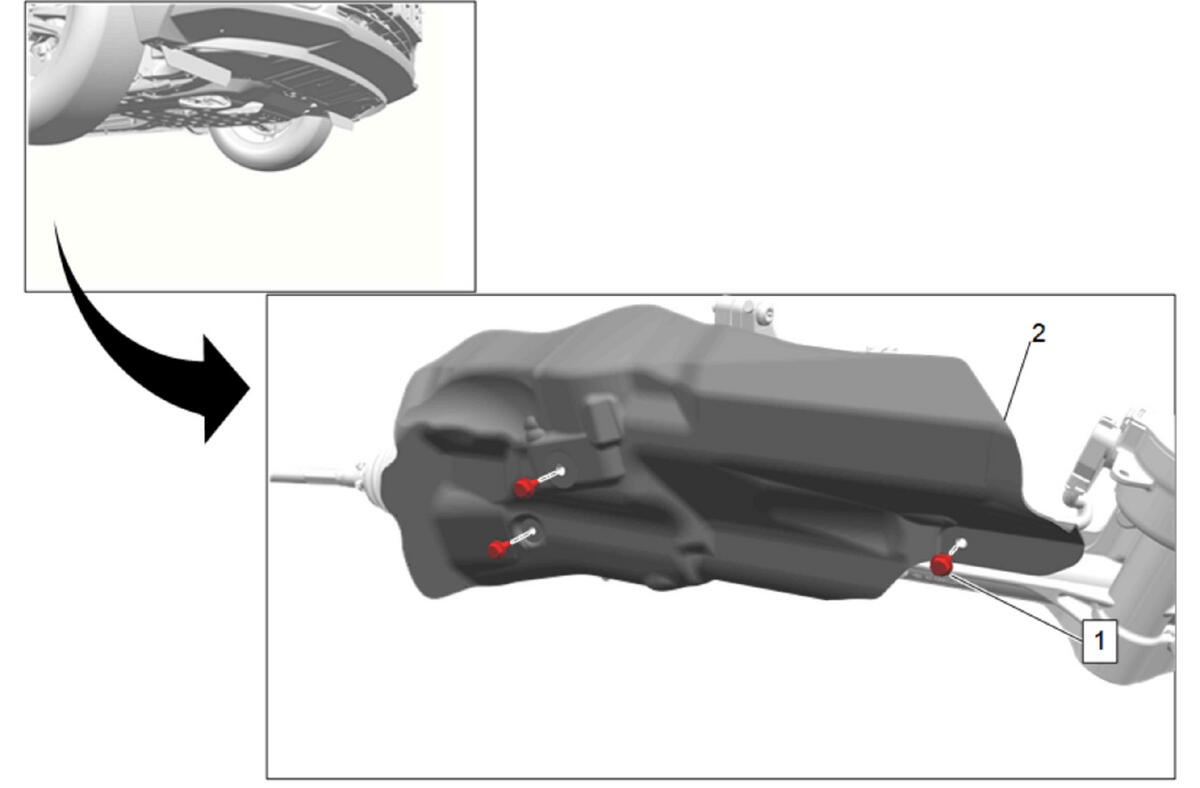

  1. GM5739260Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Heat Shield (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Steering Gear Heat Shield Bolt (1) - Install and tighten [ 3x ] 9 N.m (80 lb/in)
  3. Warm Up Three-Way Catalytic Converter - Install - Warm Up Three-Way Catalytic Converter Replacement (LYX)

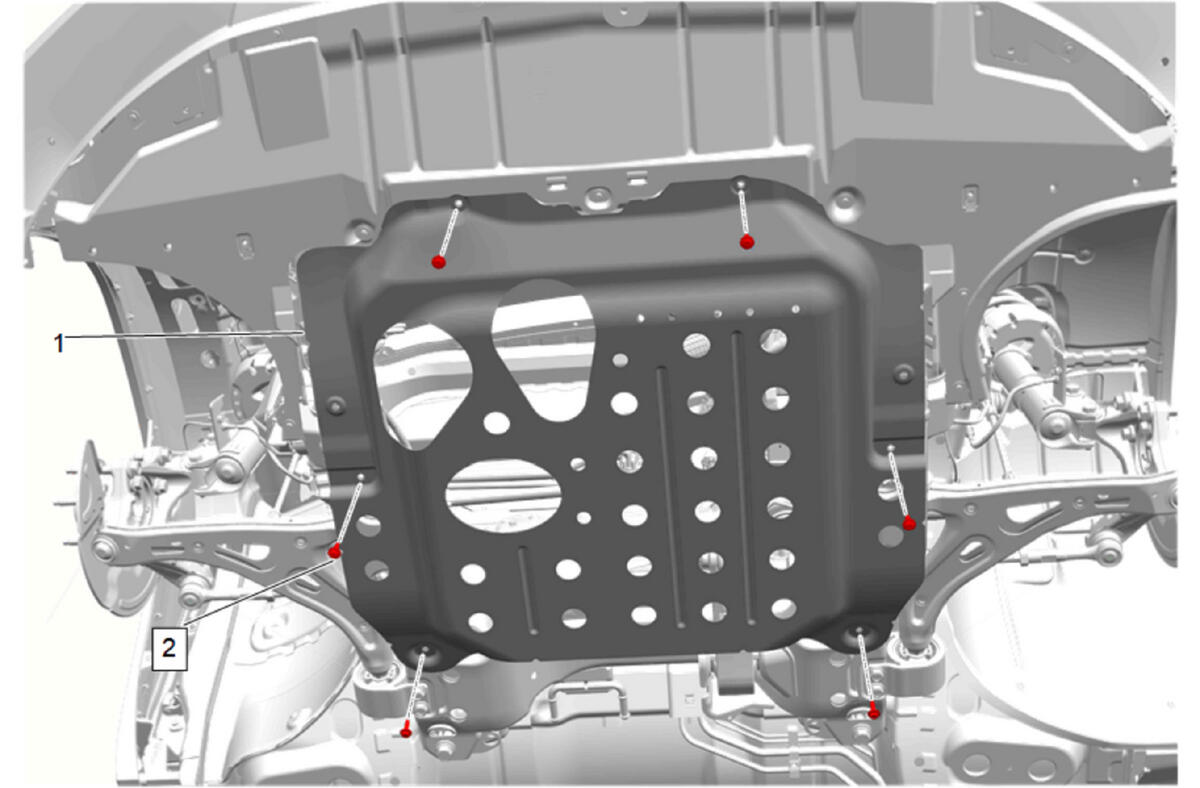

  4. GM5731483Courtesy of GENERAL MOTORS COMPANY

    Underbody Skid Shield (1) - Install - Underbody Skid Shield Replacement
