Removal Procedure

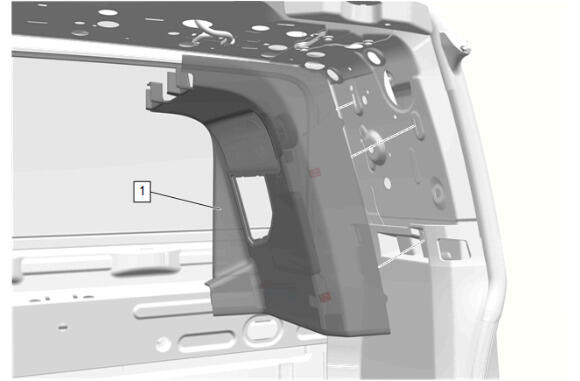

  1. GM5777896
    NOTE:

    The body side rear window garnish molding does not need to be removed from the vehicle.

    NOTE:

    Left side shown, right side similar.

    Body Side Rear Window Garnish Molding (1) - Reposition

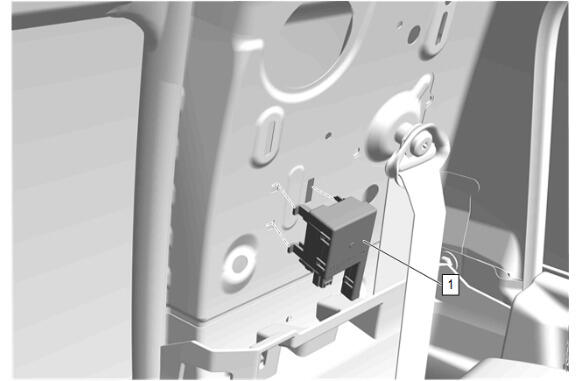

  2. GM5830147
    NOTE:

    Some components not shown for graphic clarity.

    Disconnect the electrical connector.

  3. Release the retaining tab.
  4. Remote Function Actuator Module (1) - Remove
