Removal Procedure

  1. GM5807720

    With the aid of an assistant, remove the fascia. (1) Rear Bumper Fascia Removal and Installation

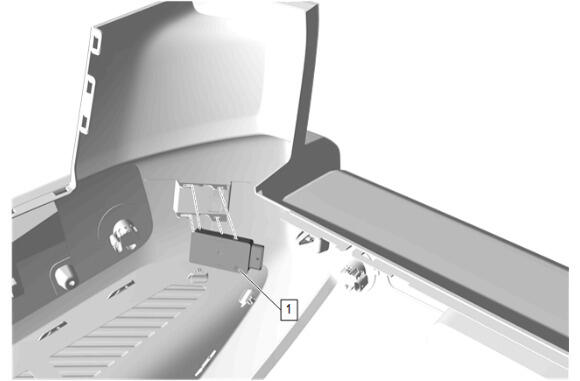

  2. GM5819283

    Release the retaining tabs.

  3. UHF Low Energy Remote Control Access Sensor Transceiver (1) - Remove
