Removal Procedure

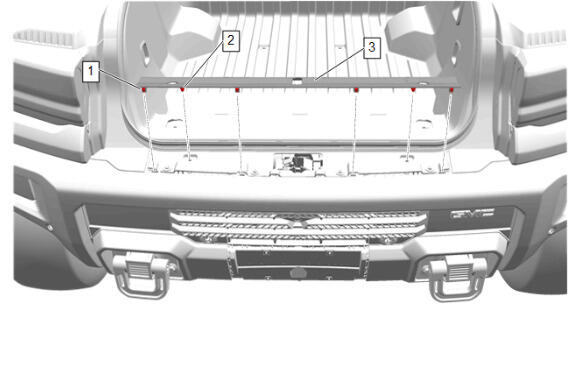

Front Compartment Front Sight Shield Clip (1) - Release [4x]
- Front Compartment Front Sight Shield Retainer (2) - Release [2x]
- Front Compartment Front Sight Shield (3) - Remove
- NOTE:
Left side shown, right side similar.
Turn the 6 front compartment sight shield retainers (1) a quarter turn counter clockwise to release on both sides of the vehicle.
- NOTE:
Left side shown, right side similar.

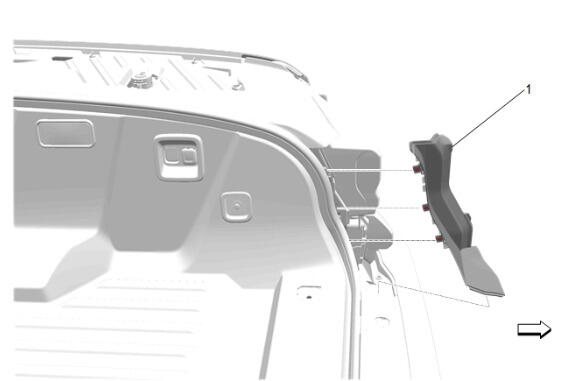

Front Compartment Side Sight Shield- Left Side and Right Side (1) - Remove [2x]
- NOTE:
Left side shown, right side similar.
Using the appropriate tool, release the integral clips on both sides of the vehicle.
- Front Compartment Side Sight Shield- Front- Left Side and Right Side (1) - Remove [2x]

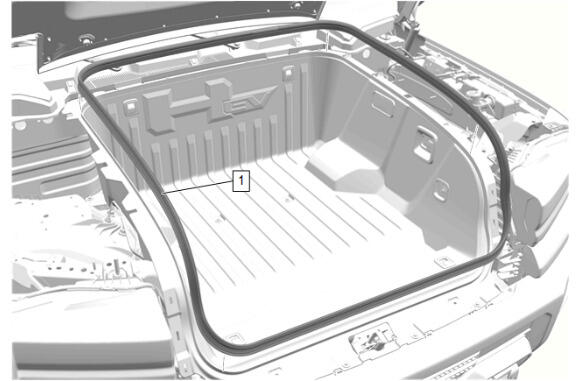

Hood Weatherstrip (1) - Remove
- NOTE:
Left side shown, right side similar.
Open the cargo tie down loop access cover with an appropriate tool.

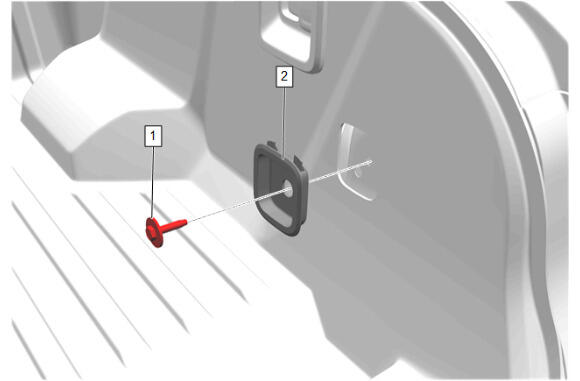

- Cargo Tie Down Loop Bolt-Rear and Front (1) - Remove [4x]
- Cargo Tie Down Loop-Rear and Front (2) - Remove [4x]
- NOTE:
Left side shown, right side similar.

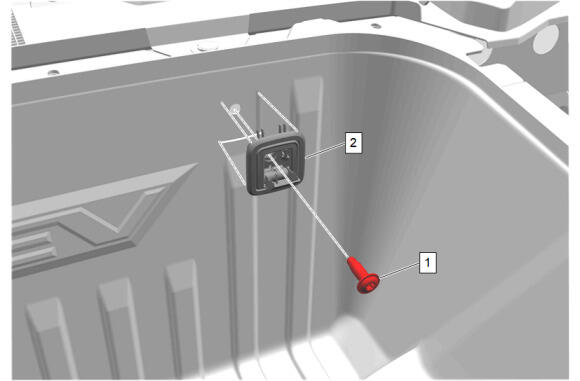

Front Trim Finish Compartment Bolt- Left Side and Right Side (1) - Remove [2x]
- Front Trim Finish Compartment Closeout Cap- Left Side and Right Side (2) - Remove [2x]

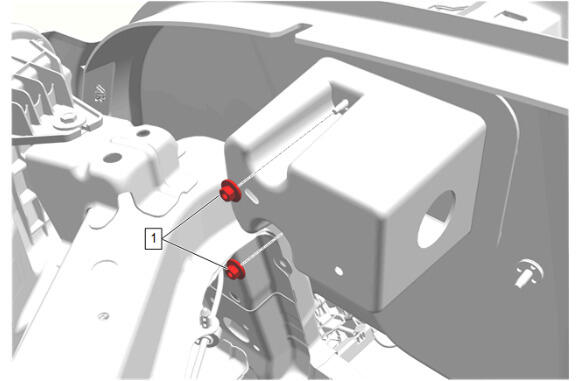

Front Trim Finish Compartment Support Nut (1) - Remove [2x]

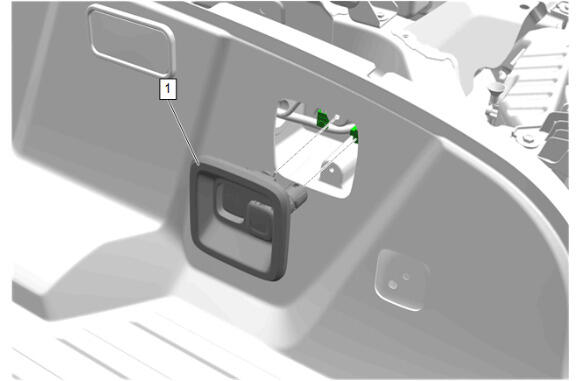

Front Trim Finish Compartment Lamp Bezel (1) - Remove
- Disconnect the electrical connectors.
Using a flat-bladed plastic tool, release the retaining tab.
- Cargo Lamp (1) - Remove
- Disconnect the electrical connector.
Disconnect the electrical connector.
- Front Trim Finish Compartment Bolt (1) - Remove [10x]
- Front Trim Finish Compartment (2) - Remove
- Place the front trim finish compartment (2) on a clean flat surface.
Disconnect the electrical connector.
- Release the retaining tabs.

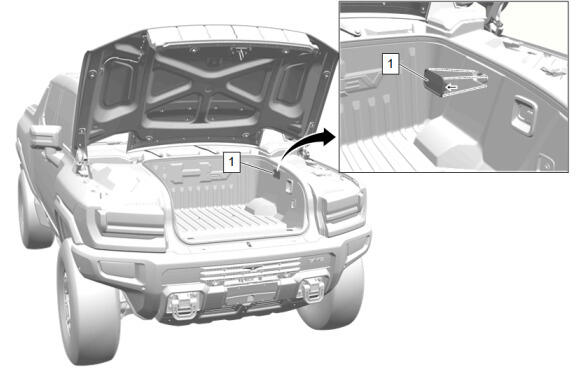

- UHF Low Energy Remote Control Access Sensor Transceiver (1) - Remove
