Removal Procedure
Tire Repair Sealer and Tire Air Compressor Retainer (1) - Remove
- Tire Air Compressor (2) - Remove
Rear Floor Mat (1) - Remove
Move the front seat to access the retainers.

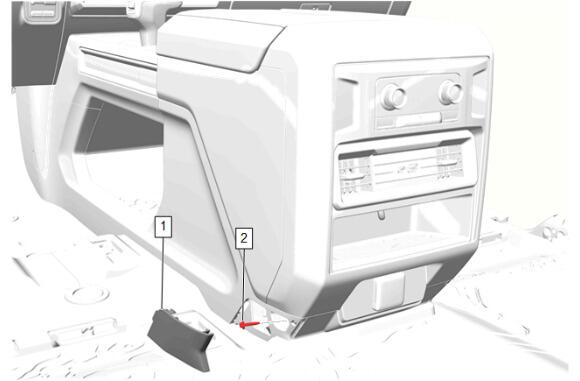

- Front Floor Console Bolt Access Hole Cover (1) - Remove
- Front Floor Console Rear Cover Bolt (2) - Remove
Move the front seat to access the retainers.

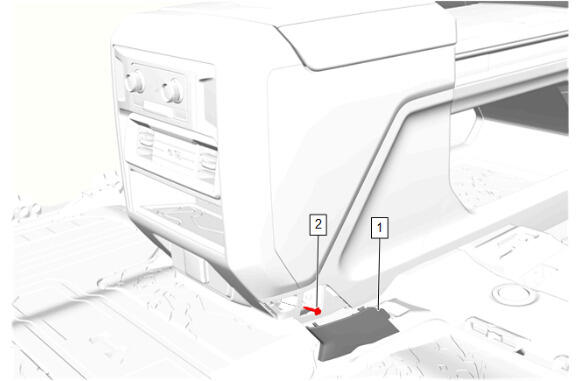

- Front Floor Console Bolt Access Hole Cover (1) - Remove
- Front Floor Console Rear Cover Bolt (2) - Remove
Open the armrest cover.
- Release the retainers with a suitable plastic trim tool.

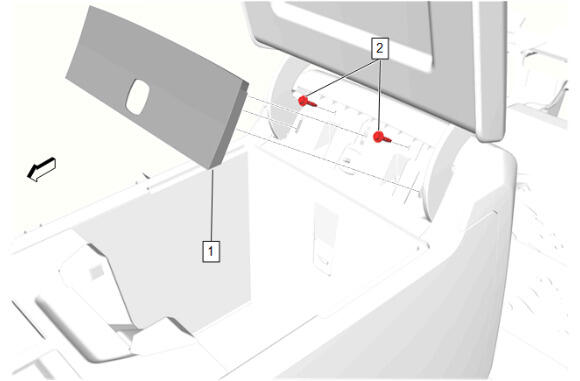

- Front Floor Console Rear Trim Plate (1) - Remove
- Front Floor Console Rear Cover Bolt (2) - Remove [2x]
Release the retainers with a suitable plastic trim tool.
- Reposition the component to access the electrical connectors.
- Disconnect the electrical connectors.

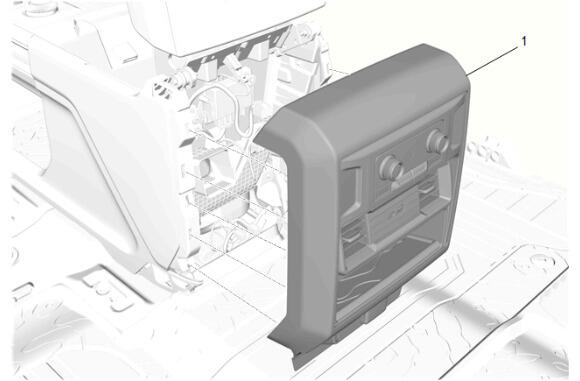

- Front Floor Console Rear Trim Panel (1) - Remove
Disconnect the electrical connectors.

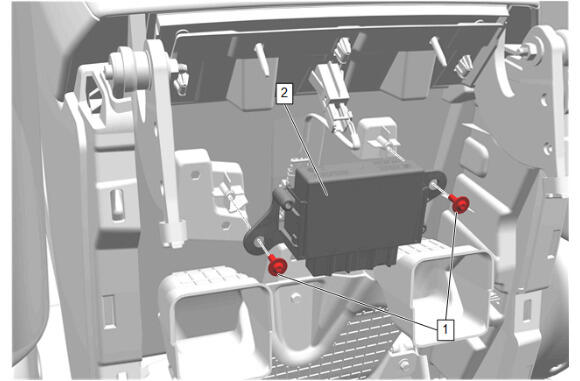

- UHF Short Range Low Energy Remote Control Access Transceiver Bolt (1) - Remove [2x]
- UHF Short Range Low Energy Remote Control Access Transceiver (2) - Remove
NOTE:
Use a flat bladed plastic trim tool.
NOTE:
Use a flat bladed plastic trim tool.
