Fastener Specifications

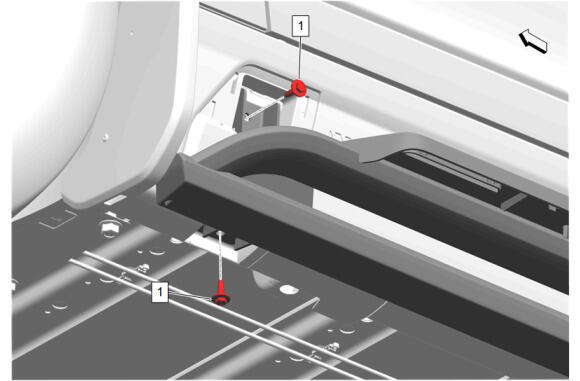

GM5911411
Assist Step

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Assist Step Bolt [6x] - - 22 N.m (16 lb ft) Assist Step Replacement

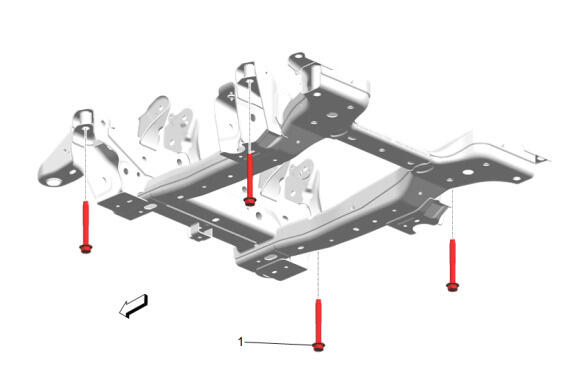

GM5903222
Front Cradle Bolts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drivetrain and Front Suspension Cradle Bolt [4x] - - First Pass: 240 N.m (177 lb ft)
Final Pass: 30-45 degrees		 Front Cradle Removal and Installation

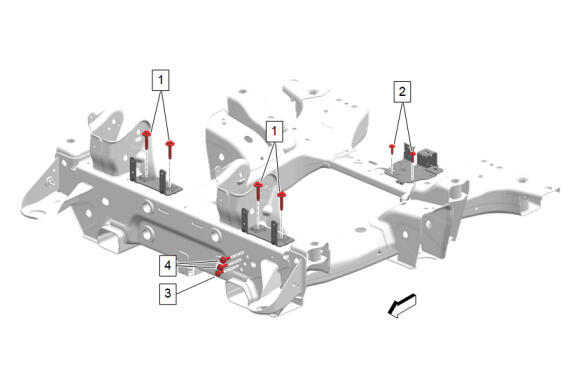

GM5905704
Front Cradle Bracket and Ground Bolts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Generator Control Module Coolant Pump Bracket Bolt [4x] - - 22 N.m (16 lb ft) Front Cradle Replacement
2 Wiring Harness Bracket Bolt [2x] - - 9 N.m (80 lb in) Front Cradle Replacement
3 Engine Wiring Harness Bolt - - 9 N.m (80 lb in) Front Cradle Replacement
4 Engine Wiring Harness Ground Bolt [2x] - - 22 N.m (16 lb ft) Front Cradle Replacement

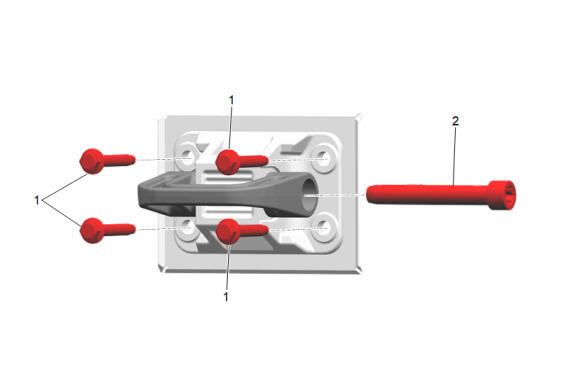

GM5880964
Front Tow Hook

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Tow Hook Bolt [4x] - - 100 N.m (74 lb ft) Front Tow Hook Replacement
2 Front Tow Hook Bolt - Yes 35 N.m (26 lb ft) Front Tow Hook Replacement

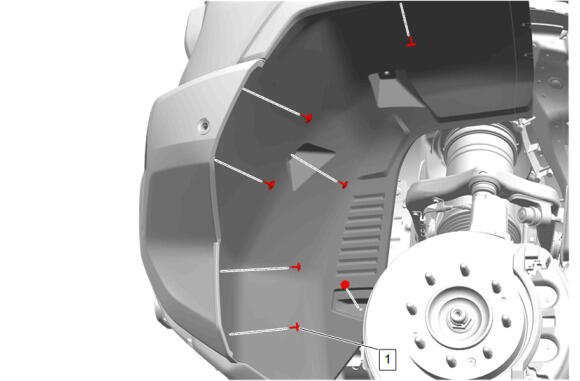

GM5810295
Front Wheelhouse Front Liner

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheelhouse Liner Bolt [7x] - - 2.5 N.m (22 lb in) Front Wheelhouse Front Liner Replacement

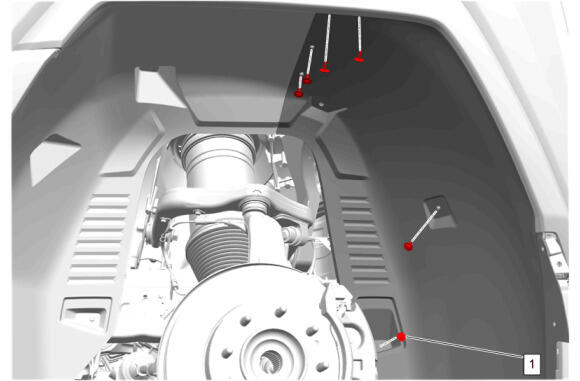

GM5810303
Front Wheelhouse Rear Liner

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheelhouse Liner Bolt [6x] - - 2.5 N.m (22 lb in) Front Wheelhouse Rear Liner Replacement

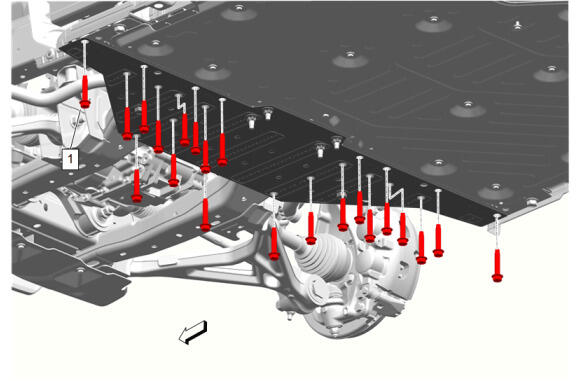

GM5907867
High Voltage Battery Tray Lower Front Reinforcement Bolts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 High Voltage Battery Tray Reinforcement Bolt [20x] - - 160 N.m (118 lb ft) High Voltage Battery Tray Lower Front Reinforcement Replacement

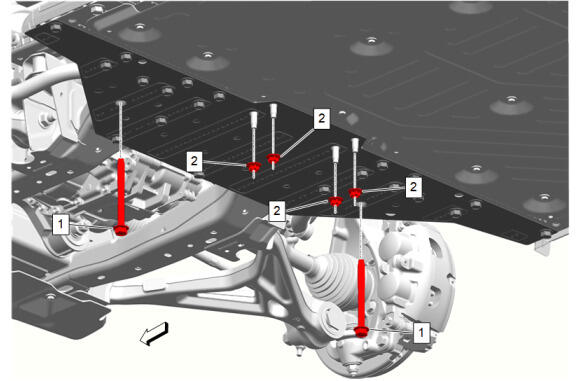

GM5907869
High Voltage Battery Tray Lower Front Reinforcement Bolts and Nuts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 High Voltage Battery Tray Reinforcement Bolt [2x] - - 240 N.m (177 lb ft) High Voltage Battery Tray Lower Front Reinforcement Replacement
2 High Voltage Battery Tray Reinforcement Nut [4x] - - 100 N.m (74 lb ft) High Voltage Battery Tray Lower Front Reinforcement Replacement

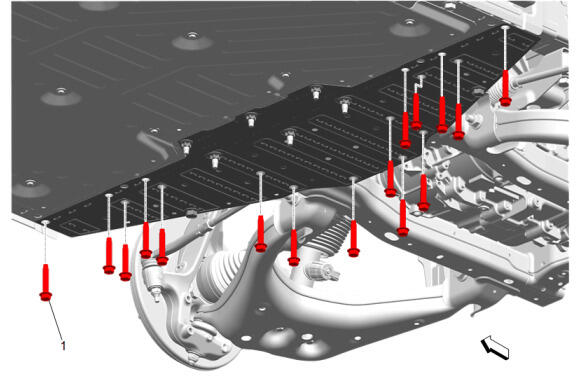

GM5907872
High Voltage Battery Tray Lower Rear Reinforcement Bolts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 High Voltage Battery Tray Reinforcement Bolt [16x] - - 160 N.m (118 lb ft) High Voltage Battery Tray Lower Rear Reinforcement Replacement

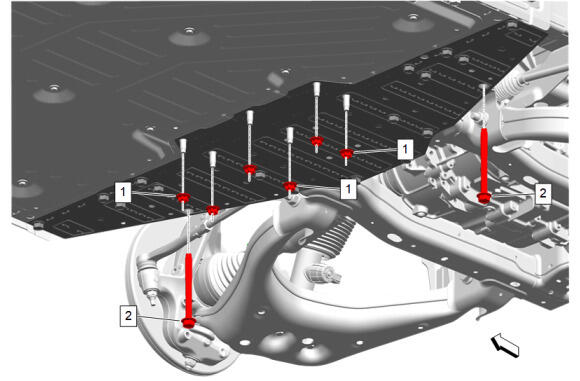

GM5907873
High Voltage Battery Tray Lower Rear Reinforcement Bolts and Nuts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 High Voltage Battery Tray Reinforcement Nut [6x] - - 100 N.m (74 lb ft) High Voltage Battery Tray Lower Rear Reinforcement Replacement
2 High Voltage Battery Tray Reinforcement Bolt [2x] - - 240 N.m (177 lb ft) High Voltage Battery Tray Lower Rear Reinforcement Replacement

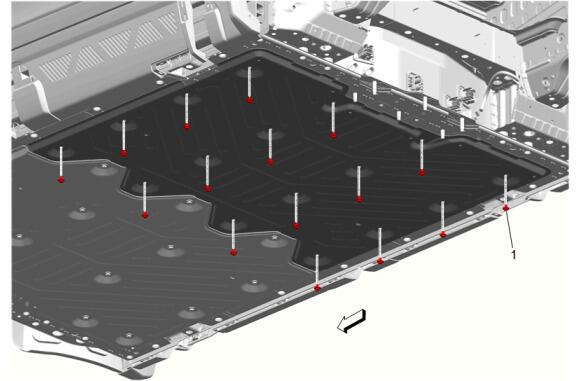

GM5906806
High Voltage Battery Tray Rear Skid Shield

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 High Voltage Battery Tray Skid Shield Bolt [16x] - - 22 N.m (16 lb ft) High Voltage Battery Tray Skid Rear Shield Replacement

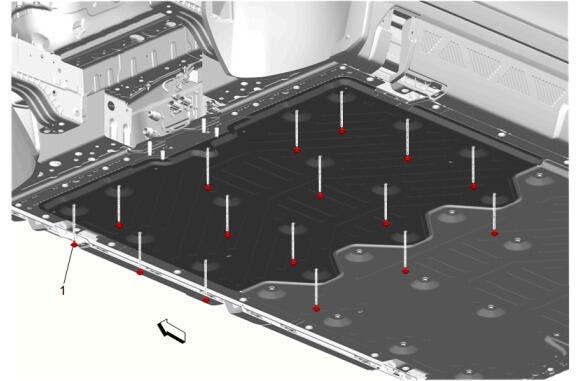

GM5906801
High Voltage Battery Tray Skid Shield

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 High Voltage Battery Tray Skid Shield Bolt [16x] - - 22 N.m (16 lb ft) High Voltage Battery Tray Skid Shield Replacement

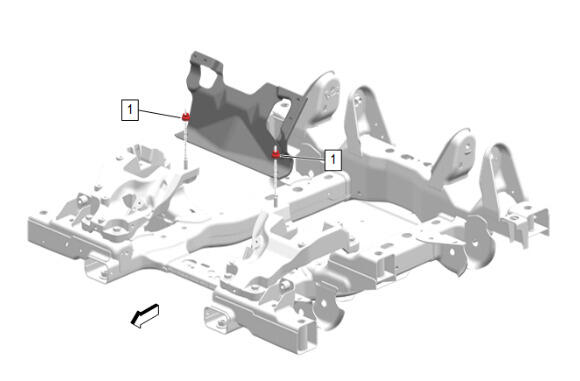

GM5903823
Power Electric Carrier Frame

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Power Electric Carrier Frame Nut [2x] - - 58 N.m (43 lb ft) Power Electric Carrier Frame Replacement

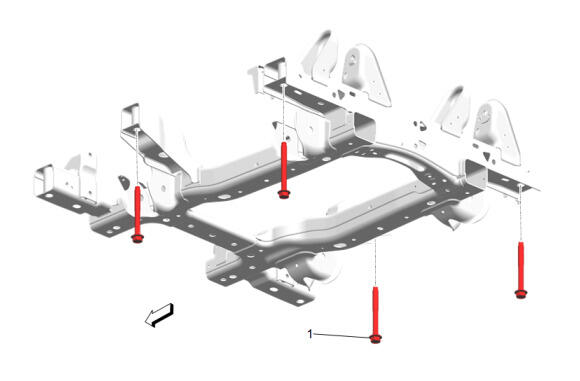

GM5903224
Rear Suspension Cradle Bolts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Cradle Bolt [4x] - - First Pass: 240 N.m (177 lb ft)
Final Pass: 30-45 degrees		 Rear Suspension Cradle Removal and Installation

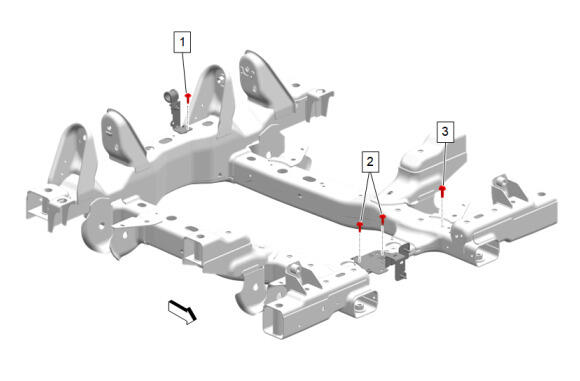

GM5903577
Rear Suspension Cradle Bracket Bolts and Ground Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Power Inverter Module Bracket Bolt - - 9 N.m (80 lb in) Rear Suspension Cradle Replacement
2 Underbody Camera Bracket Bolt [2x] - - 9 N.m (80 lb in) Rear Suspension Cradle Replacement
3 Chassis Rear Wiring Harness Ground Bolt - - 22 N.m (16 lb ft) Rear Suspension Cradle Replacement

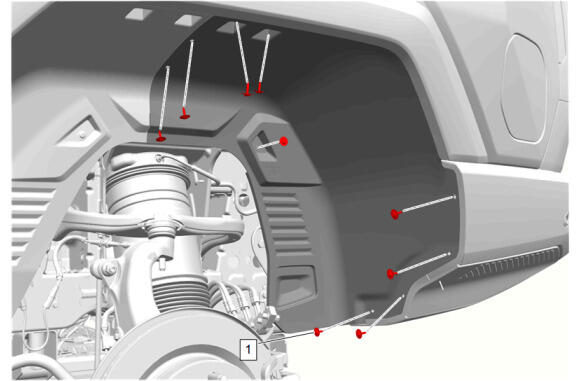

GM5810323
Rear Wheelhouse Panel Rear Liner

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Wheelhouse Liner Bolt [9x] - - 2.5 N.m (22 lb in) Rear Wheelhouse Panel Rear Liner Replacement

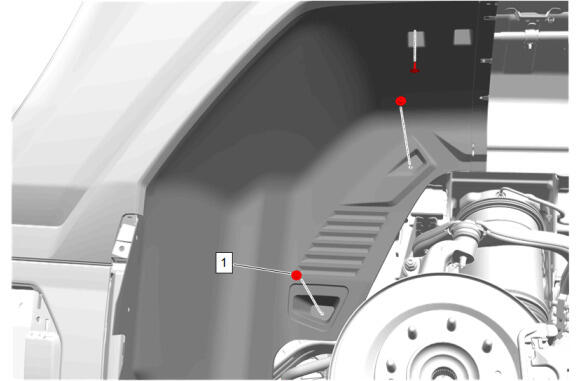

GM5810334
Rear Wheelhouse Liner

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Wheelhouse Liner Bolt [3x] - - 2.5 N.m (22 lb in) Rear Wheelhouse Liner Replacement

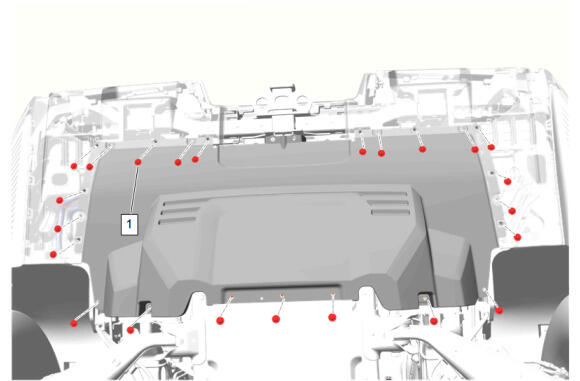

GM5834743
Underbody Rear Air Rear Deflector

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Rear Air Deflector Bolt [23x] - - 2.5 N.m (22 lb in) Underbody Rear Air Rear Deflector Replacement

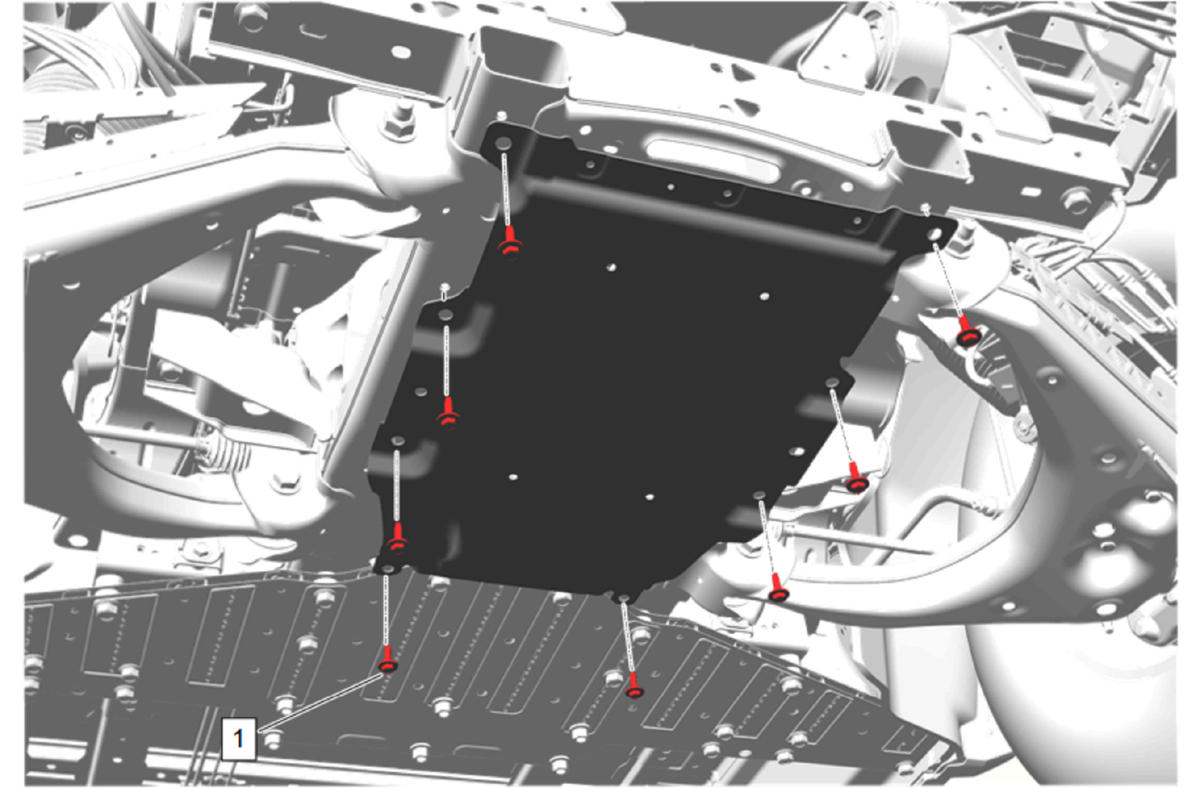

GM5865209
Underbody Skid Rear Shield

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Skid Rear Shield Bolt [8x] - - 22 N.m (16 lb ft) Underbody Skid Rear Shield Replacement

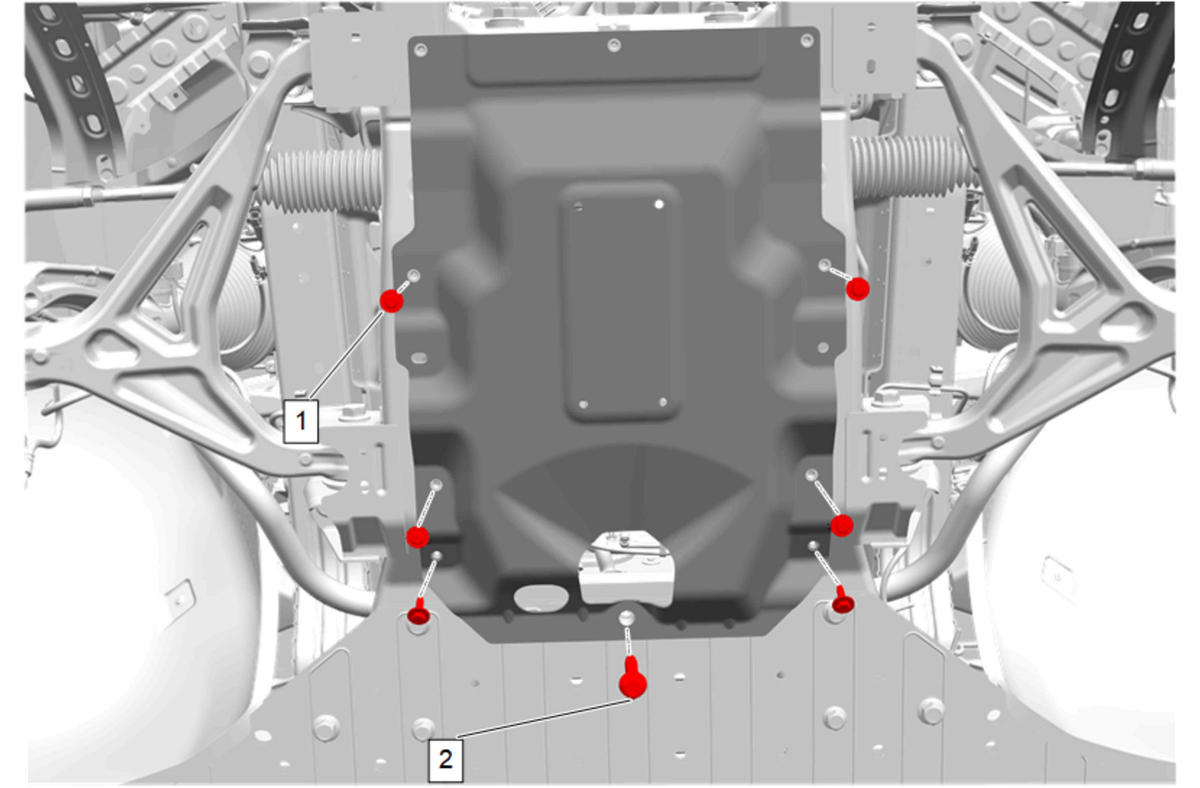

GM5810318
Underbody Skid Shield

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Skid Rear Shield Bolt [6x] - - 22 N.m (16 lb ft) Underbody Skid Shield Replacement
2 High Voltage Battery Tray Reinforcement Bolt - - 160 N.m (118 lb ft) Underbody Skid Shield Replacement

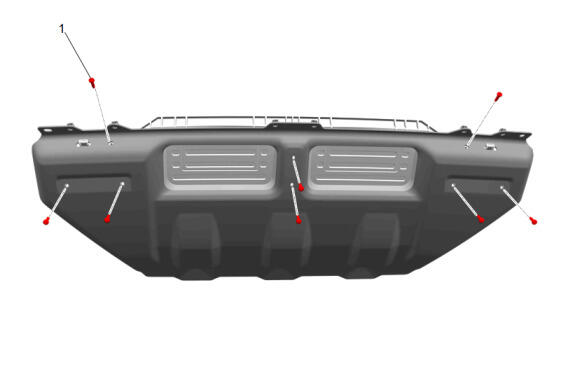

GM5813318
Underbody Splash Shield Bolts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Splash Shield Bolt [8x] - - 9 N.m (80 lb in) Underbody Splash Shield Replacement

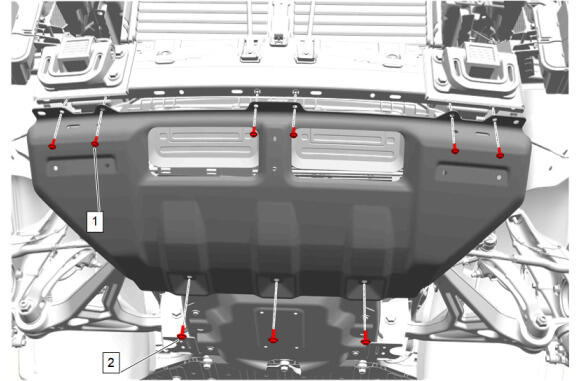

GM5830160
Underbody Splash Shield Upper and Lower Bolts

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Splash Shield Bolt- Upper [6x] - - 9 N.m (80 lb in) Underbody Splash Shield Replacement
2 Underbody Splash Shield Bolt- Lower [3x] - - 22 N.m (16 lb ft) Underbody Splash Shield Replacement
